Assortments Available:

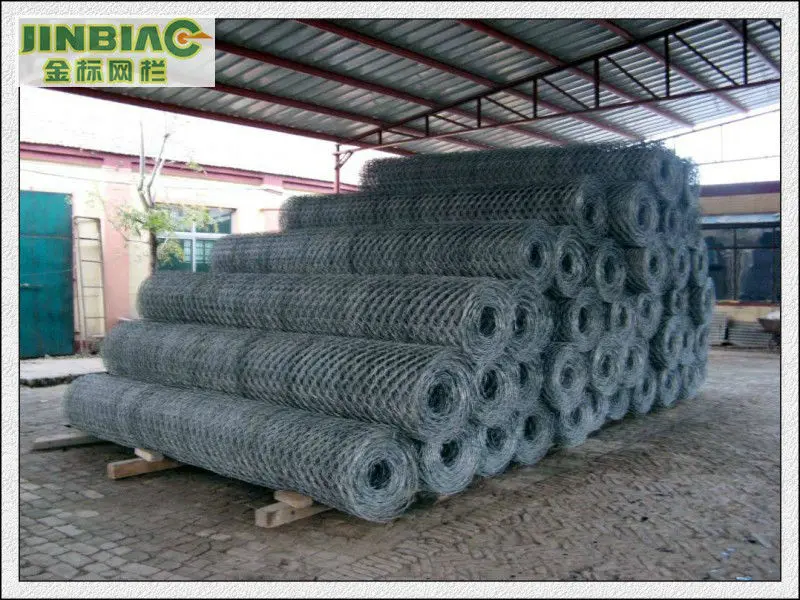

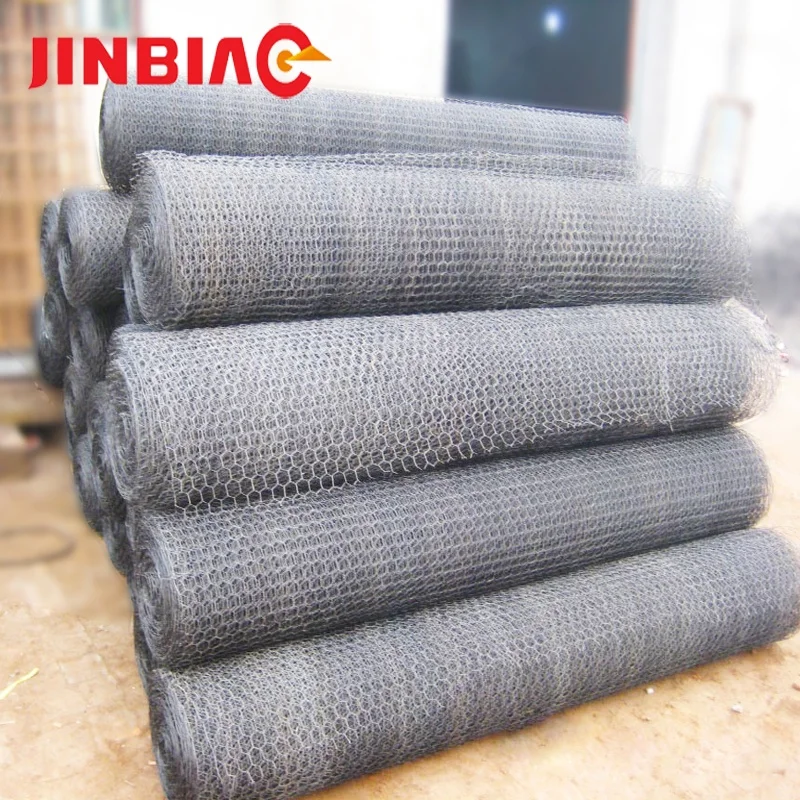

Hexagonal Wire Netting Electro Galvanized before Weaving
Hexagonal Wire Netting Electro Galvanized After Weaving
Hexagonal Wire Netting Hot Dipped Galvanized before Weaving
Hexagonal Wire Netting Hot Dipped Galvanized after Weaving

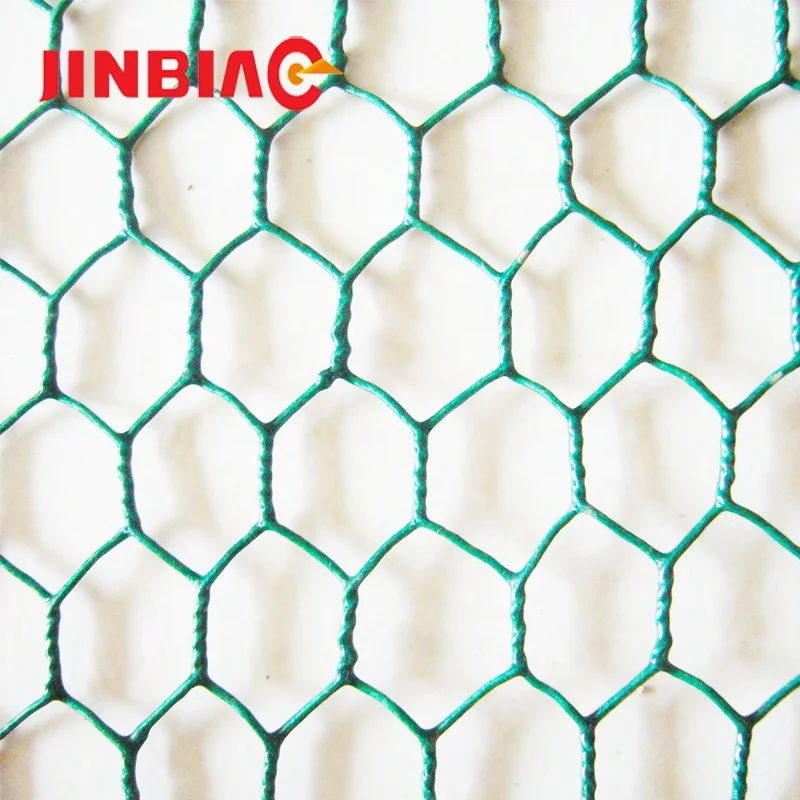

Hexagonal Wire Netting PVC Coated Before or After Weaving

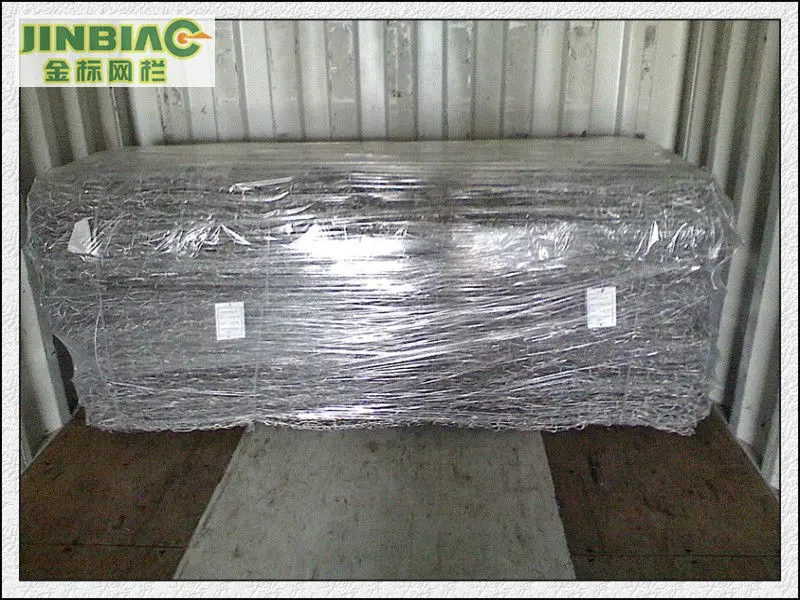

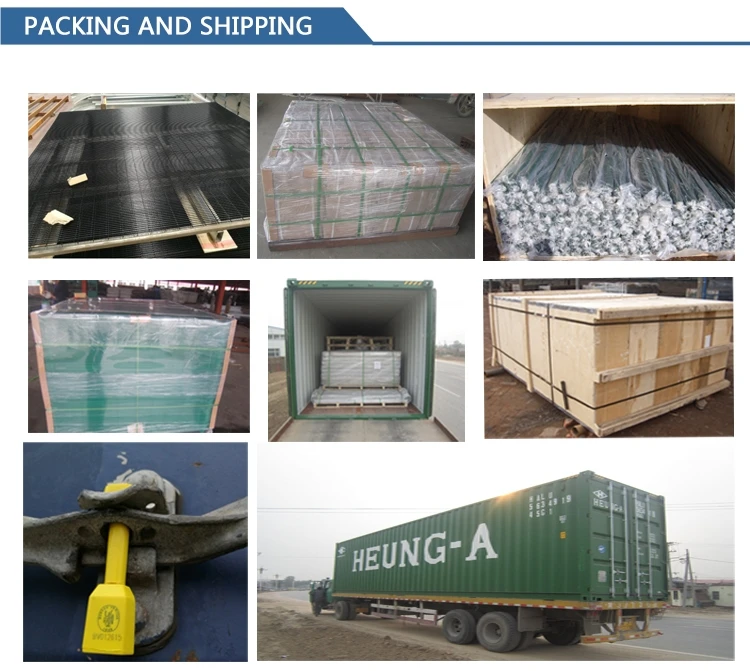

Packing:

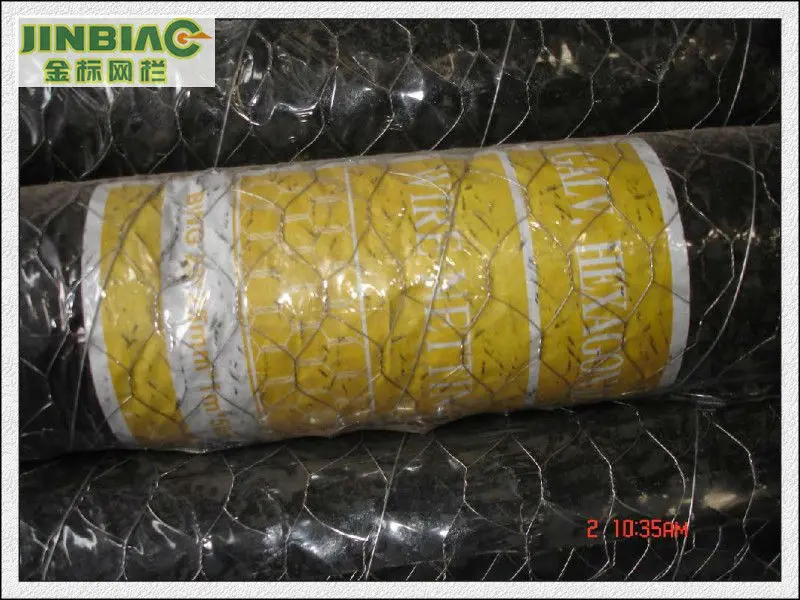

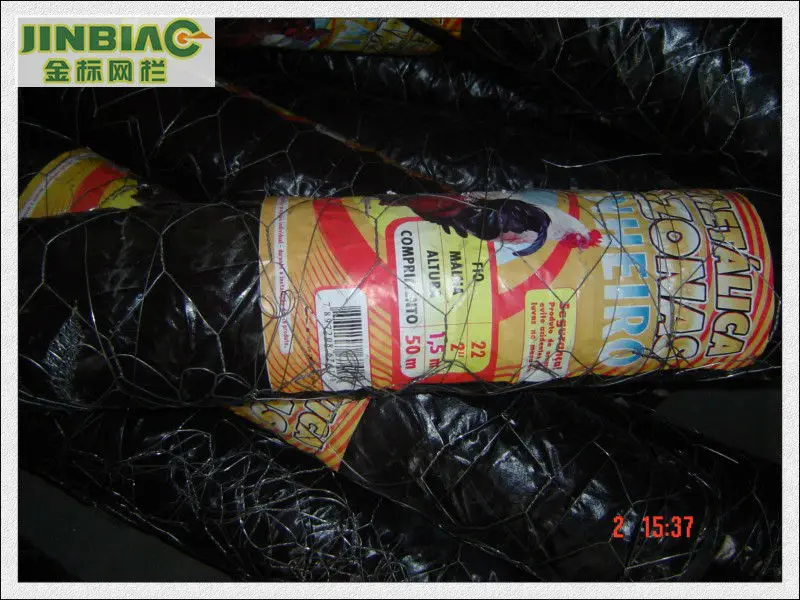

shrink film+ label (customer’s logo is ok )
water-proof paper+ shrink film+ label
water-proof paper+ shrink film+label, then incardboard carton

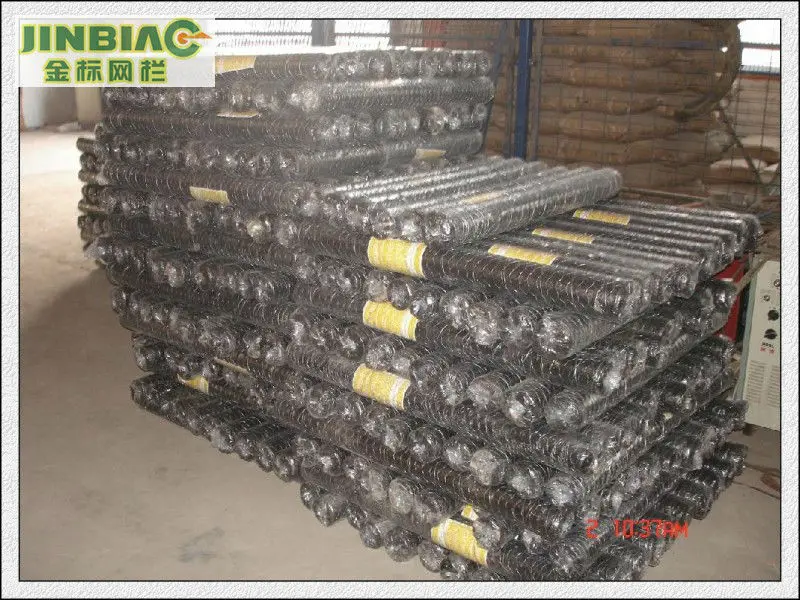

water-proof paper+ shrink film+label, then in pallet.
We can pack as customers’ specific requirements.
Applications:
Structural purposes , Heat insulation (ceilings, boilers..)
Pipe wrapping(petrolium) ,Isolation purposes ,
Indicator & protection for underground cables and pipes ,Windows Protection
Light fencing applications ,Fishing ,Poultry farms ,Sugar industry
Rubber industry , rockwool blanket industry.

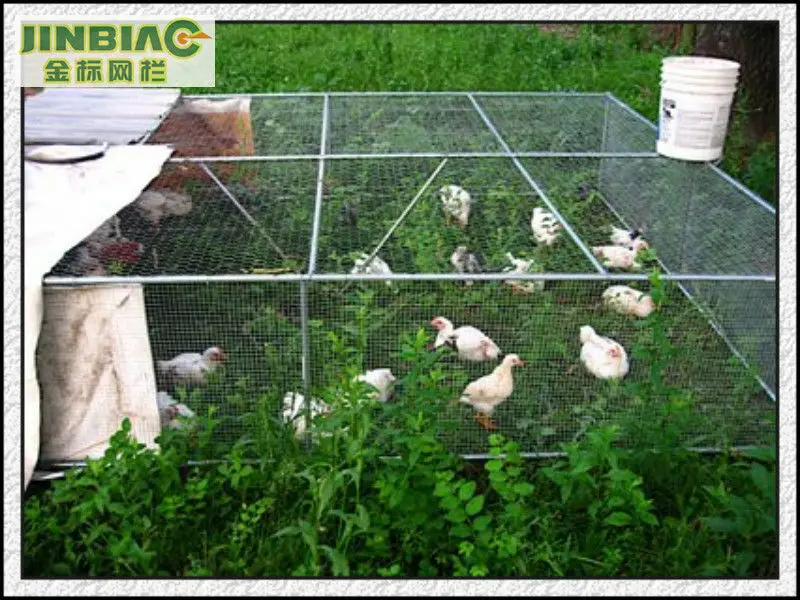

Poultry & animal housing, Crop protection. Fruit cages, Garden Protection,
Rabbit Control ,Stucco in construction, reinforcement in road.

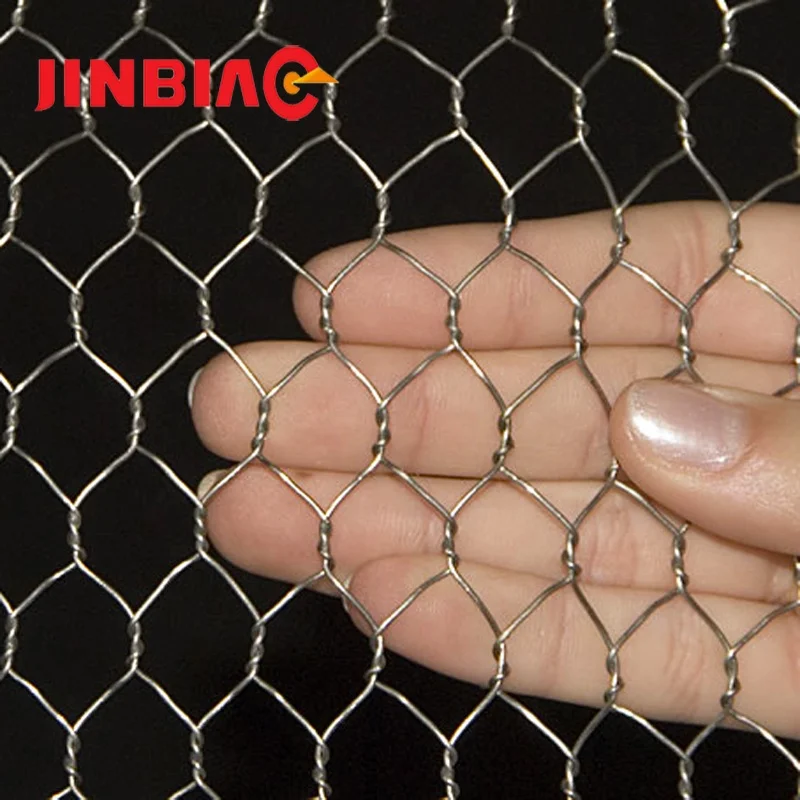

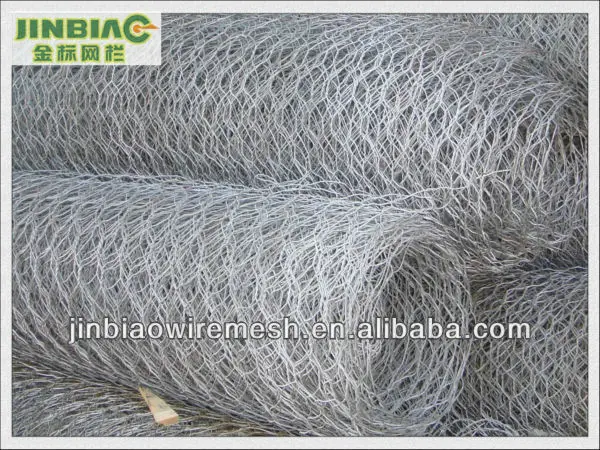

hexagonal wire mesh
chicken mesh
surface treatment:galvanized/pvc
mesh size:1/2",3/4",3/8",5/8",1",1-1/4",
1-1/2",2" 3",4",5",7-1/2",10"
material: high quality low carbon steel wire,
stainless steel wire
weaving and characteristic: reverse twisted,galvanized after weaving or galvanized before weaving,
its divided to electroplate galvanized,hot-dipped,plastic-coating,stainless steel,
PVC coating,etc.
Used:used widely in building,oil,chemical breed,plant protect,food processing reinforce,guard and heat keeping ,
making net stone cage, insulated net wall borler cover,poutly,etc.
| Galvanized hex. wire netting in normal twist (width of 0.5M-2.0M) | ||
| Mesh | Wire Gauge (BWG) | |
| Inch | mm | |
| 3/8" | 10mm | 27,26,25,24,23,22,21 |
| 1/2" | 13mm | 25,24,23,22,21,20, |
| 5/8" | 16mm | 27,26,25,24,23,22 |
| 3/4" | 20mm | 25,24,23,22,21,20,19 |
| 1" | 25mm | 25,24,23,22,21,20,19,18 |
| 1-1/4" | 32mm | 22,21,20,19,18 |
| 1-1/2" | 40mm | 22,21,20,19,18,17 |
| 2" | 50mm | 22,21,20,19,18,17,16,15,14 |
| 3" | 75mm | 21,20,19,18,17,16,15,14 |
| 4" | 100mm | 17,16,15,14 |
| Galvanized hex. wire netting in reverse twist (width of 0.5M-2.0M) | ||||
| Mesh | Wire Gauge(BWG) | Reinforcement | ||
| Inch | mm | (BWG) | Width(ft) | Strand |
| 1" | 25mm | 22,21,20,18 | 2' | 1 |
| 1-1/4" | 32mm | 22,21,20,18 | 3' | 2 |
| 1-1/2" | 40mm | 20,19,18 | 4' | 3 |
| 2" | 50mm | 20,19,18 | 5' | 4 |
| 3" | 75mm | 20,19,18 | 6' | 5 |

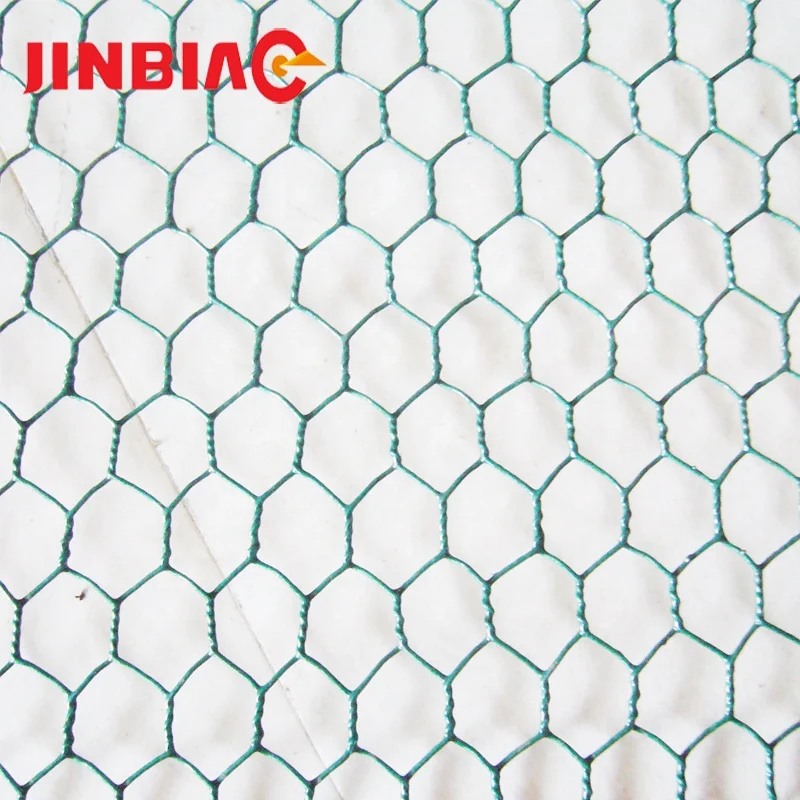

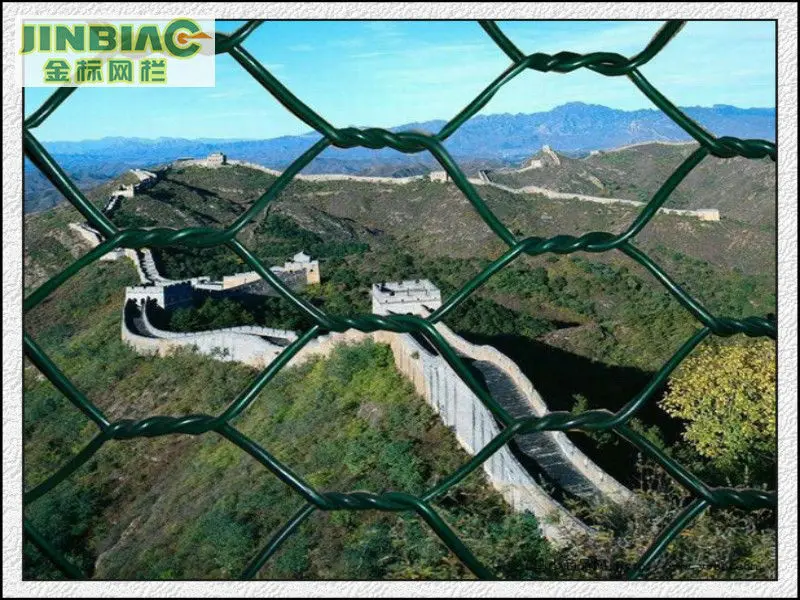

| Hex. wire netting PVC-coated (width of 0.5M-2.0M) | ||
| Mesh |
Wire Dia(mm) |
|
| Inch | mm | |
| 1/2" | 13mm | 0.9mm,0.1mm |
| 1" | 25mm | 1.0mm,1.2mm,1.4mm |
| 1-1/2" | 40mm | 1.0mm,1.2mm,1.4mm,1.6mm |
| 2" | 50mm | 1.0mm,1.2mm,1.4mm,1.6mm |
