Discover how our 3m green perforated acoustic barrier helped an Indonesian gas station reduce equipment and traffic noise, improve community relations, and comply with environmental regulations.

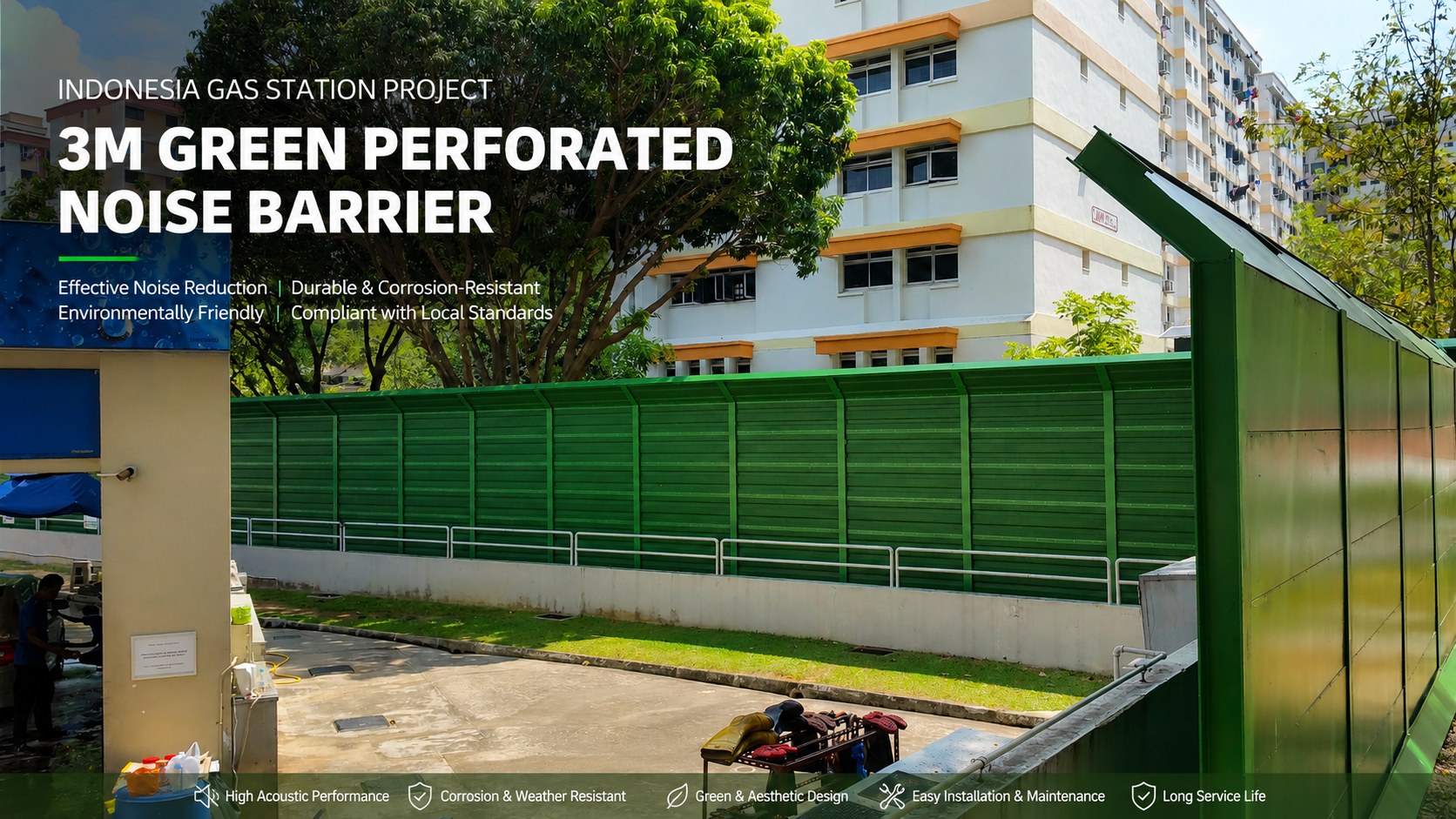

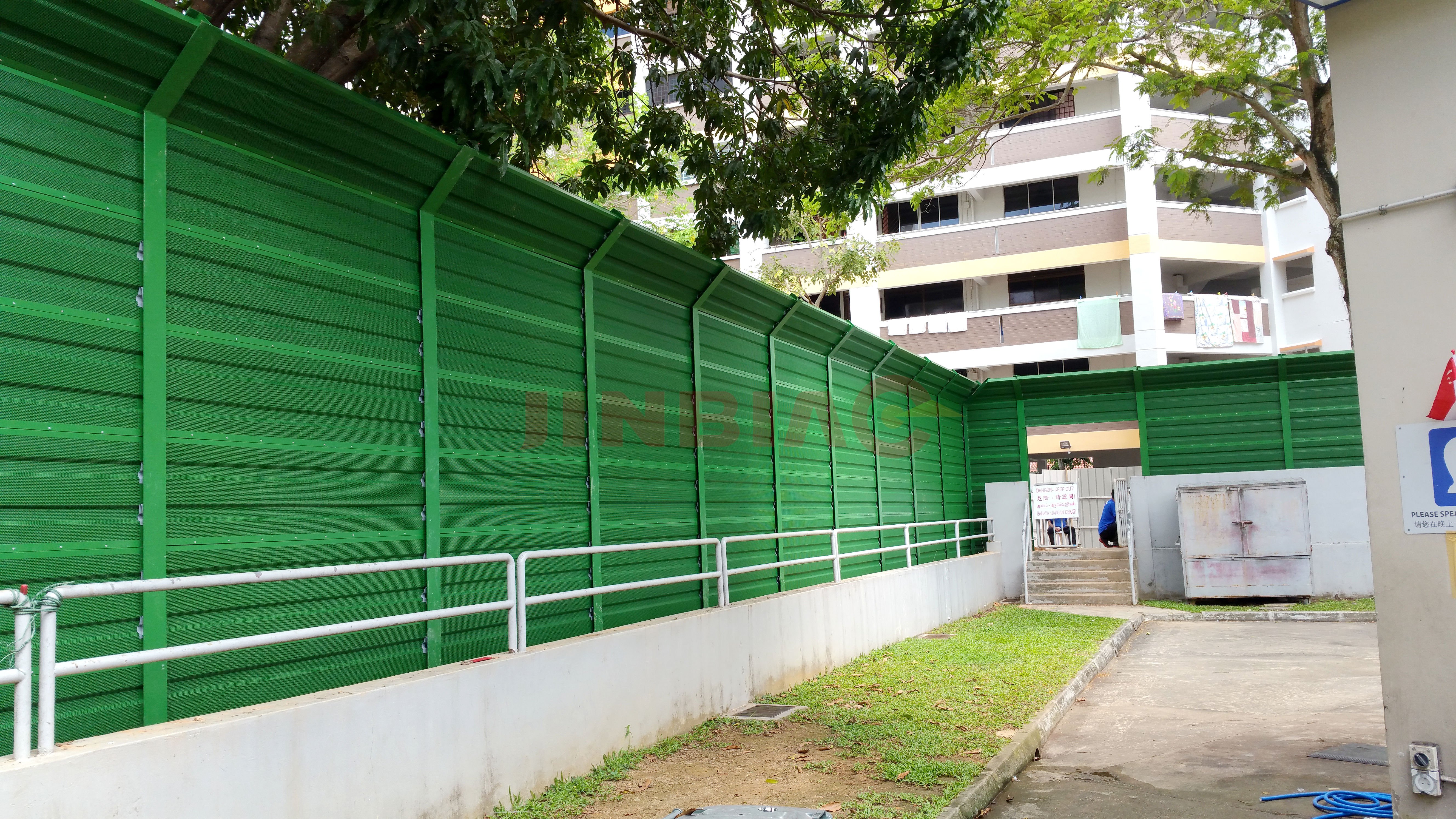

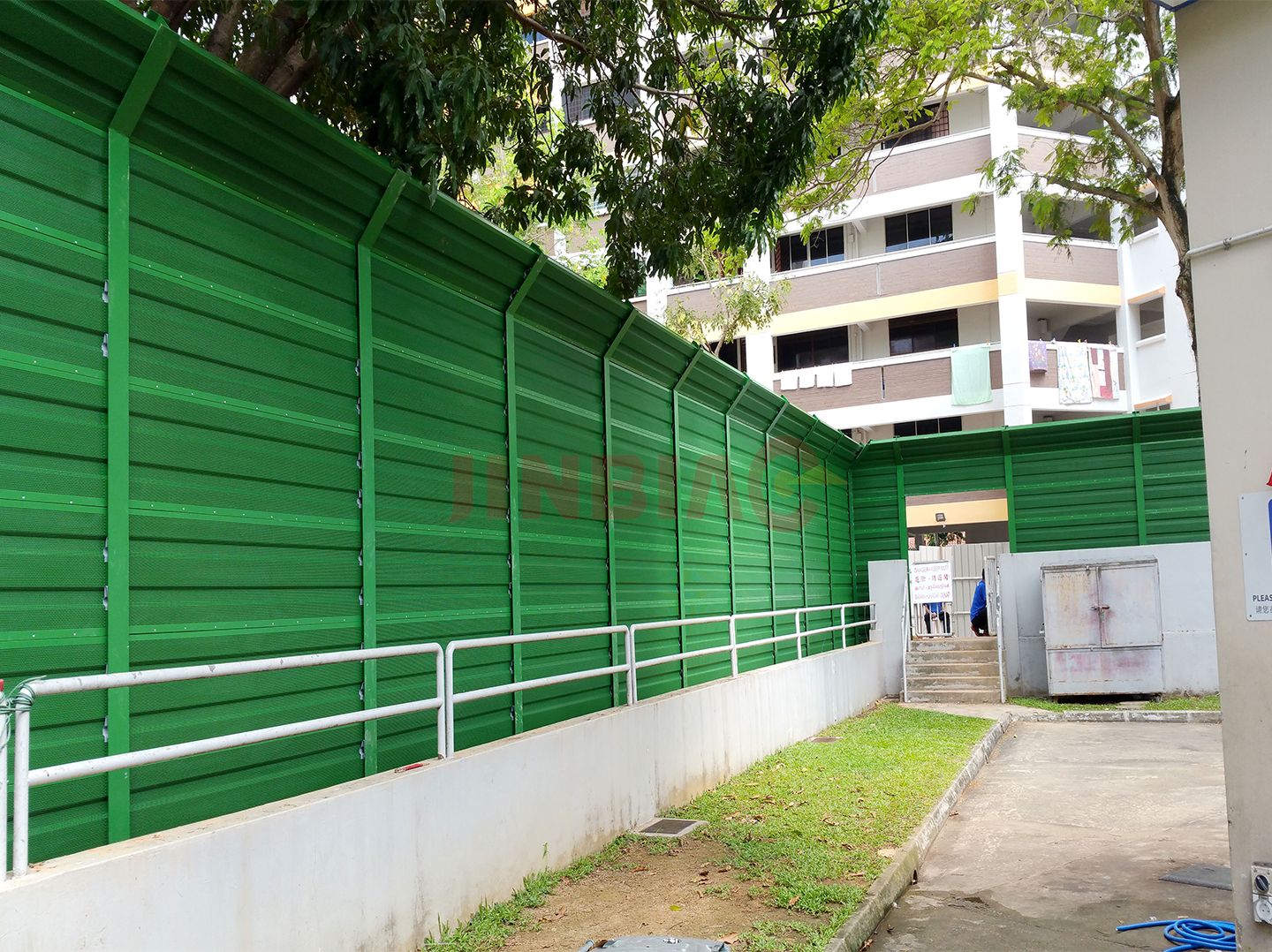

Project Overview
This project is located at a medium-sized gas station alongside a major urban roadway in Indonesia. Residential communities are situated close to the station, where the combined noise generated by fueling equipment and passing traffic had become a concern for nearby residents. After on-site inspections and professional acoustic assessments, the project owner decided to install a noise barrier along the side of the gas station facing the residential area to effectively reduce noise transmission.
Project Specifications
Project Location: Indonesia
Application: Gas Station Noise Control
Noise Barrier Height: 3 meters
Barrier Type: Green Perforated Acoustic Noise Barrier
Installation Layout: L-shaped configuration along the boundaries adjacent to the residential area
Noise Reduction Objective: Meet Indonesian environmental noise standards while significantly reducing noise impact on nearby sensitive areas.
Product Features
1. Perforated Acoustic Design for Superior Noise Reduction
The green perforated noise barrier used in this project incorporates advanced micro-perforated sound absorption technology. The panels are manufactured from galvanized steel or aluminum sheets with thousands of evenly distributed perforations.
When sound waves strike the barrier surface, they pass through the micro-perforations and enter the sound-absorbing chamber. High-performance acoustic insulation material inside the panel absorbs the sound energy, converting it into heat and effectively dissipating it. Meanwhile, the sealed rear panel and integrated barrier structure block sound transmission, creating a significant sound pressure difference between the two sides of the barrier and achieving excellent noise reduction performance.
2. Environmentally Friendly Green Appearance
The barrier is finished with a durable green powder coating, with colors customizable according to standard RAL color codes.
The green finish blends naturally with Indonesia's tropical vegetation and surrounding landscape, avoiding the harsh visual appearance often associated with conventional gray or metallic noise barriers. In addition, the green design aligns well with the environmentally friendly image promoted by modern gas stations, enhancing the overall appearance and public perception of the facility.
3. Scientifically Designed 3-Meter Height
The effectiveness of a noise barrier is closely related to its height and its position relative to the noise source and the receiver. Following detailed site surveys and professional acoustic calculations, the barrier height was determined to be 3 meters.
This height effectively blocks the direct transmission path of noise generated by fueling equipment and vehicle movements, creating an acoustic shadow zone behind the barrier while maintaining sufficient openness, natural lighting, and the overall visual appearance of the gas station.
Considering Indonesia's tropical climate, all steel components are protected with high-quality powder coating, providing excellent resistance to corrosion, high humidity, intense sunlight, and long-term outdoor exposure, ensuring a long service life.
4. Efficient Modular Installation
The noise barrier adopts a modular structural design for fast and efficient installation.
H-shaped steel columns are installed at 2-meter intervals and anchored into reinforced concrete foundations. Standard acoustic panels are inserted between the H-beam posts and securely fastened with specialized fixing components. This modular system not only provides excellent structural stability but also allows convenient installation, maintenance, and future panel replacement when required.
After installation, on-site acoustic measurements confirmed that the boundary noise level of the gas station was significantly reduced and fully complied with Indonesian environmental noise regulations. The surrounding residents responded positively to the improved acoustic environment, and the project successfully enhanced the harmony between the gas station's operation and the neighboring community.
Conclusion
This project demonstrates the outstanding performance of green perforated acoustic noise barriers in gas station noise control applications in Indonesia. The scientifically designed 3-meter barrier height achieved an excellent balance between noise reduction efficiency, visual appearance, and cost-effectiveness.
The advanced micro-perforated sound absorption technology effectively mitigates the complex combination of equipment and traffic noise commonly found at gas stations, while the green exterior integrates naturally into the surrounding environment. This project provides a reliable and sustainable noise control solution that improves environmental quality while supporting long-term operational requirements.
