Noise Absorbing Fence
JINBIAO Group offers the supply and installation of highly absorbent, light-weight, aluminium or galvanized sound barriers, designed for outdoor noise mitigation. If you are in need of a proven, highly-effective outdoor noise barrier, look no further. JINBIAO Group has the experience, expertise, equipment and plant to deliver noise barriers in a variety of applications.
Railway corridors

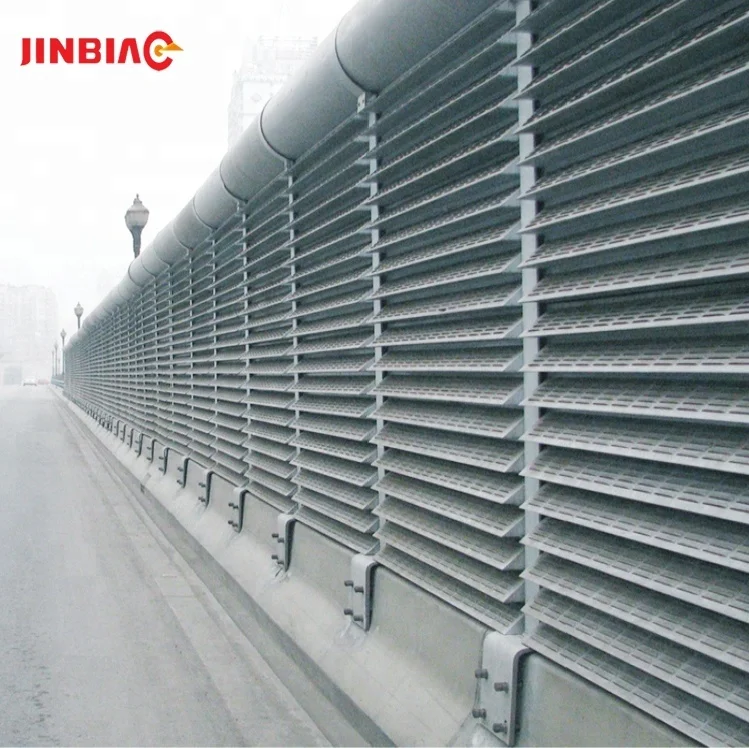

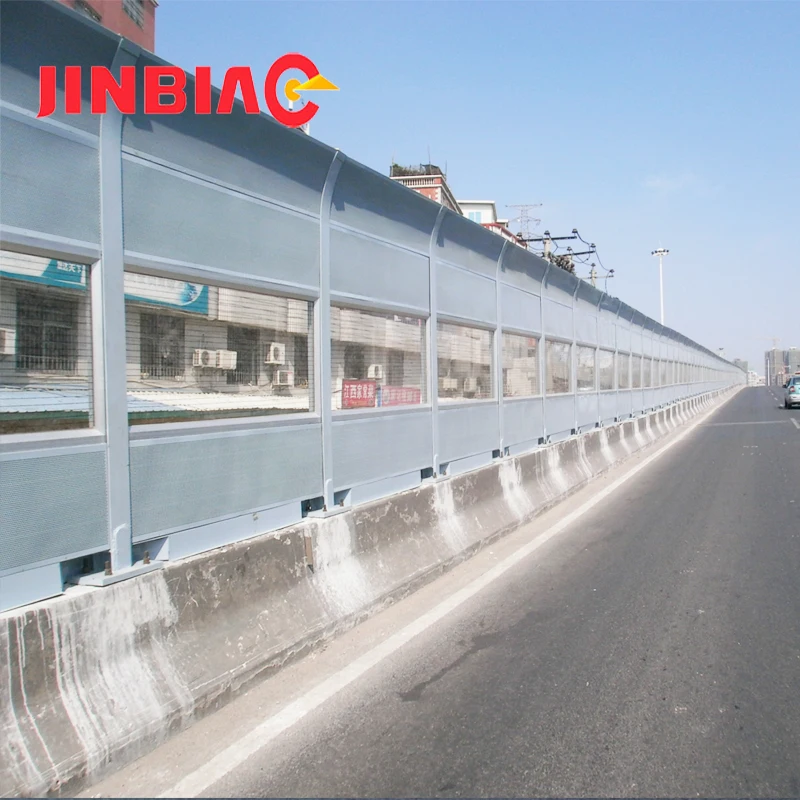

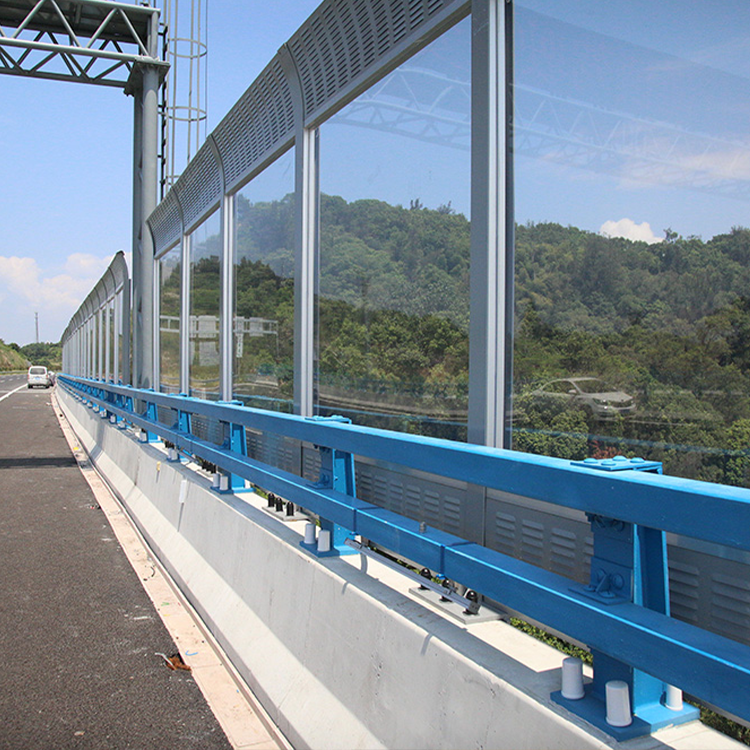

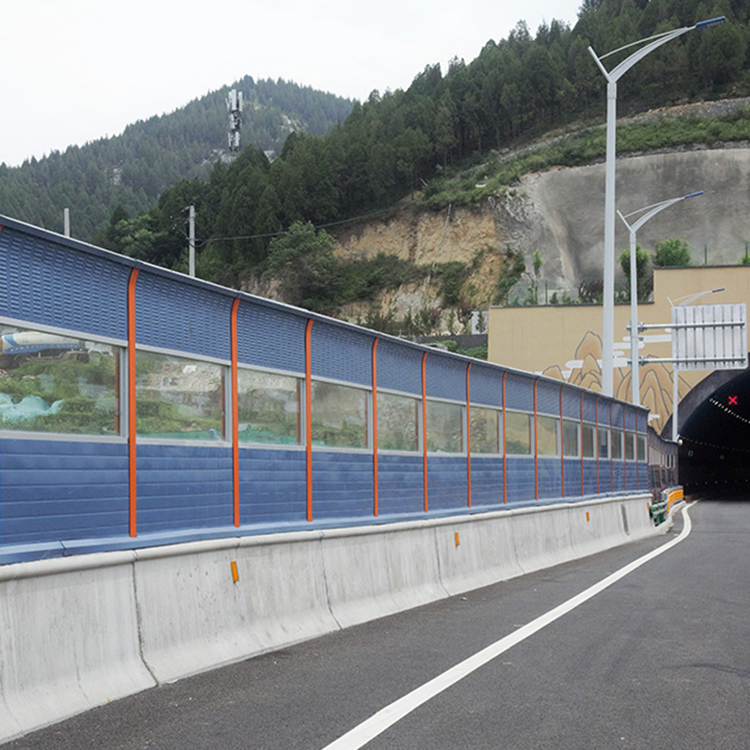

Major roadways

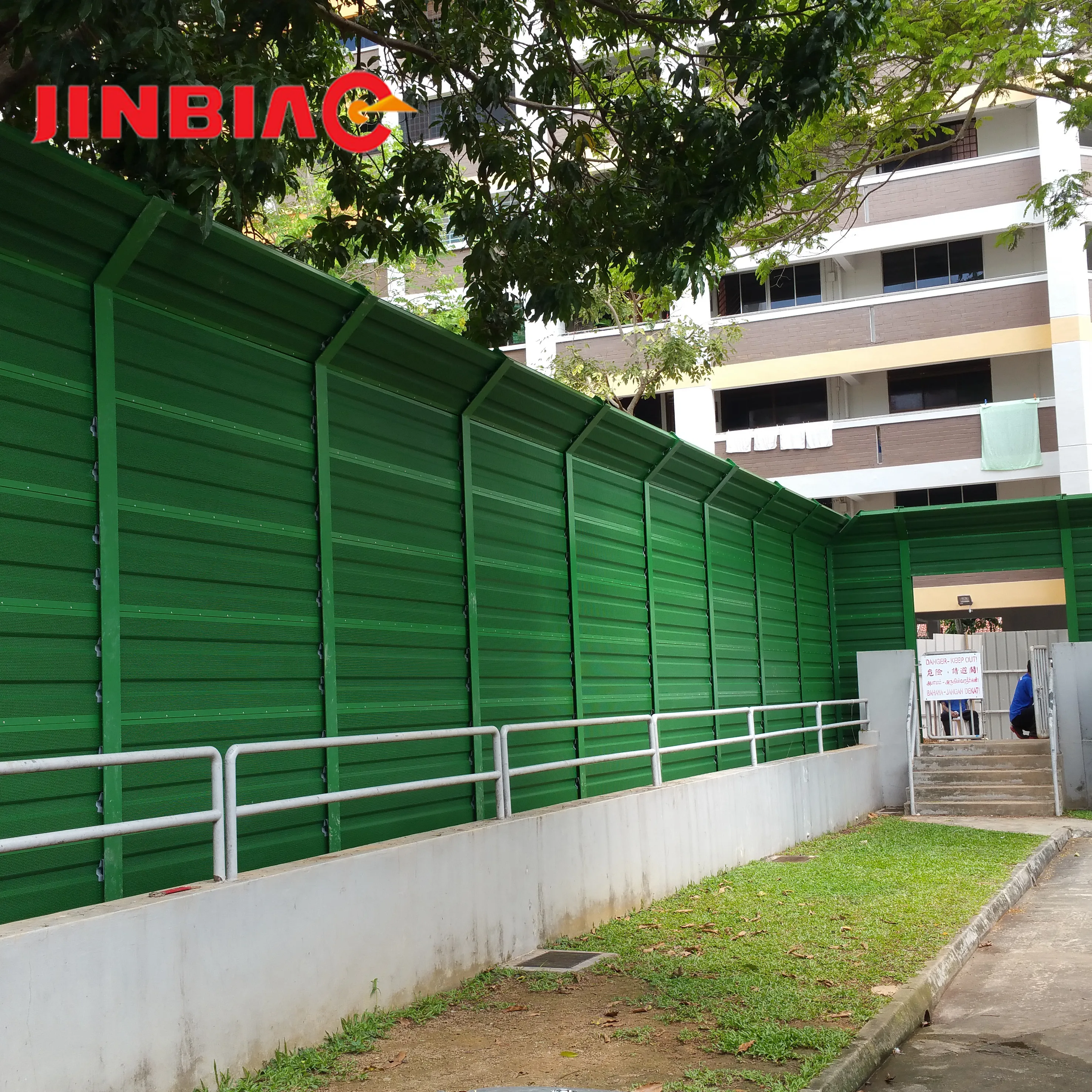

Residential
Industrial

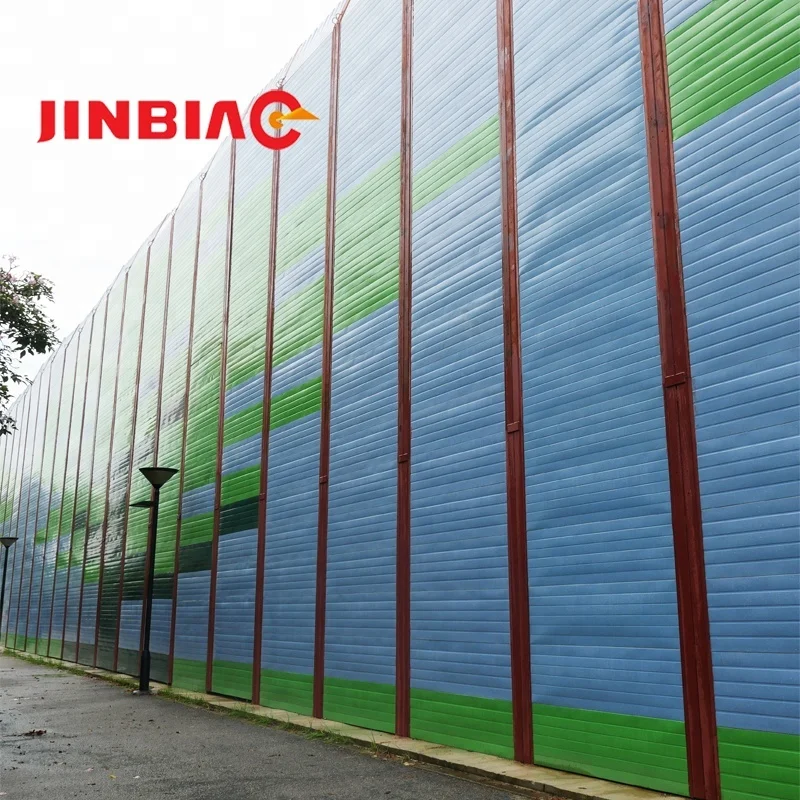

Artistic and unique designs for high traffic areas.
1. Noise Absorbing Fence Material:
1. Metal type: galvanized sheet, aluminum sheet.

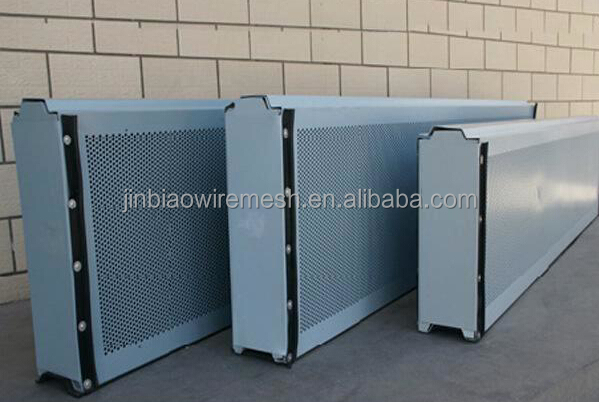

Appearance: shutter type, punching type.
Colors: clear, lake blue, green, blue, opal, brown, silvery gray, red (Other color can be ordered according to you request

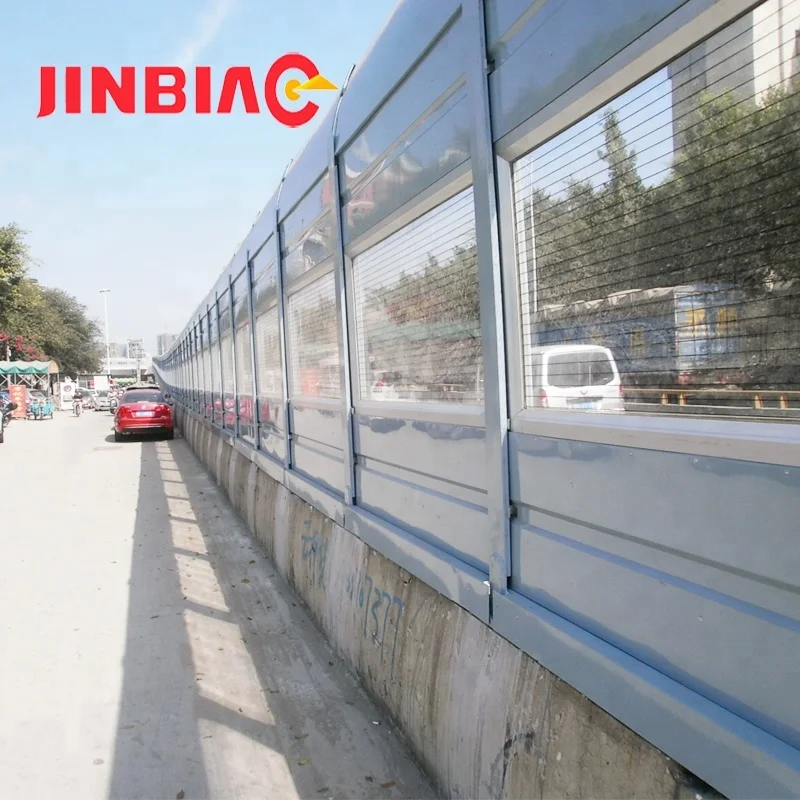

2. Transparent sheet: PC, PMMA
2. Noise Absorbing Fence Specifications:
METAL SHEET | |||||||
PANEL HEIGHT |
PANEL LEHGTH |
SHEET THICKNESS |
SHEET THICKNESS |
PANEL TYPE |
|||
|
0.5m 1.0m |
2.0m 2.5m 3.0m 4.0m |
80mm 100mm 120mm |
1.0-1.5mm |
shutter or perforated |
|||
PC/PMMA SHEET | |||||||
|
PANEL HEIGHT |
HEIGHT |
SHEET THINCKNESS |
LIGHT TRANSMITTANCE |
||||
|
0.5m 1.0m 1.5m |
2.0m 2.5m 3.0m 4.0m |
80mm 100mm |
≥80% |
||||
NOISE ABSORBING FENCE | |||||||
TOTAL HEIGHT |
LENGTH |
RW |
NRC |
||||
3.0m as standard |
2.0m 2.5m 3.0m 4.0m |
≥30dB |
≥0.84 |
||||
Shippment information: 600-800 square meter per 40ft container
3. Noise absorbing fence commonly used specifications:
Sound barrier fence panel thickness: 80mm, 100mm,120mm
Sound barrier fence size: 2500x500x80mm, 2500x500x100mm, etc.
Sound barrier fence metal plate thickness: 0.5-1.2mm

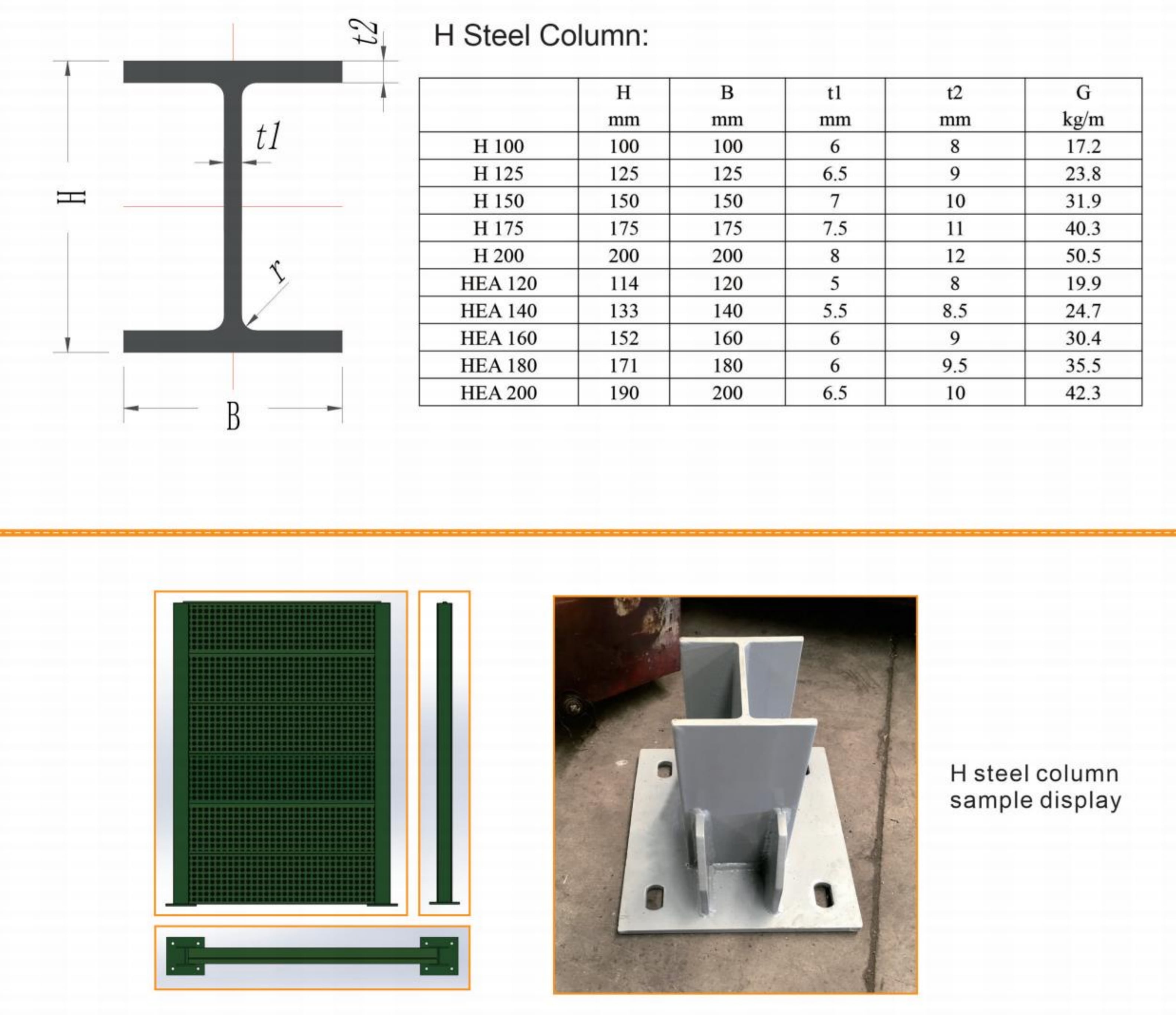

Sound barrier fence H-post: 100x100x6x8mm, 125x125x6.5x9mm, 150x150x7x10mm, 175x175x7.5x11mm.
Sound barrier fence flange plate: 250x250x10, 300x300x10, 350x350x10, 400x400x10mm etc.
4. Noise Absorbing Fence Packaging & Shipping
Packing
1. rubber mat at the bottom of the pallet to avoid the pallet destroyed the panel.
2. metal corners to keep the pallet more strong and wood plate on the panel pallet.
3. the metal plate under the plastic bandage to a pressure for fence panel.
4.or according your request
Shipping

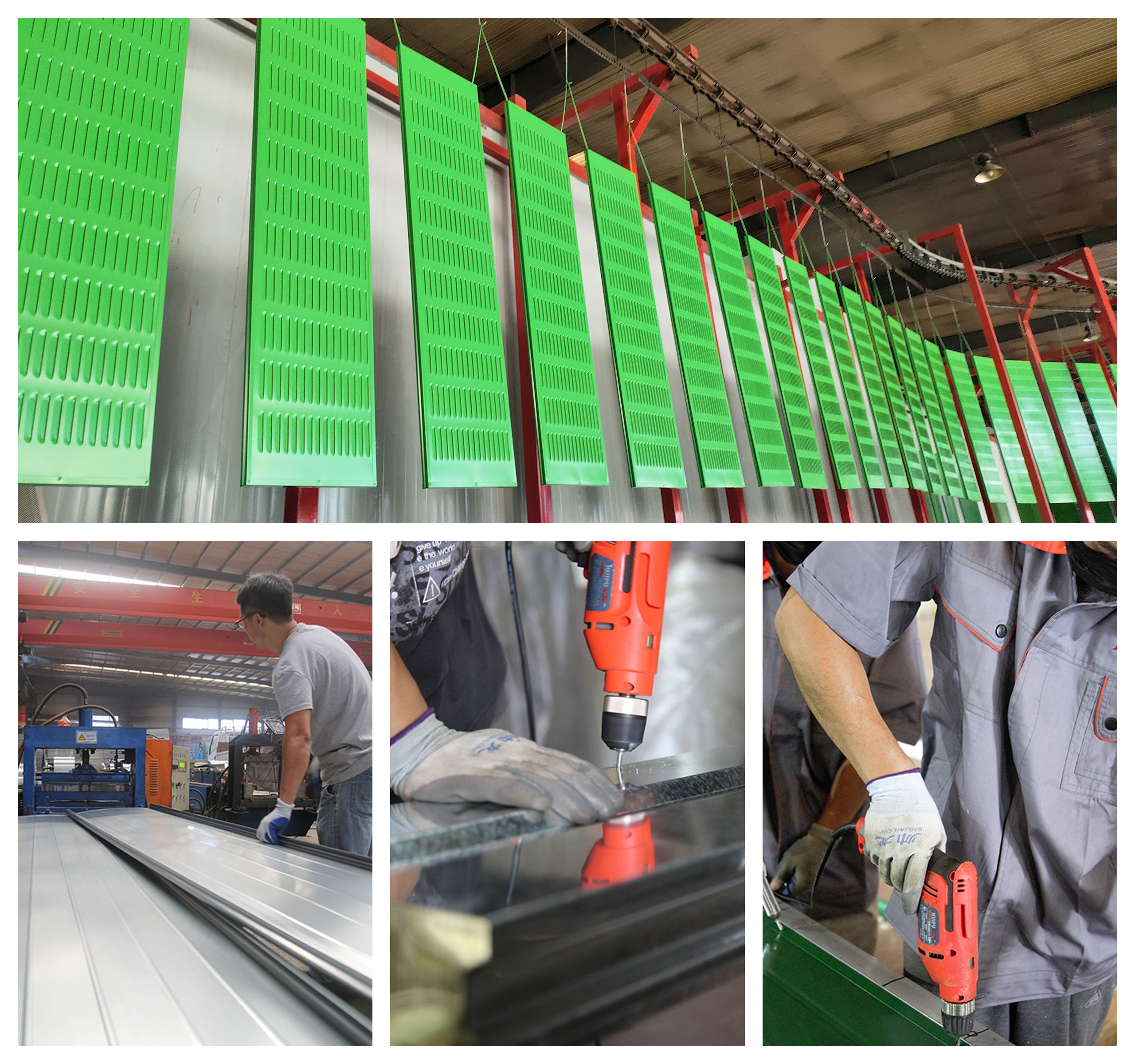

5. Production Line of Noise Absorbing Fence
6. JINBIAO Company
JINBIAO specialises in providing excellent domestic and commercial sound barrier solutions. Sound barrier is not only highly effective due to the extremely strong composite combination it is built from, it’s also economical and easy to install due to its modular design.
There’s nothing worse than living next to a busy road or having noisy neighbours, especially when you have young children. The good news is that with JINBIAO’s sound barrier systems, you can put all that in the past and enjoy a new found serenity!
Now sit back and relax in your peaceful home!
Welcome to contact us for long cooperation.
