Construction Site Fence

Home >  Products >  Mesh Fence >  Construction Site Fence

Sustainable Easily Assembled Portable American Standard Chain Link Temporary Fence with Cross Tube

Products

Product Description
product sustainable easily assembled portable american standard chain link temporary fence with cross tube-1
Product Paramenters
Chain Link Temporary Fence
Height
1800 mm,1900 mm,2000 mm ,2100 mm ,2200 mm ,2300 mm
Length
2100 mm ,2200 mm ,2300 mm ,2400 mm,2500 mm,3000 mm
Frame
25 mm, 32 mm, 40 mm, 42 mm, 48 mm
Infill Mesh(mm)
50*50,60*60, 75*75,50*150, 60*150 ,75*150
Wire Diameter
2.0mm,2.5mm,3.0mm,3.5mm,4.0mm,4.5mm,5.0mm
Finish
Hot Dipped Galvanized
Products Description

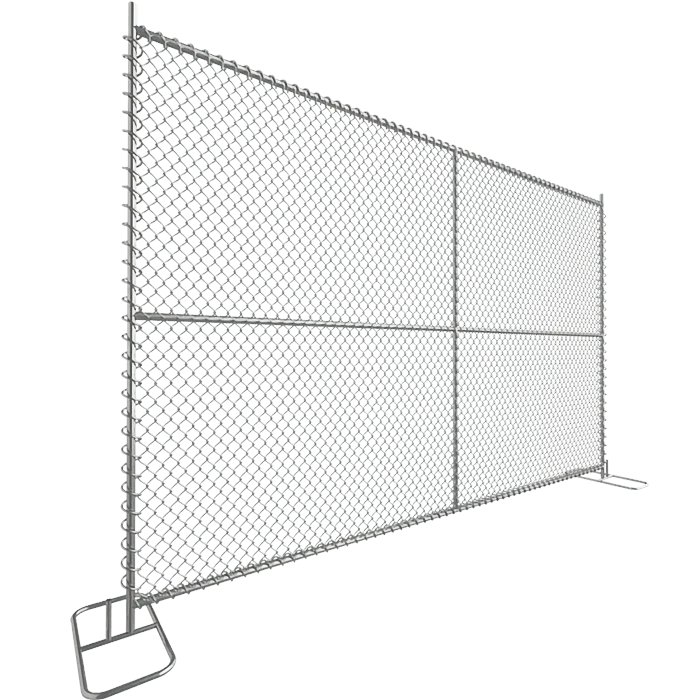

There are two types of chain link panel:
product sustainable easily assembled portable american standard chain link temporary fence with cross tube-2


Type 1: panel all 4 sides are wire laced.
product sustainable easily assembled portable american standard chain link temporary fence with cross tube-3

Type 2: two vertical sides are fixed on frame by flat bars and clamps.

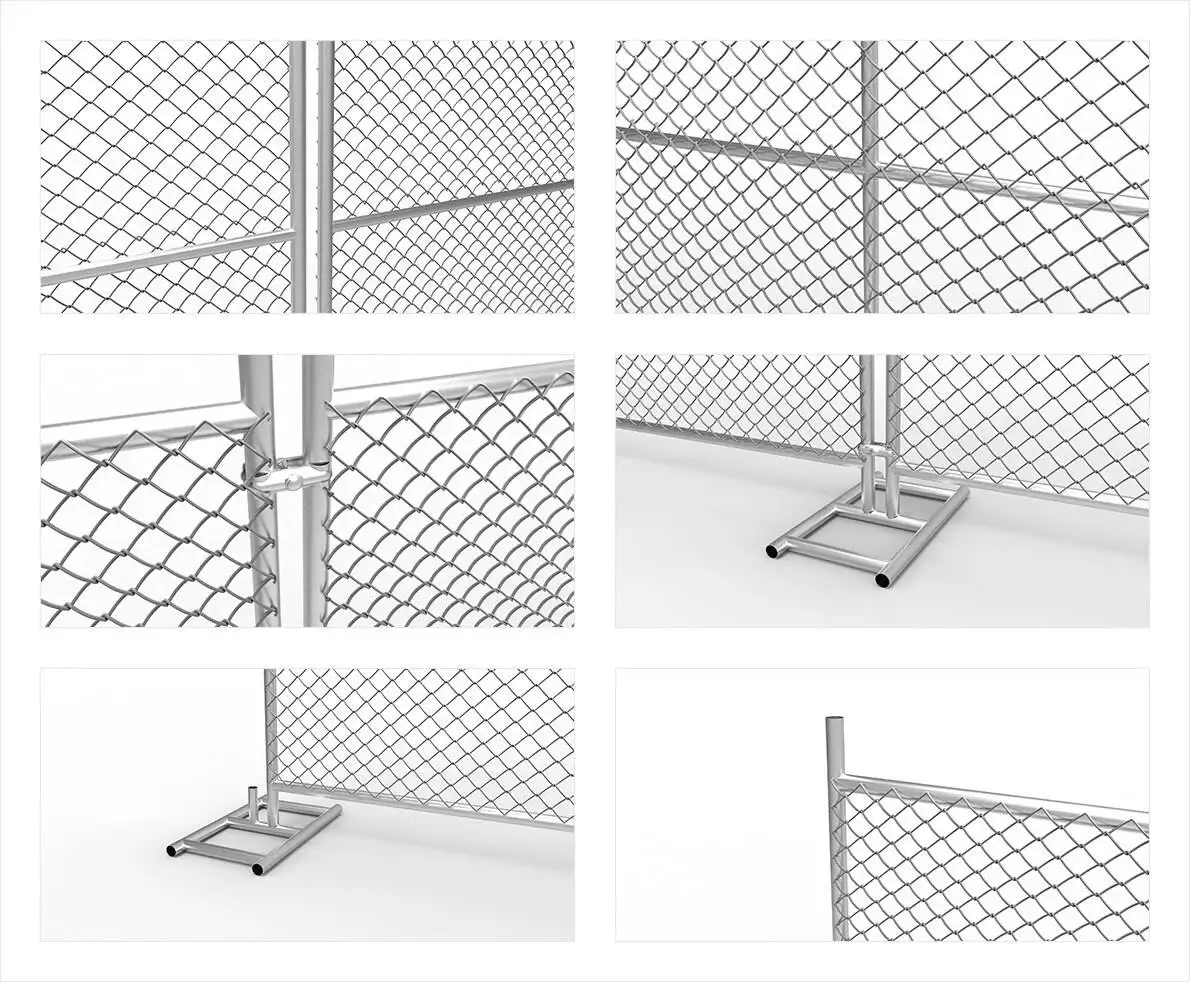

Fence stand/feet:
product sustainable easily assembled portable american standard chain link temporary fence with cross tube-4

Type 1:

Surface treatment:
hot dipped galvanized,hot dipped galvanized
product sustainable easily assembled portable american standard chain link temporary fence with cross tube-5

Type 2:

Surface treatment:
powder coated,hot dipped galvanized
product sustainable easily assembled portable american standard chain link temporary fence with cross tube-6
product sustainable easily assembled portable american standard chain link temporary fence with cross tube-7

Hot dipped galvanized fence Powder coated fence

product sustainable easily assembled portable american standard chain link temporary fence with cross tube-8
product sustainable easily assembled portable american standard chain link temporary fence with cross tube-9
product sustainable easily assembled portable american standard chain link temporary fence with cross tube-10
product sustainable easily assembled portable american standard chain link temporary fence with cross tube-11
About us
Hebei Jinbiao Construction Materials Tech Corp., Ltd was located in Anping county ,Heibei province , it was found in 1990 as a manufacture engaged in the research & development, production, sale and service of wire mesh fence and sound barriers.
In Shijiazhuang, 26 December 2014, the company was listed on the stock exchange, becoming the first locally listed company in the area. Now Jinbiao covers an area of 133,200 square meters ,has a registered capital of 101 million CNY and has developed into a multiple corporate enterprise. Product Quality: Our products have passed ISO9001 certificate of quality management system, CE product certification, and established a long-term cooperation with Acoustic Institutions in Southeast Asia. Besides JINBIAO sets up a special quality inspection team to ensure that all products are well-qualified.
product sustainable easily assembled portable american standard chain link temporary fence with cross tube-12
product sustainable easily assembled portable american standard chain link temporary fence with cross tube-13
product sustainable easily assembled portable american standard chain link temporary fence with cross tube-14
product sustainable easily assembled portable american standard chain link temporary fence with cross tube-15
product sustainable easily assembled portable american standard chain link temporary fence with cross tube-16
product sustainable easily assembled portable american standard chain link temporary fence with cross tube-17
1:Are you a munufacturer or a trading company? We are a munufacturer which has 30 years history.
2:Where is your factory? How to visit it? HEBEI JINBIAO CONSTRCTION MATERIALS TECH CORP.,LTD was established in 1990,which located in Anping county,Hebei.
3:How do we control our products quality? WE have professional quality control workers and quality inspection machine to control the wntire production quality.
