Key Features:
•12.39 kW solar power generation capacity
•Designed for three-vehicle parking coverage
•High-strength steel structure with excellent durability
•Weather-resistant and corrosion-resistant materials
•Suitable for grid-tied, off-grid, or hybrid solar systems
•Optional integration with EV charging stations

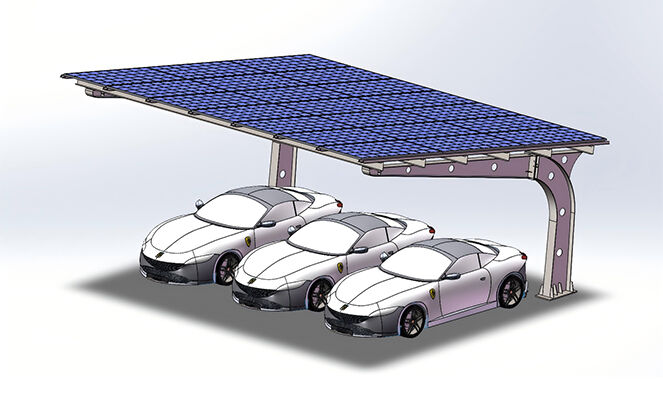

The Three-Car Parking (12.39 kW) Solar Carport System is an efficient and sustainable energy solution that combines parking shelter functionality with solar power generation. Designed to accommodate three vehicles, this solar carport not only provides reliable protection from sun, rain, and snow but also converts sunlight into clean electricity, helping businesses and property owners reduce energy costs and carbon emissions.
The system features a robust steel engineered for high strength, corrosion resistance, and long-term outdoor durability. The roof is equipped with high-efficiency photovoltaic modules with a total installed capacity of approximately 12.39 kW, enabling stable and reliable power generation.
The generated electricity can be used for on-site consumption, grid connection, or integrated with energy storage systems for enhanced energy independence.Its modular structural design allows for quick installation and flexible expansion according to project requirements. The system can also be integrated with electric vehicle (EV) charging stations, creating a smart energy solution that supports clean transportation and sustainable infrastructure.
This solar carport system is ideal for commercial parking lots, office buildings, shopping centers, residential communities, and industrial facilities, providing both functional vehicle shelter and efficient renewable energy generation in one integrated solution.
12.39kW Three-Car Solar Carport Grid-Tied System
|
Daily Power Generation ≈ 37 kWh |
Solar Panels 590W × 21 pcs |
Grid-Tied Inverter 12 kW × 1 unit |
EV Charging Pile 7 kW × 1 unit |
Energy Storage Battery None |
|
Distribution Box 12 kW Customized Distribution Box |
Anti-Backflow Device VDG-EM-3 Model |
DC Cable PV1-F 4mm², 192 m |
Ground / AC Cable Included |
Carport Size Length: 8000 mm Width: 7000 mm Height: Low side 2700 mm |
12.39kW Three-Car Solar Carport Off-Grid System
|
Daily Power Generation ≈ 37 kWh |
Solar Panels 590W × 21 pcs |
Off-Tied Inverter 12 kW × 1 unit |
EV Charging Pile 7 kW × 1 unit |
Energy Storage Battery 14 kWh × 1 set |
|
Distribution Box 12 kW Customized Distribution Box |
Anti-Backflow Device VDG-EM-3 Model |
DC Cable PV1-F 4mm², 192 m |
Ground / AC Cable Included |
Carport Size Length: 8000 mm Width: 7000 mm Height: Low side 2700 mm |
12.39kW Three-Car Solar Carport Hybrid System
|
Daily Power Generation ≈ 37 kWh |
Solar Panels 590W × 21 pcs |
Hybrid Inverter 12 kW × 1 unit |
EV Charging Pile 7 kW × 1 unit |
Energy Storage Battery 14 kWh × 1 set |
|
Distribution Box 12 kW Customized Distribution Box |
Anti-Backflow Device VDG-EM-3 Model |
DC Cable PV1-F 4mm², 192 m |
Ground / AC Cable Included |
Carport Size Length: 8000 mm Width: 7000 mm Height: Low side 2700 mm |
