Product Description

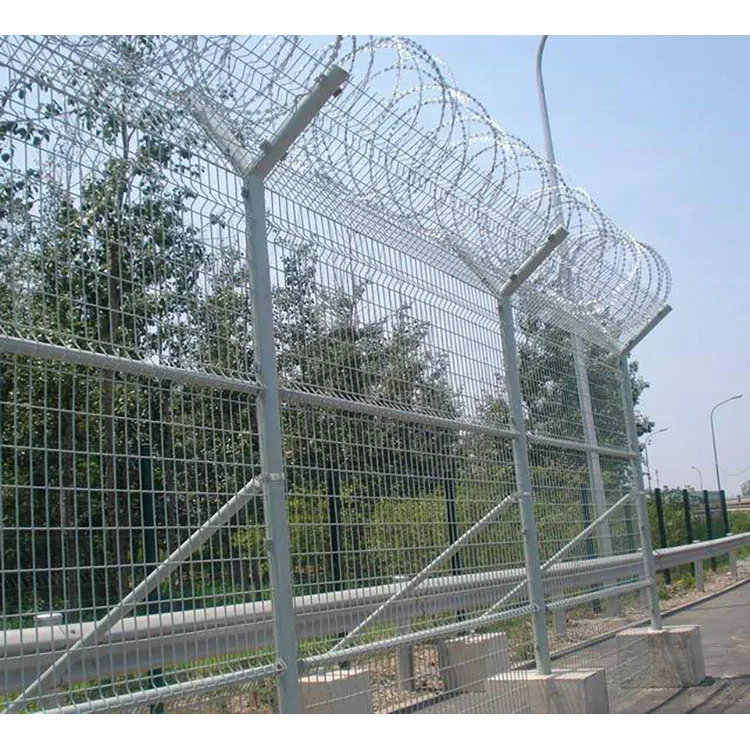

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-1

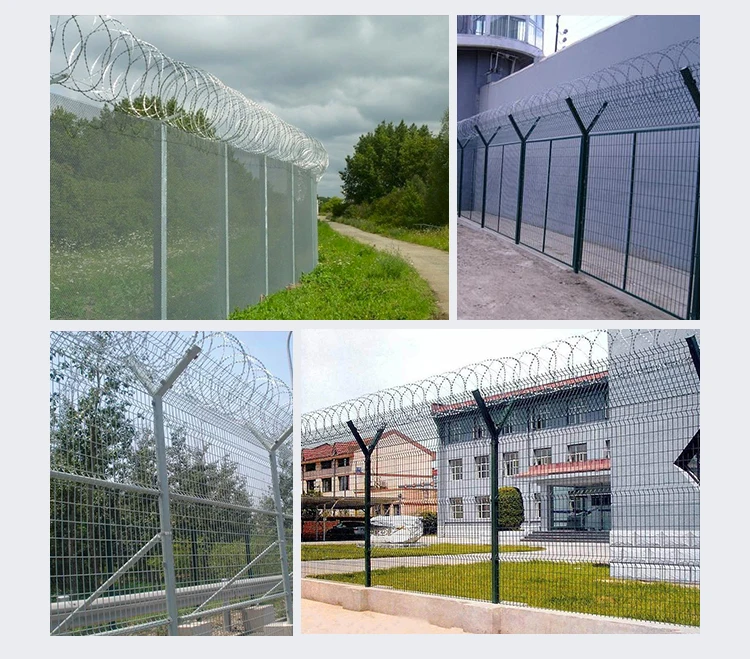

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-2

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-3

Product Introduction

Wire mesh fence are divided into different styles which named triangle bending fence, double wire fence, double loop fence, etc.It is mainly used for fence protection of roads, railways, airport residential communities, ports, docks, gardens,feeding and so on.

The product types

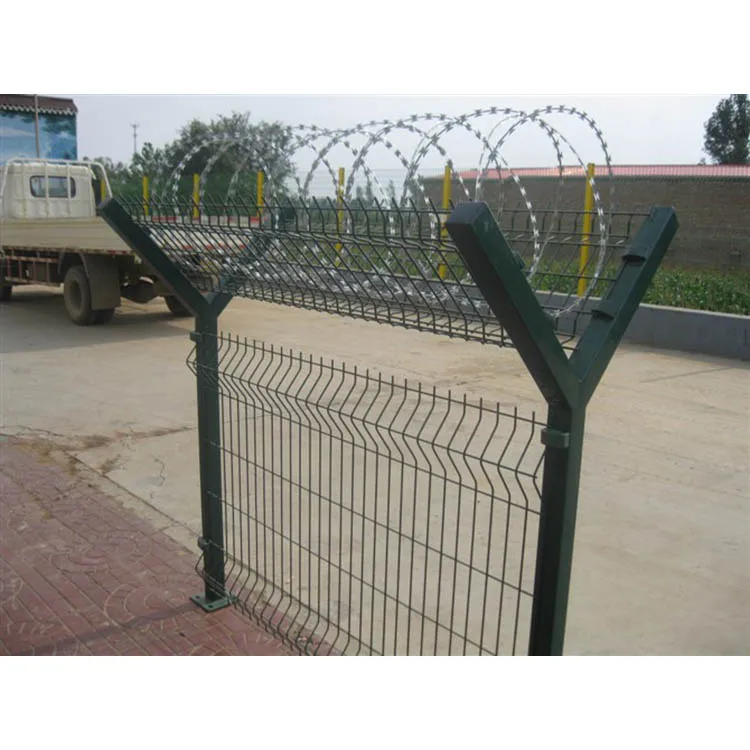

1.Bending + Y-post

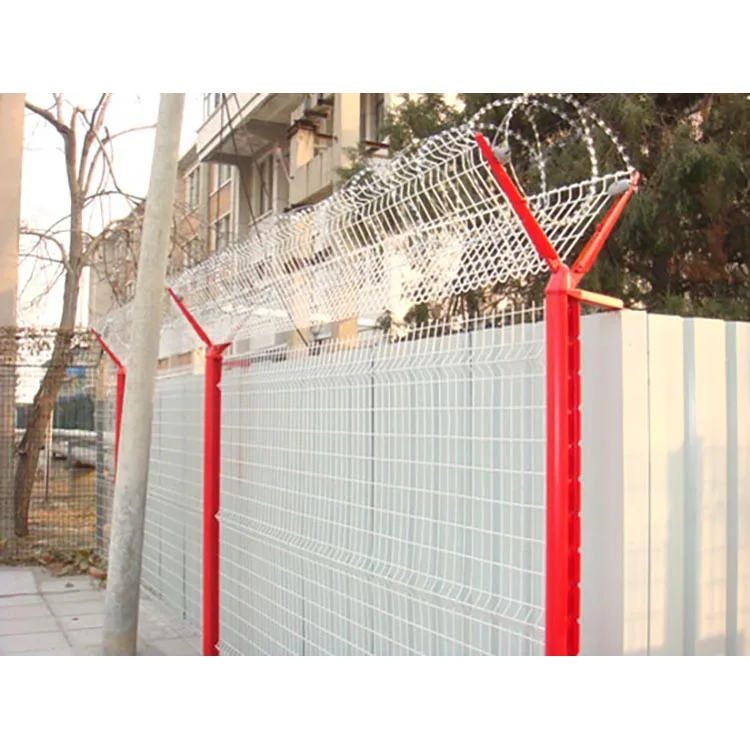

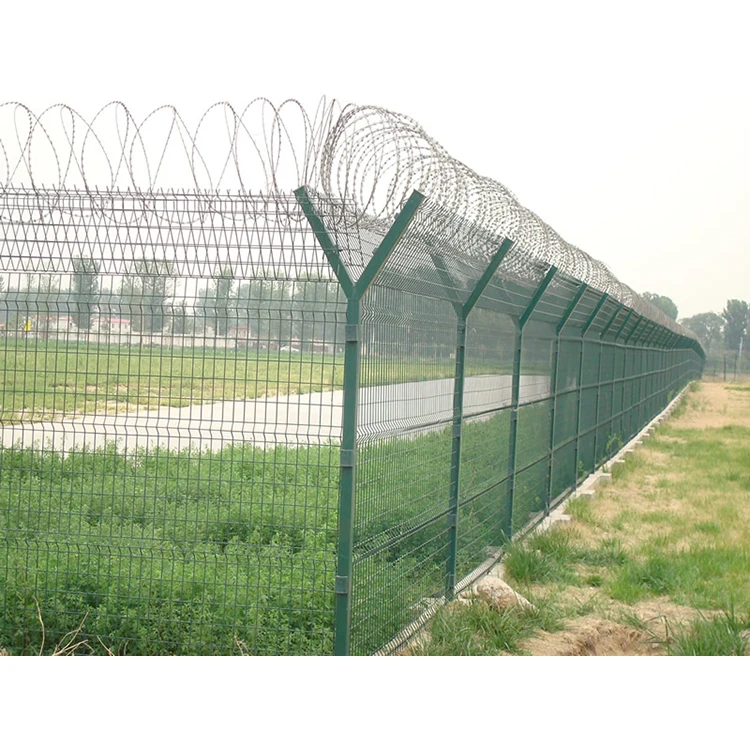

2.Bending + Y-post+Razor Barbed Wire

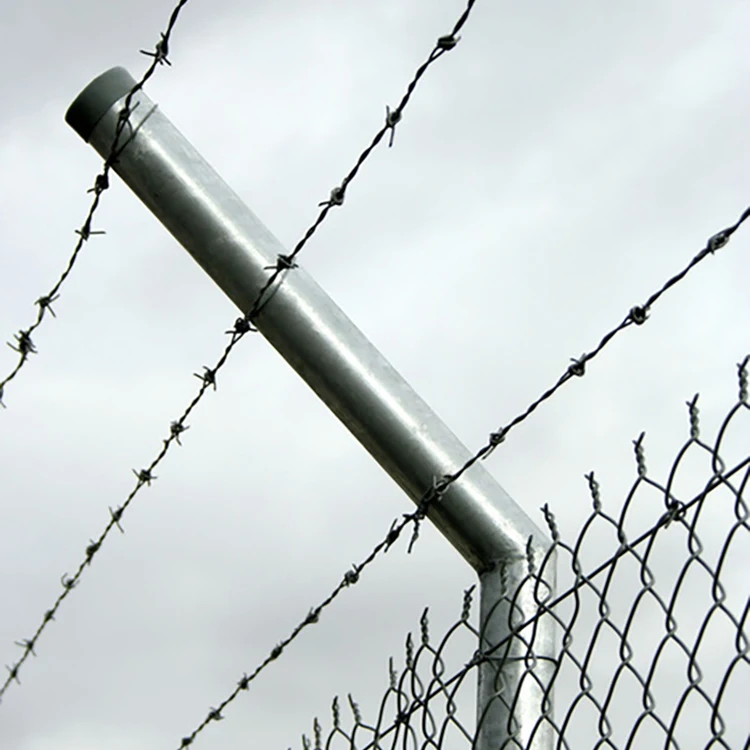

3.Chain link fence+Y-post+Barbed Wire

4.Chain link fence+Barbed Wire+Razor Barbed Wire

5.358+Y-post

6.358+Y-post+Razor Barbed Wire

Wire Mesh Fence Specifications
Wire diameter	Mesh size(mm)	Width(mm)	Height(mm)
GI+powder coated 3.85mm/4mm 4.85mm/5mm 5.85mm/6mm GI+PVC coated 3mm/4mm 4mm/5mm 5mm/6mm	50Ã100	2000 2500	1000 1500 2000 2300 2500 3000
				50Ã150
				50Ã200
				75Ã150
				75Ã200

Panel

Item	Mesh	Wire Thickness	Surface Treatment
Big Panel	50x100mm 55x100mm or customized	3.0-6.0mm	Hot Dip Gal. Gal.+PVC coated Gal.+powder painting
V panel	50x100mm 55x100mm or customized	3.0-6.0mm	Hot Dip Gal. Gal.+PVC coated Gal.+powder painting
Panel types	3D welded wire mesh fence/358 security fence/chain link fence panel
Panel Width	2.5m-3.0m or as your request
Panel Height	2000mm/ 2300mm/ 2600mm/ 530mm/ 630mm/730mm
Fence Height	2700mm/3200mm/3700mm/2700mm/3200mm/3700mm

Y Post

Profile	60*60mm
Wall thickness	2.0mm/2.5mm,etc...
Surface treatment	Hot Dip Gal. Gal.+PVC coated Gal.+powder painting
Length	2700mml+550mmV 3100mml+650mmV 3600mml+750mmV
Rain hat	plastic or metal
Base Plate	as your request

Top concertina razor wire

Type	Core wire/Blade thickness	Surface Treatment	Length	Outside diameter	Clips
BTO-22	2.5/0.5mm	Hot dipped galvanized	8-10m/roll	500mm/600mm/700mm	3 lines

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-4

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-5

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-6

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-7

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-8

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-9

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-10

Applied to many areas:

1)As fences for playground,gardens,super highway,railway,airport,residence,etc.

2)As fences to protect and support seawall,slope,road and bridge,reservoir and other civil engineering.

3)Link chain fence is also used in breeding of animals.

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-11

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-12

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-13

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-14

About us

Hebei Jinbiao Construction Materials Tech Corp., Ltd was located in Anping county ,Heibei province , it was found in 1990 as a manufacture engaged in the research & development, production, sale and service of wire mesh fence and sound barriers.

In Shijiazhuang, 26 December 2014, the company was listed on the stock exchange, becoming the first locally listed company in the area. Now Jinbiao covers an area of 133,200 square meters ,has a registered capital of 101 million CNY and has developed into a multiple corporate enterprise. Product Quality: Our products have passed ISO9001 certificate of quality management system, CE product certification, and established a long-term cooperation with Acoustic Institutions in Southeast Asia. Besides JINBIAO sets up a special quality inspection team to ensure that all products are well-qualified.

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-15

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-16

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-17

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-18

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-19

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-20

1:Are you a munufacturer or a trading company? We are a munufacturer which has 30 years history.

2:Where is your factory? How to visit it? HEBEI JINBIAO CONSTRCTION MATERIALS TECH CORP.,LTD was established in 1990,which located in Anping county,Hebei.

3:How do we control our products quality? WE have professional quality control workers and quality inspection machine to control the wntire production quality.

product welded wire mesh airport fencing anti theft anti cut steel prison fence915-21
