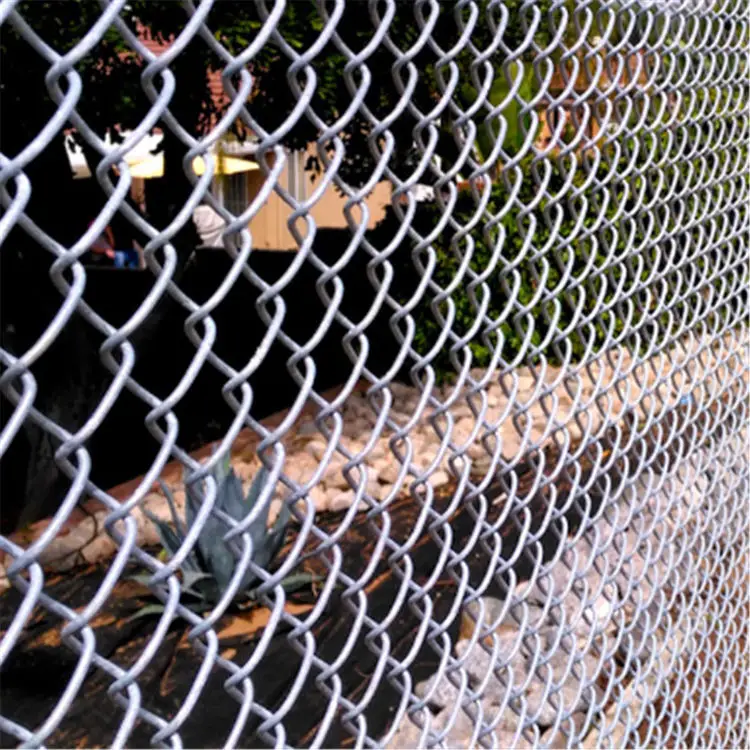

Common Specification of Chain Link Fence:
1)Material: High quality low carbon steel wire, galvanized steel wire
2)Wire Dia: 3.0mm-5.0mm
3)Mesh: 40x40mm,50x50mm, 60x60mm, etc
4)Size: Length(8m, 10m as common usual)*Height(0.5m-4m)

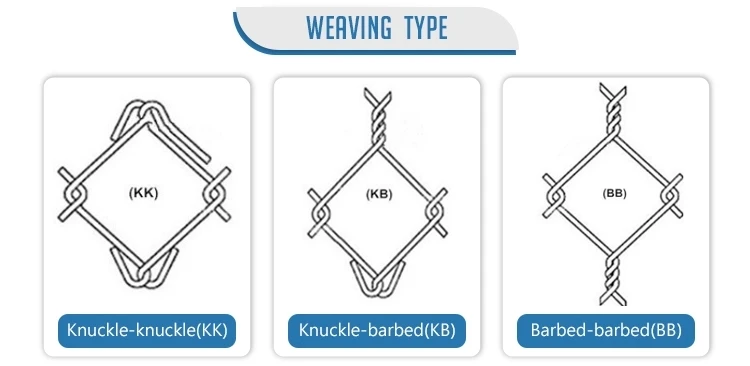

Twisted Edge & Knuckle Edge
Chain Link Fence specification
Chain Link Fence | |
Material |
Electro galvanized,hot dipped galvanized,pvc coated low carbon steel wire |
Wire diameter |
3mm,4mm,5mm |
Opening |
30mm*30mm,40mm*40mm,50mm*50mm,60mm*60mm |
Height |
1.7m-2.5m |

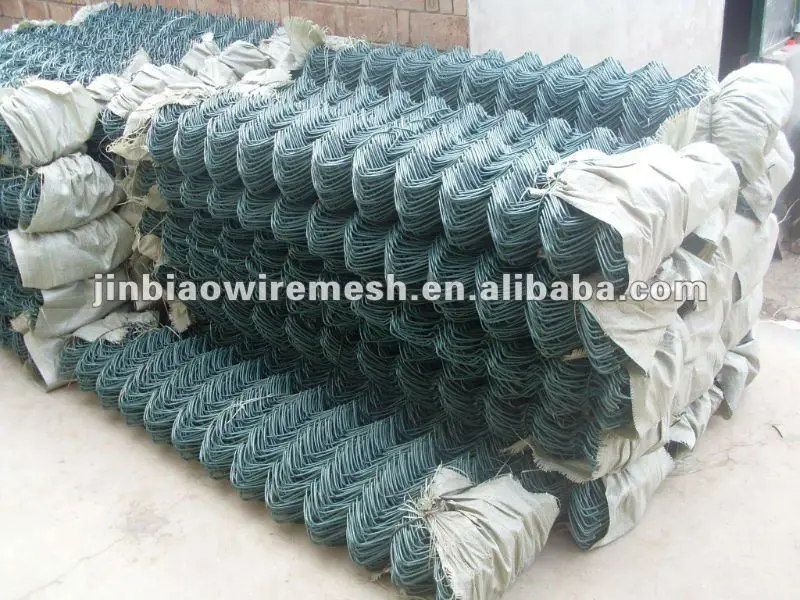

Standard roll |
50m/roll |
Selvage |
Twisted edge,knuckle edge |
Round post size |
25mm*1.2mm,32mm*1.5mm,48mm*2.0mm,60mm*2.5mm,89mm*3.0mm |
Surface treatment |
Electro galvanized,hot dipped galvanized,PVC coated,galvanized +PVC coated |
Fittings |
Post cap,clip,tension bar,tension band,sleeve,barb wire arm etc. |
Finish of fittings |
Hot dipped galvanized,PVC coated |
Color |
Green,white,black,grey,etc. |

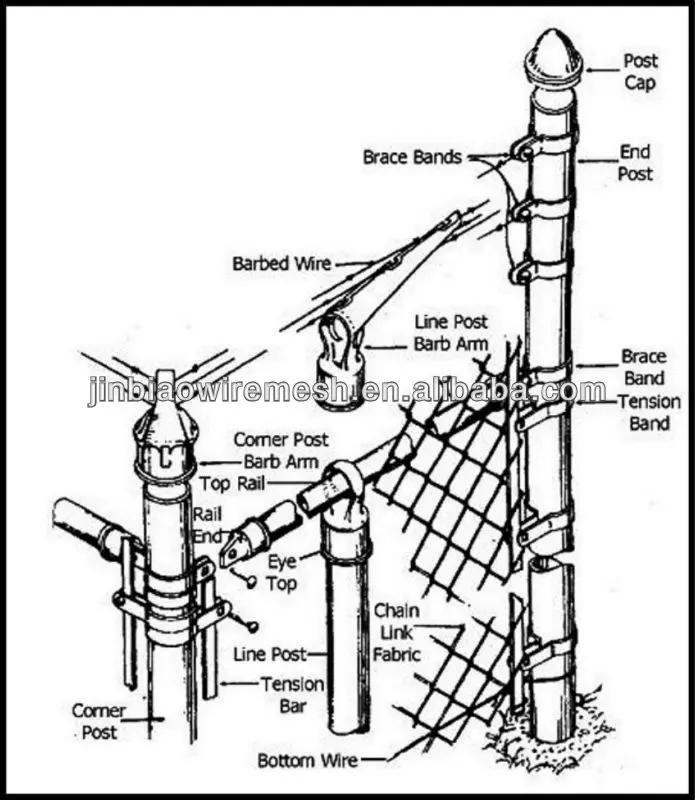

Chain Link Fence accessories
We carry an extensive line of chain link fittings and accessories for residential, commercial and industrial use.
Brace Band , Tension band, Tensioner, Flat iron, Binding wire, Sleeve, Post Cap,etc.
Flat Iron : Support the folding chain link mesh
Brace band : Linking the post and Tensioner
Tension band : secure the post and flat iron
Single Barbed Arm: put the barbed wire
Double barbed arms : put the razor barbed wire on the post top

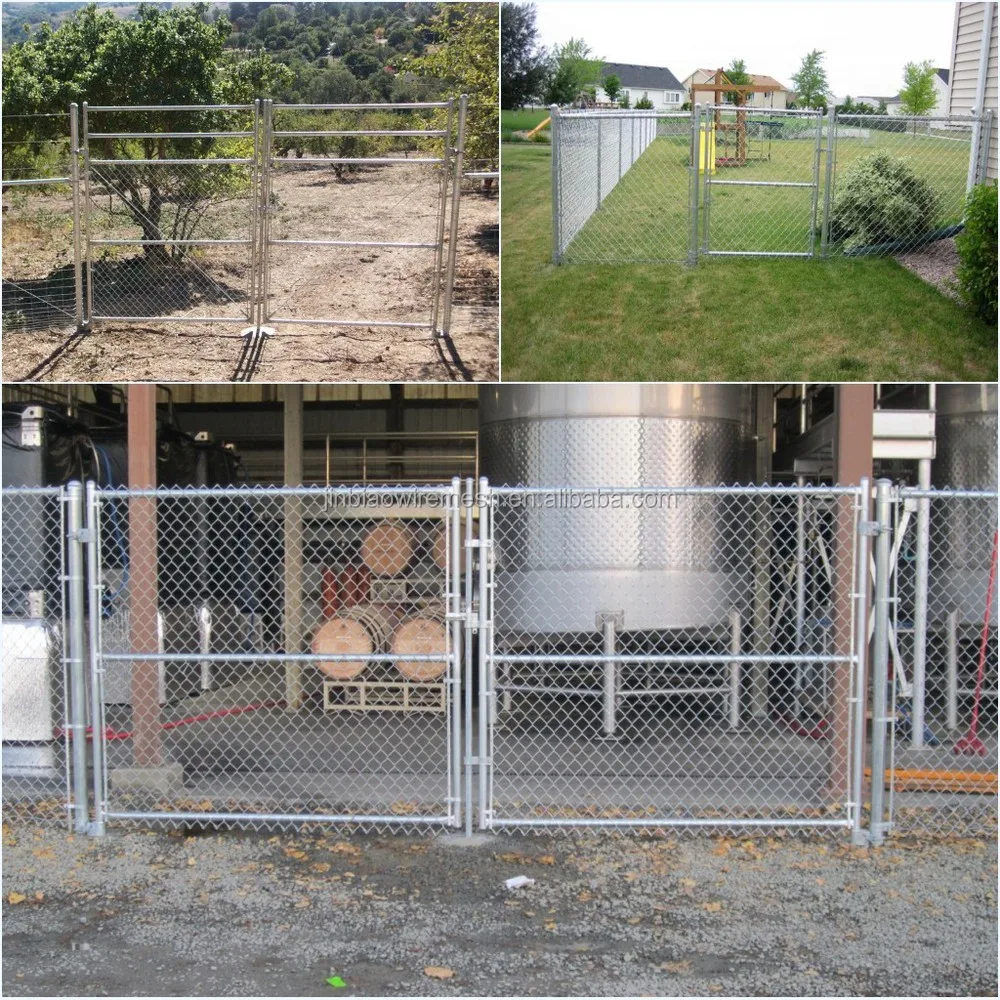

Chain Link Fence Gate:
Attention: Special gate design as per your drawings!

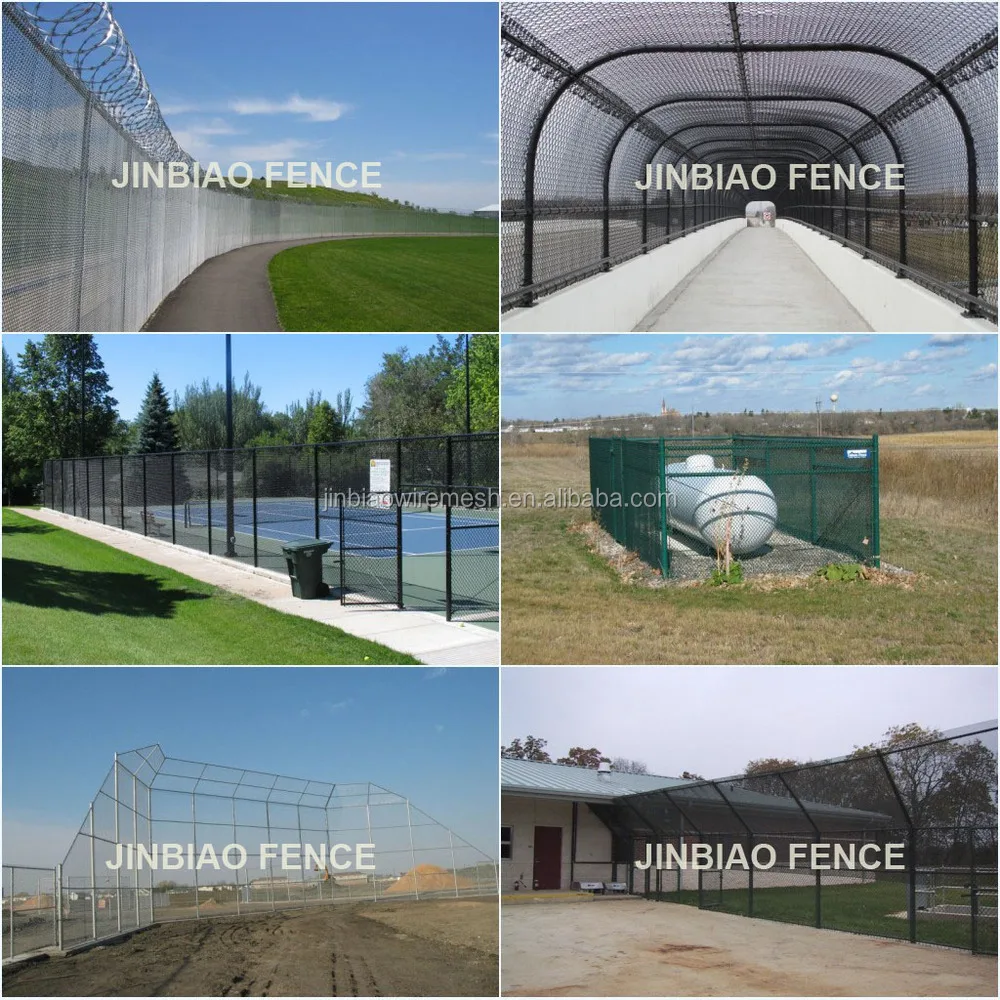

Chain Link Fence uses:
1) As fences for playground, gardens, super highway, railway, airport, residence, etc.
2) AS fences to protect and support seawall, slope, road and bridge, reservoir and other civil engineering.
3) Link chain fence is also used in breeding of animals.
No. Chain link is a component fence system, consisting primarily of three basic elements: fabric, framework, and fittings. The critical issue is how these components are combined. Chain link is available in a wide range of weights (or gauges) and coatings. The most common coating is zinc (galvanized) but chain link is also available in other coatings such as aluminum or vinyl and polyester color coatings that enhance landscaping, blending naturally with trees, shrubs, and bushes.
Chain link protects and beautifies property, is long-lasting, maintenance-free, yet economical. A chain link fence also provides security without obstructing views, blends well with landscaping, and controls pets.
Trust JinBiao Group, we'll help you find the best choice!!
