Product Description

product paladin security and perimeter protection welded wire mesh fence panel for yard construction site and safety fencing-1

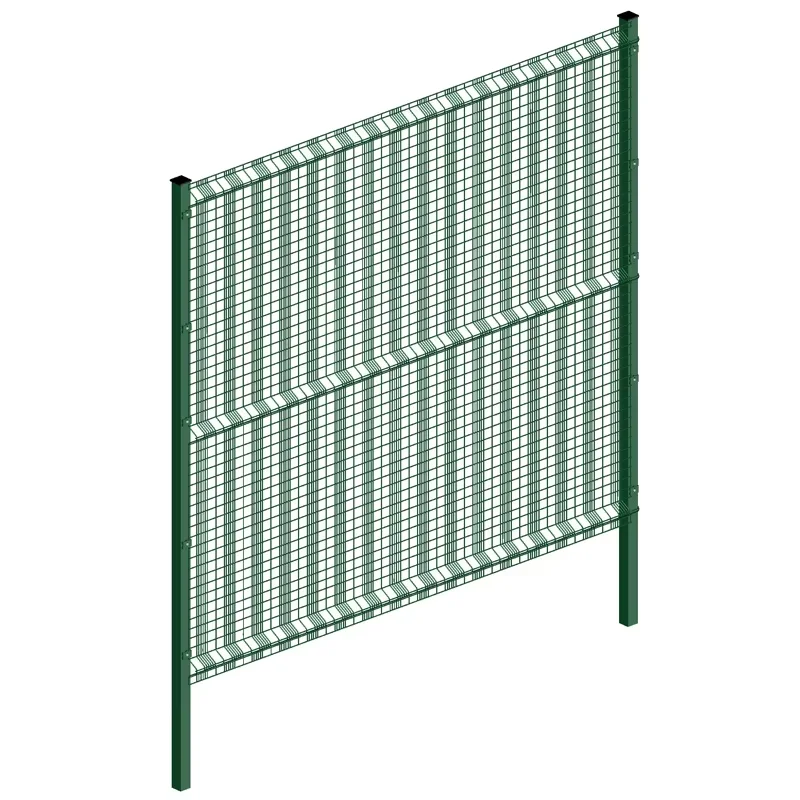

Paladin Security fence is a original striped type welded mesh fence with innovative and unique aesthetic appearance. It has the features of high strength and security, anti-climbing, anti-cutting, and faster installation. Paladin Fencing panel as a decorative mesh panel has extra vertical wires and a crimped panel design. With pressed 'V' forms containing additional 4 mm diameter wires for the full panel width, paladin mesh fencing offers a rigidity anti-intruder barrier solution.Vertical wires are set at varied spacing, creating a stripe effect along the fence line.

Fence Height	Panel Size	Beams	Inter clamps	Corners Clamps
900 mm	925 × 3025 mm	2	3	6
1200 mm	1240 × 3025 mm	2	4	8
1800 mm	1850 × 3025 mm	2	5	10
2000 mm	2000 × 3025 mm	3	6	12
2400 mm	2440 × 3025 mm	3	7	14
Post	60 × 60 × 2.00 mm and 60 × 80 × 2.5 mm

product paladin security and perimeter protection welded wire mesh fence panel for yard construction site and safety fencing-2

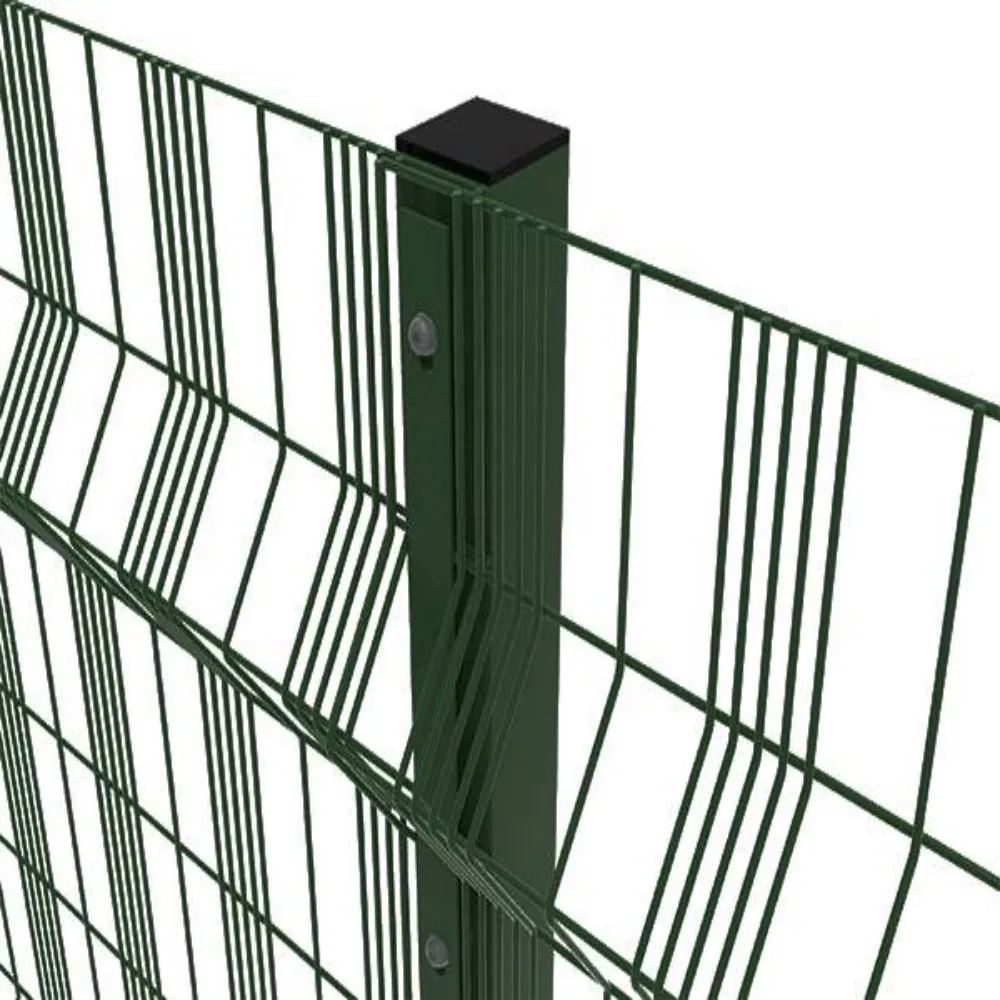

There are flat bars and clamp installation types. And they can be installed on soils (dig-in) or concrete ground (bolt down ). you can choose them according to your specific applications and environments

product paladin security and perimeter protection welded wire mesh fence panel for yard construction site and safety fencing-3

Common type Paladin Security fence Specifications:Width of the panel: 2500 mm or 3025 mm. Height of the panel: 900 mm to 2400 mm. Spike to top edge: 30 mm. Mesh pattern: small 12.5 × 50 mm and large 50 × 50 mm, welded at each intersection. This mesh size ensures good visibility through the fence whilst the wire provides a high level of rigidity. Horizontal wires: 3 mm diameter at 50 mm centres with additional 4 mm diameter in the 'V' beams. Vertical wires: 3 mm diameter at 50 mm and 12.5 mm centres. 0.9 m / 1.2 m / 1.8 m panels have 2 'V' forms, 2.0 m / 2.4 m panels have 3 'V' forms. Surface treatment: plastic coated with green color. Thickness of powder coated 80-100 micron. Fence post size 60 × 40 mm, 60 × 60 mm and 80 × 60 mm with plastic cap or metal cap. Clamps: plastic clamp or metal clamp. Another type :fence mesh opening 20 mm × 200 mm /43.7 mm × 200 mm, wire 4 mm (verticals); 5 mm (horizontals).

Benefits High level of strength and security Semi-transparent, allowing for easy visibility and preventing anything from hiding behind the fence Anti-climb design, making it challenging to scale Anti-cutting, as the metal wires in the mesh are resistant to scissors, pliers, or wire cutters Quick and easy installation process compared to other fencing options Cost-effective security solution Rust and corrosion resistant with powder coating and hot-dip galvanization options available Available in a wide range of colors to blend with all your site environments.

product paladin security and perimeter protection welded wire mesh fence panel for yard construction site and safety fencing-4

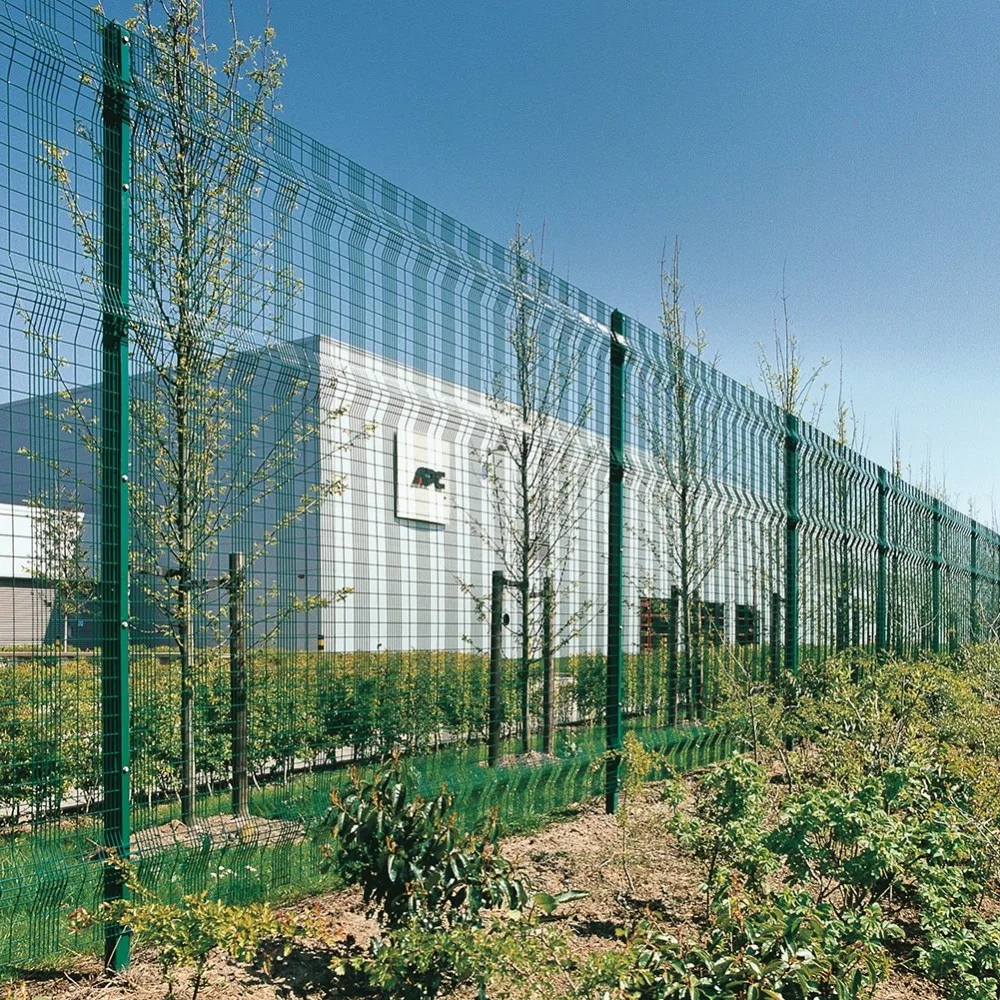

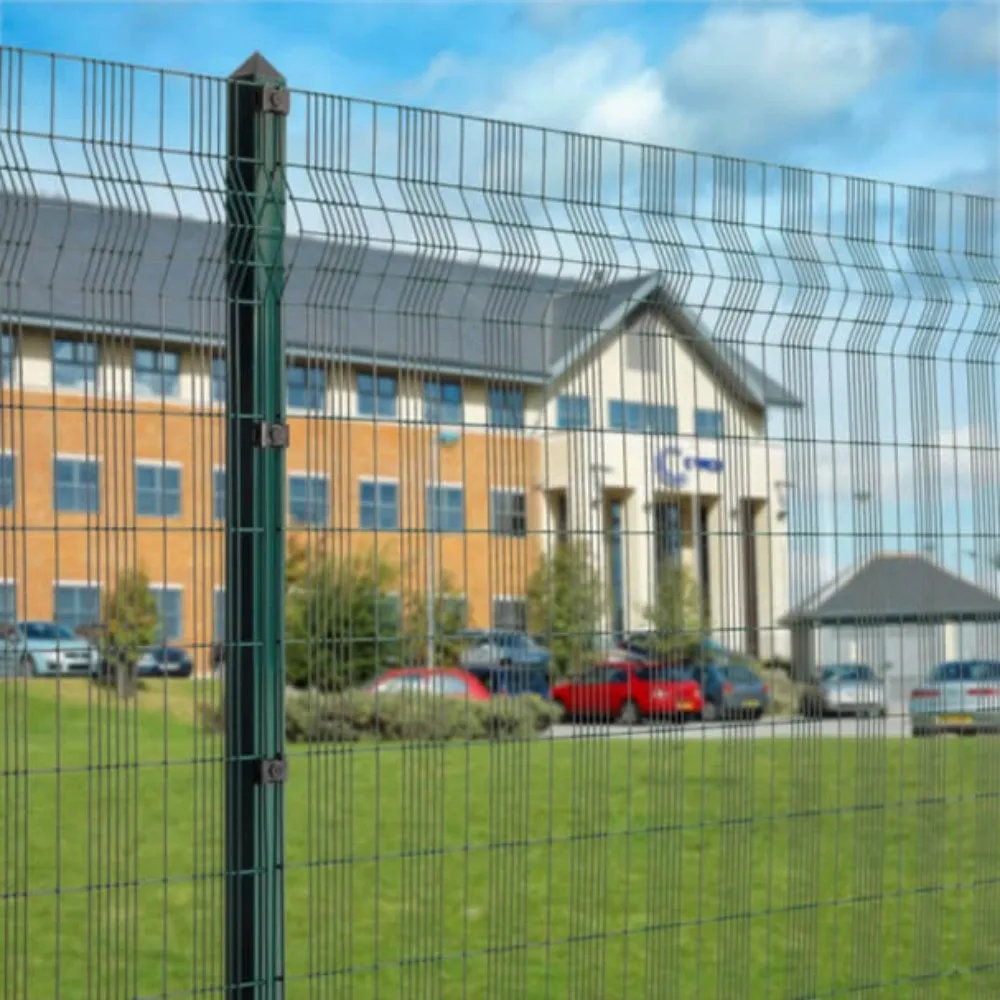

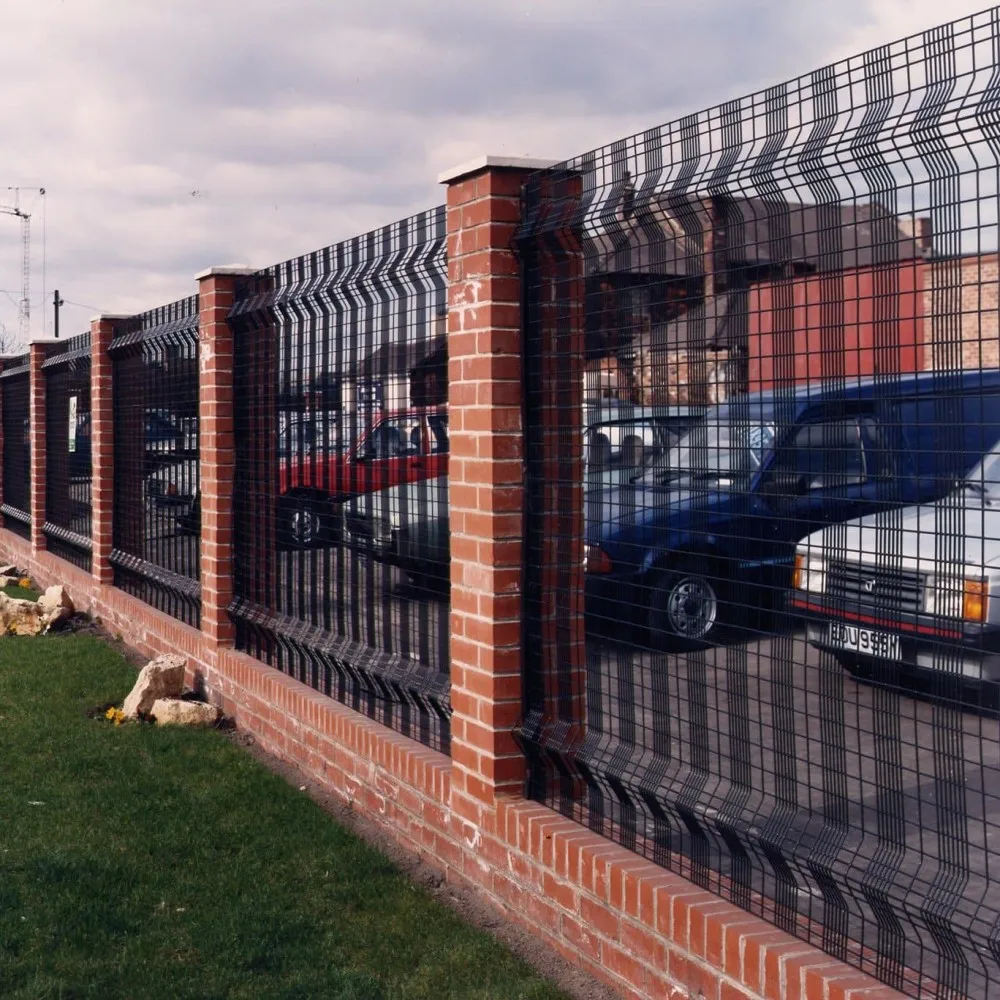

Application of paladin mesh fence Education premises Residential areas and private estates Sports facilities and parks Playgrounds and sports fields Warehouses and factories Airports Commercial spaces Construction sites Farms and agricultural areas

product paladin security and perimeter protection welded wire mesh fence panel for yard construction site and safety fencing-5

product paladin security and perimeter protection welded wire mesh fence panel for yard construction site and safety fencing-6

product paladin security and perimeter protection welded wire mesh fence panel for yard construction site and safety fencing-7

product paladin security and perimeter protection welded wire mesh fence panel for yard construction site and safety fencing-8
