Modern Acrylic & PVC Noise Barrier | Transparent Highway Acoustic Sound Wall Panels

Product Description

Noise Barrier Introduction

Noise barriers are also known as soundproof walls. The insertion of a facility between the sound source and the receiver causes a significant additional attenuation of the acoustic wave propagation, thereby weakening the noise in a certain area of the receiver, and such a facility is called a noise barrier.

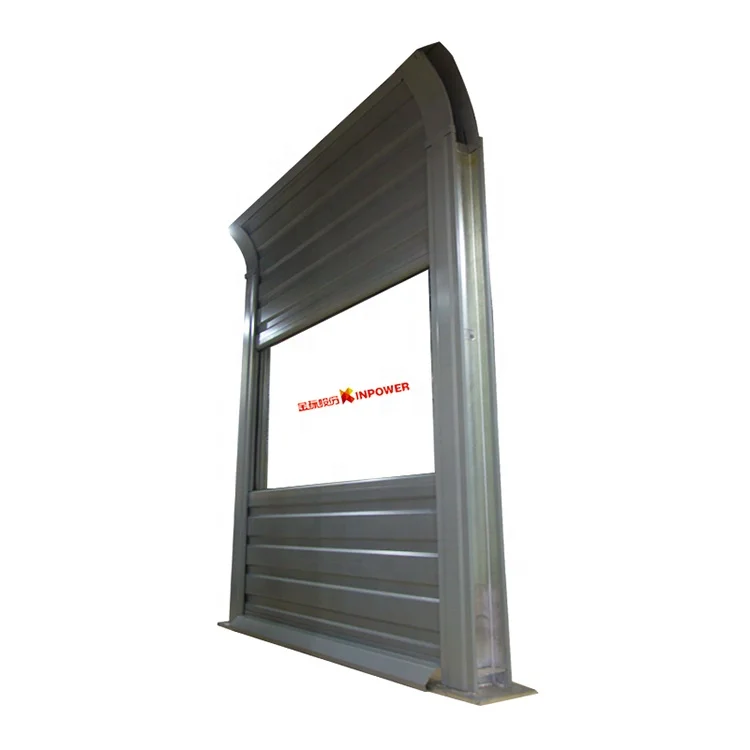

The noise barrier is mainly composed of steel structure column and screen panel. The column is the main force component of the noise barrier. It is fixed by bolts or welding on the buried steel wall of the road anti-collision wall or track.The main sound insulation screen panel components are fixed on H-shaped steel columns by high-strength spring clips to form noise barrier.

Advantages
﹥Superior sound reduction performance
﹥High visibility and natural lighting
﹥Strong wind load resistance
﹥Corrosion and UV resistance
﹥Attractive appearance for urban environments
﹥Custom sizes and colors available
﹥Suitable for long-term outdoor use

Whether used along highways, bridges, or urban roads, transparent noise barriers with metal sheet structures provide an effective balance between acoustic performance, structural strength, and architectural aesthetics, making them a preferred choice for modern infrastructure projects worldwide.

Specification

Noise Barrier Type	Mental noise barrier;transparent noise barrier
Noise Barrier Size	2000500mm;2500500mm;3000*500mm
Noise Barrier Thickness	80mm;100mm;125mm
H Post Size	10010068;1251256.59;150150710;1751757.511mm

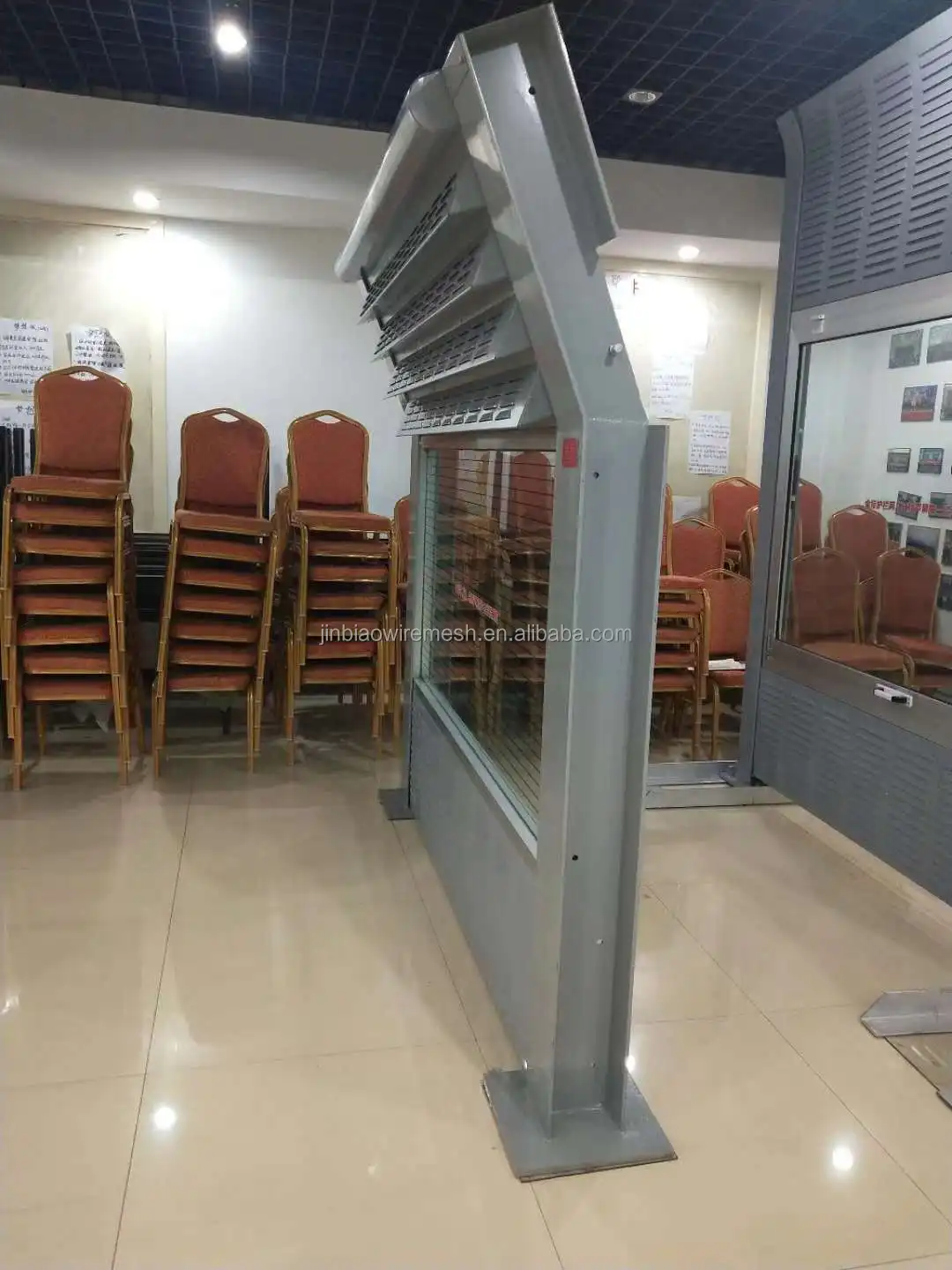

Sample Room

Transparent noise barrier panels with metal sheet structure combine high-performance sound insulation with modern appearance, making them an ideal solution for highways, railways, bridges, and urban infrastructure projects. The combination of transparent panels and sound-absorbing metal sheets provides excellent noise reduction while maintaining visibility and enhancing the surrounding landscape.

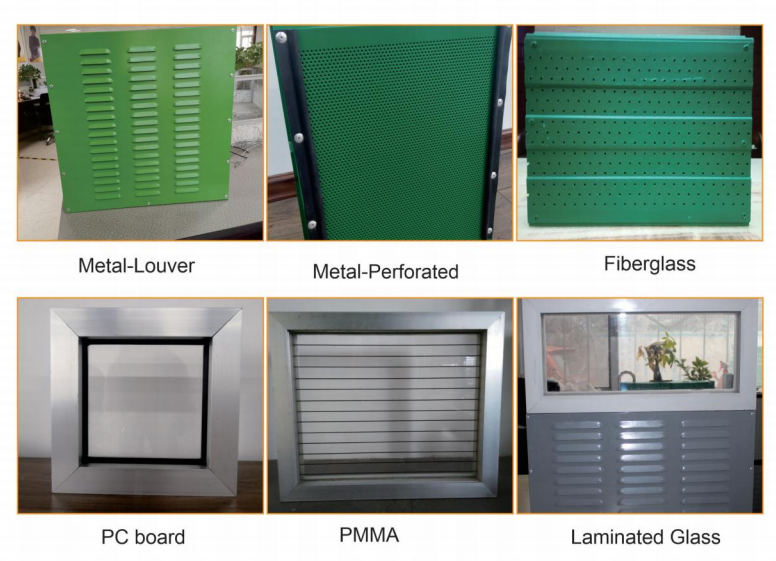

Available Panel Types
﹥Metal-Louver Panels
Metal-louver panels feature a slotted structure that effectively absorbs and diffuses noise. They offer excellent airflow and sound reduction performance, making them ideal for road and railway applications.

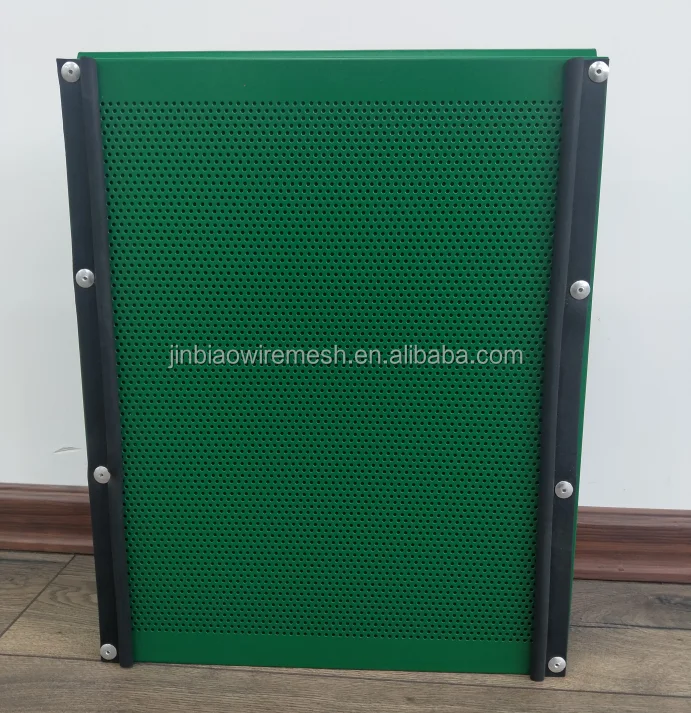

﹥Metal-Perforated Panels
Perforated metal panels are filled with sound-absorbing materials to achieve high noise attenuation. They provide strong structural stability and excellent weather resistance.
﹥PC Board Panels
Polycarbonate (PC) panels offer high transparency and outstanding impact resistance. They allow natural light transmission while maintaining visibility and reducing visual obstruction.
﹥PMMA Panels
PMMA (Acrylic) panels provide excellent light transmittance, UV resistance, and long-term durability. They are widely used in transparent noise barrier systems.
﹥Fiberglass Panels
Fiberglass reinforced panels feature lightweight construction, corrosion resistance, and good acoustic properties, making them suitable for harsh outdoor environments.
﹥Laminated Glass Panels
Laminated glass panels combine transparency with high mechanical strength and safety performance. They provide a premium appearance and excellent sound insulation characteristics.

Noise Barrier Types

＞Mental Noise Barrier--Performed

Mental Material:galvanized sheet;aluminum sheet.

Material Thickness:0.8mm;1mm;1.2mm;1.5mm

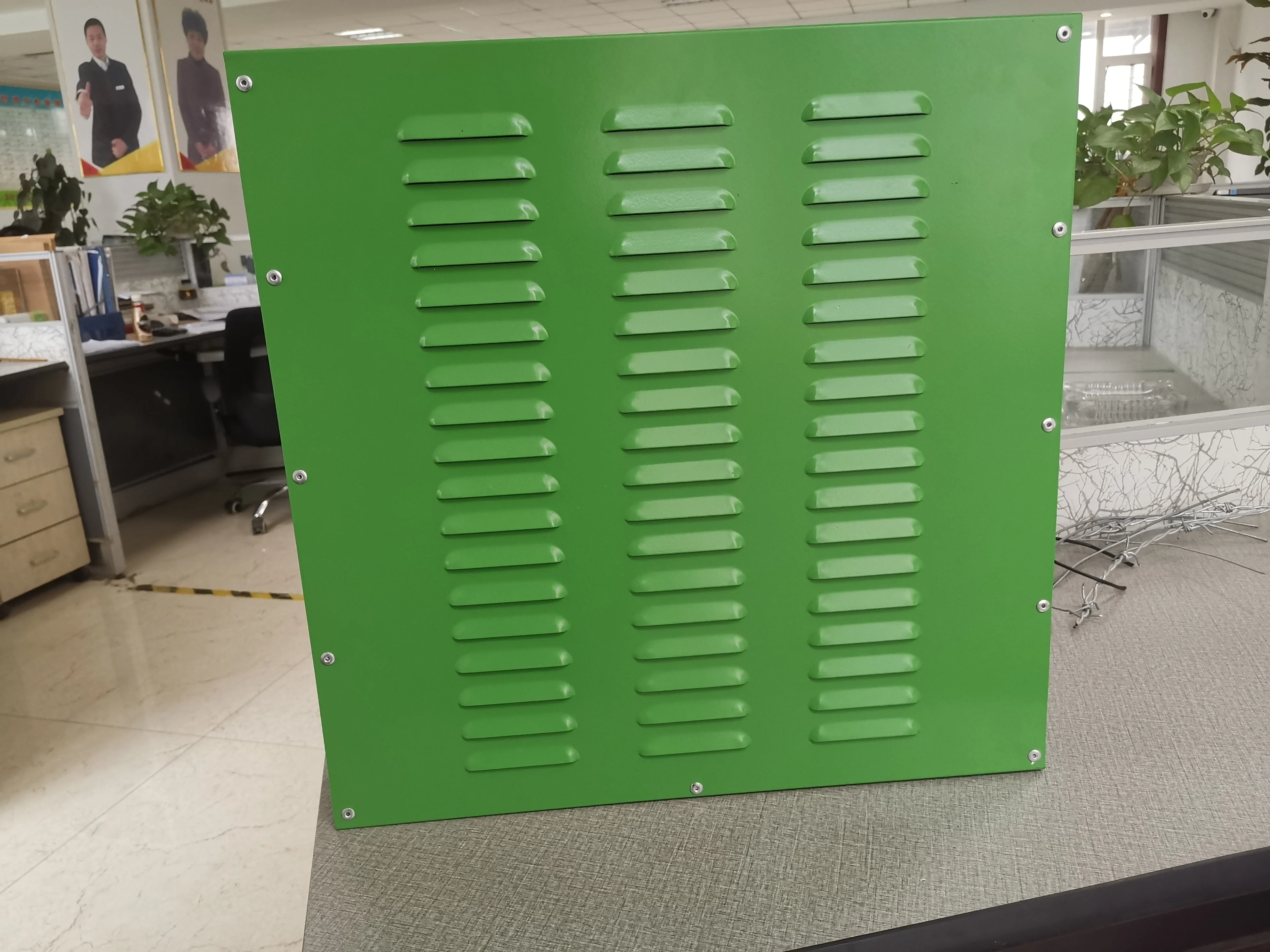

＞Mental Noise Barrier--Louver hole

Mental Material:galvanized sheet;aluminum sheet.

Material Thickness:0.8mm;1mm;1.2mm;1.5mm

＞Transparent Noise Barrier--PC board

Material Thickness:8-20mm

＞Transparent Noise Barrier--Acrylic board--Reinforcement

Material Thickness:8-20mm

＞Transparent Noise Barrier--Laminated tempered

Material Thickness:8-20mm

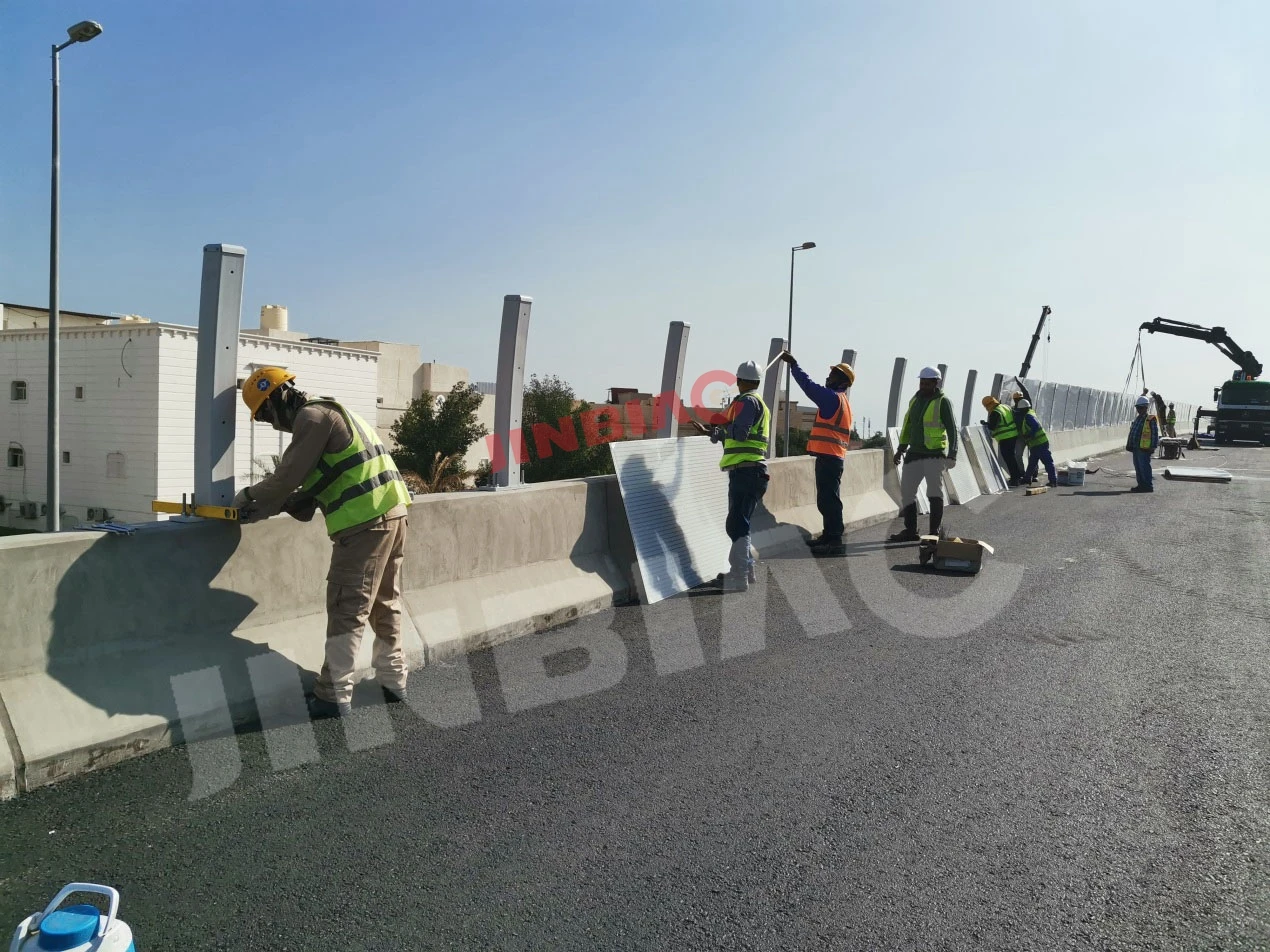

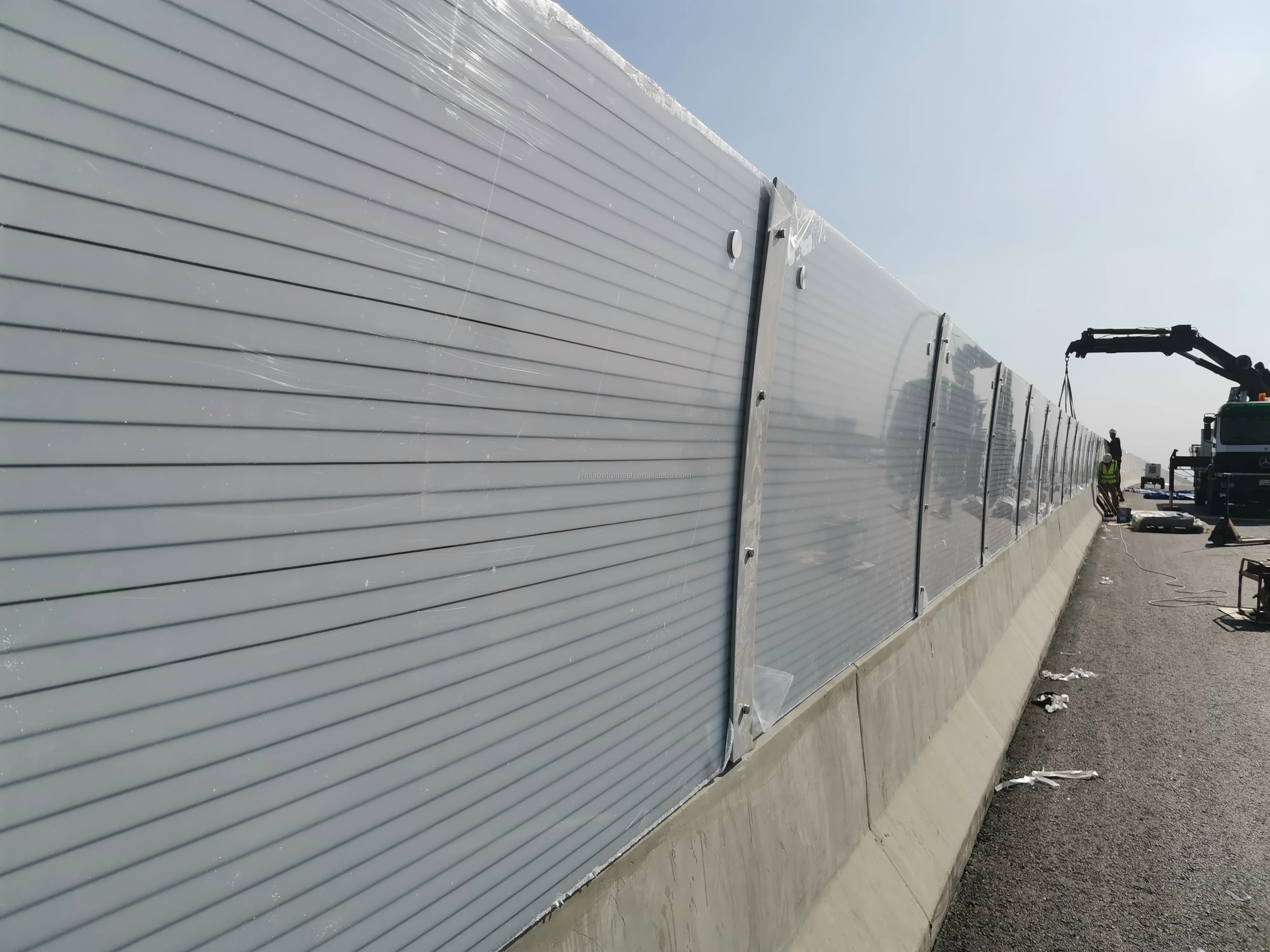

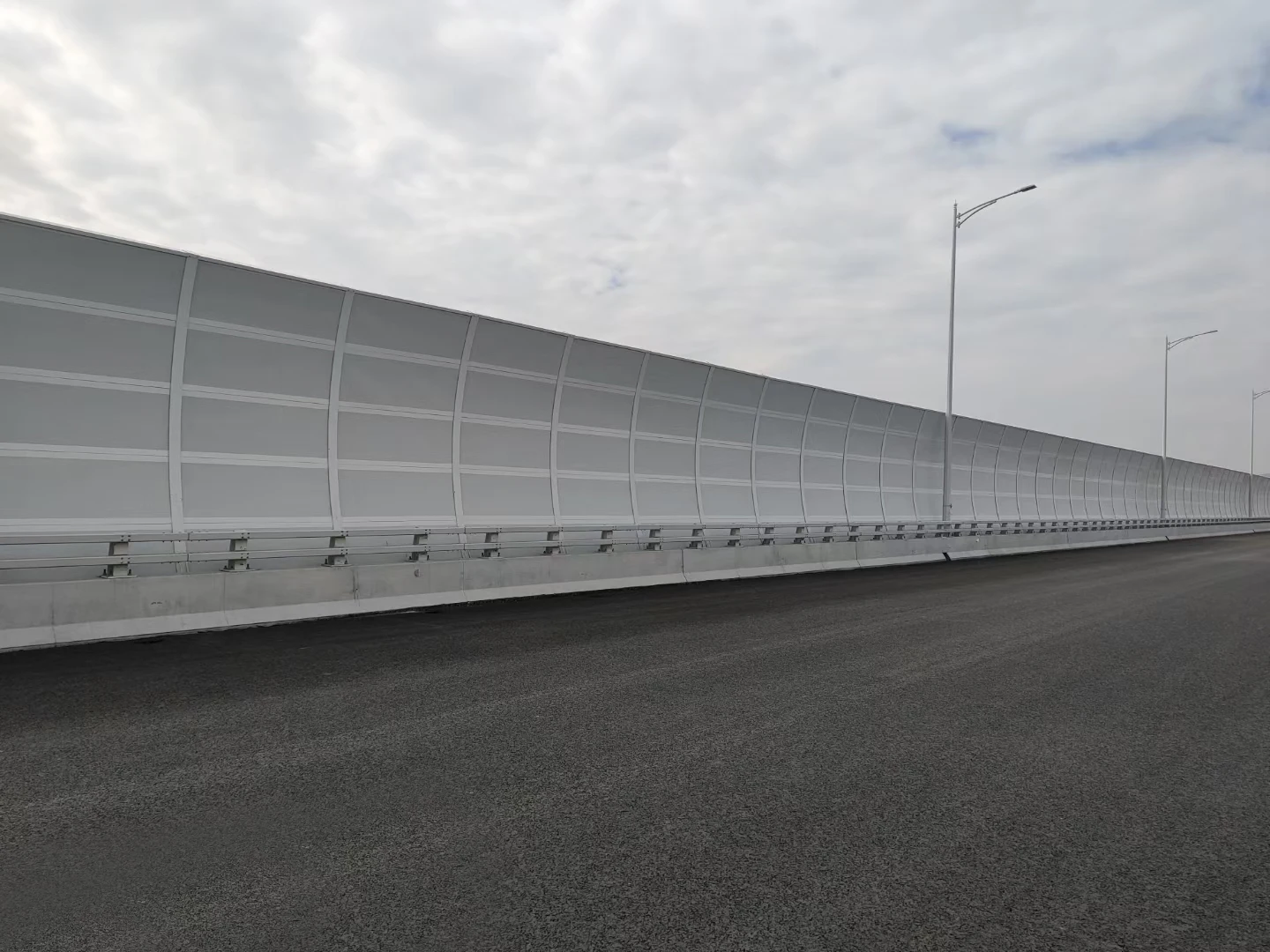

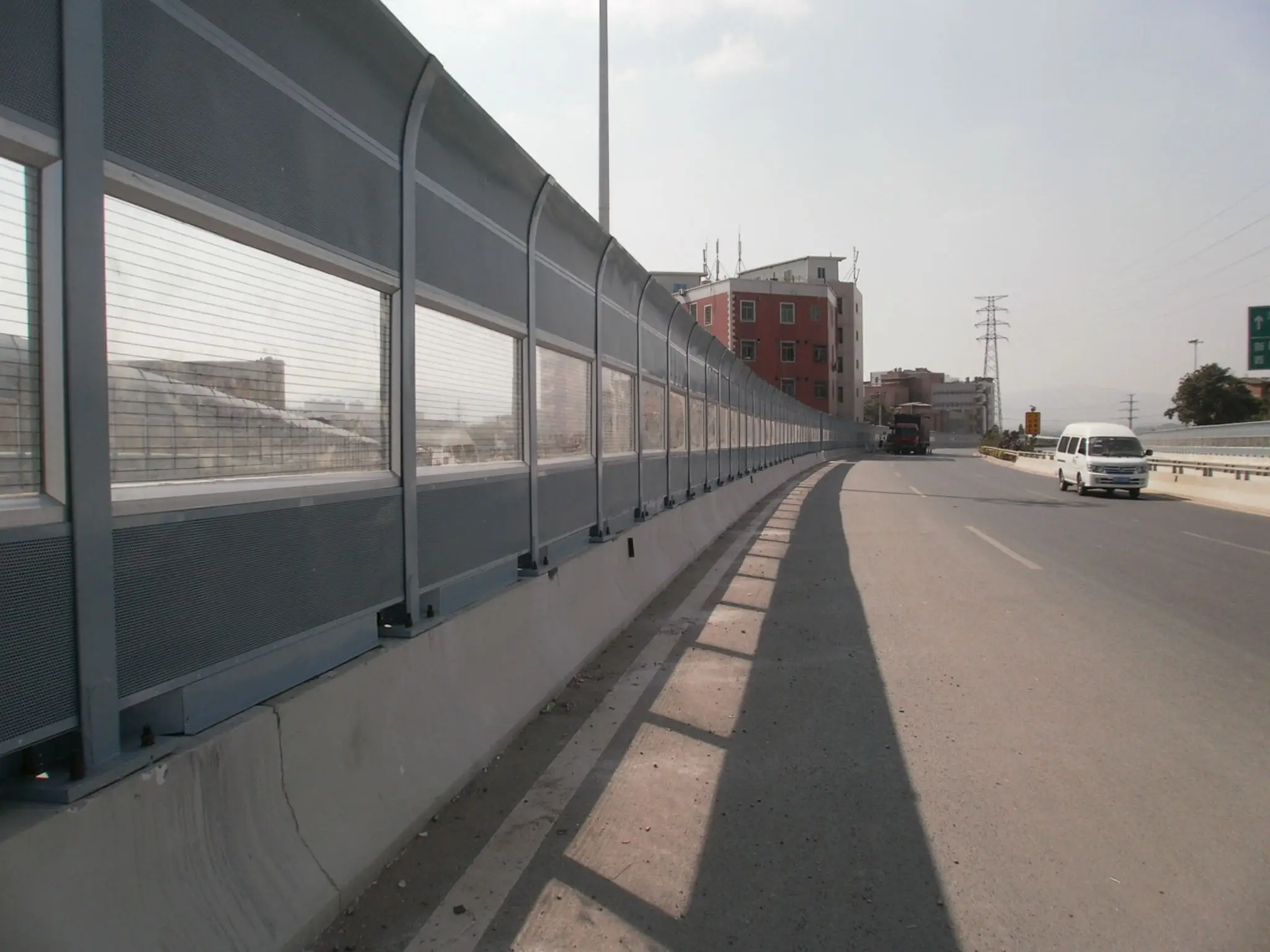

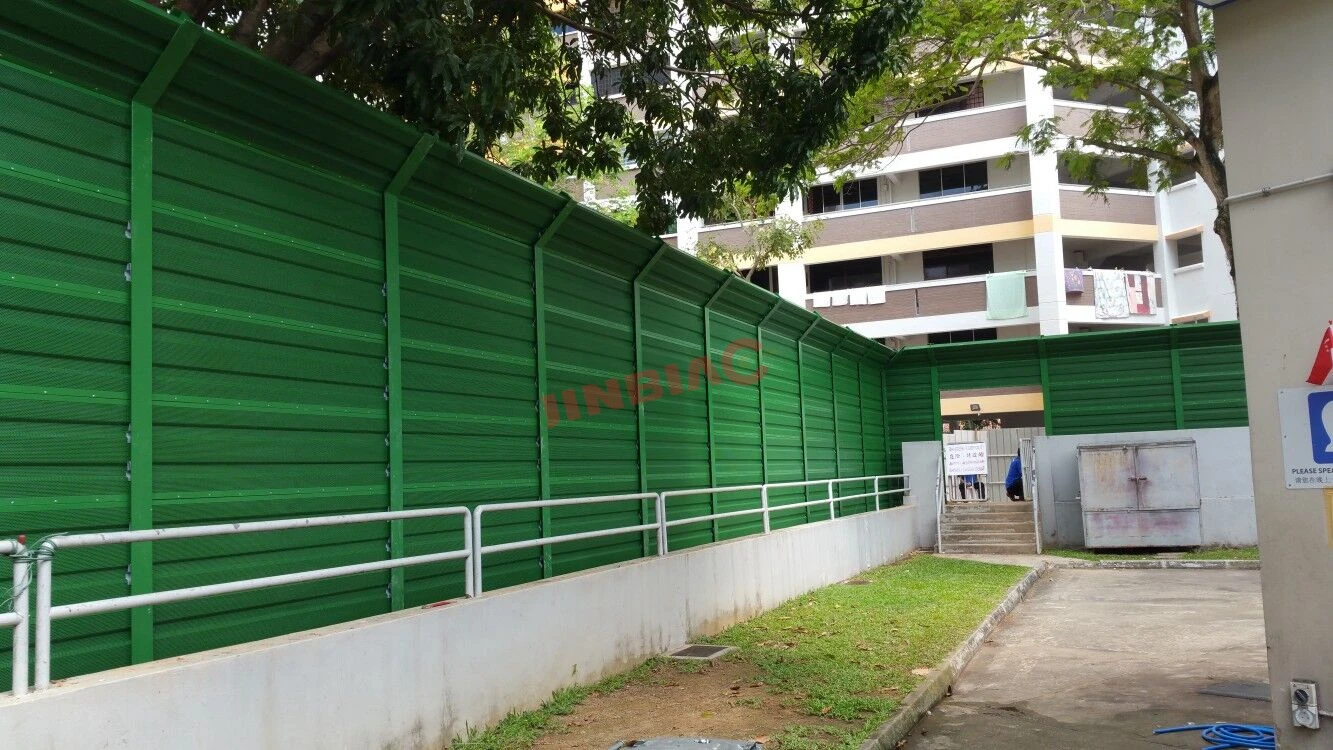

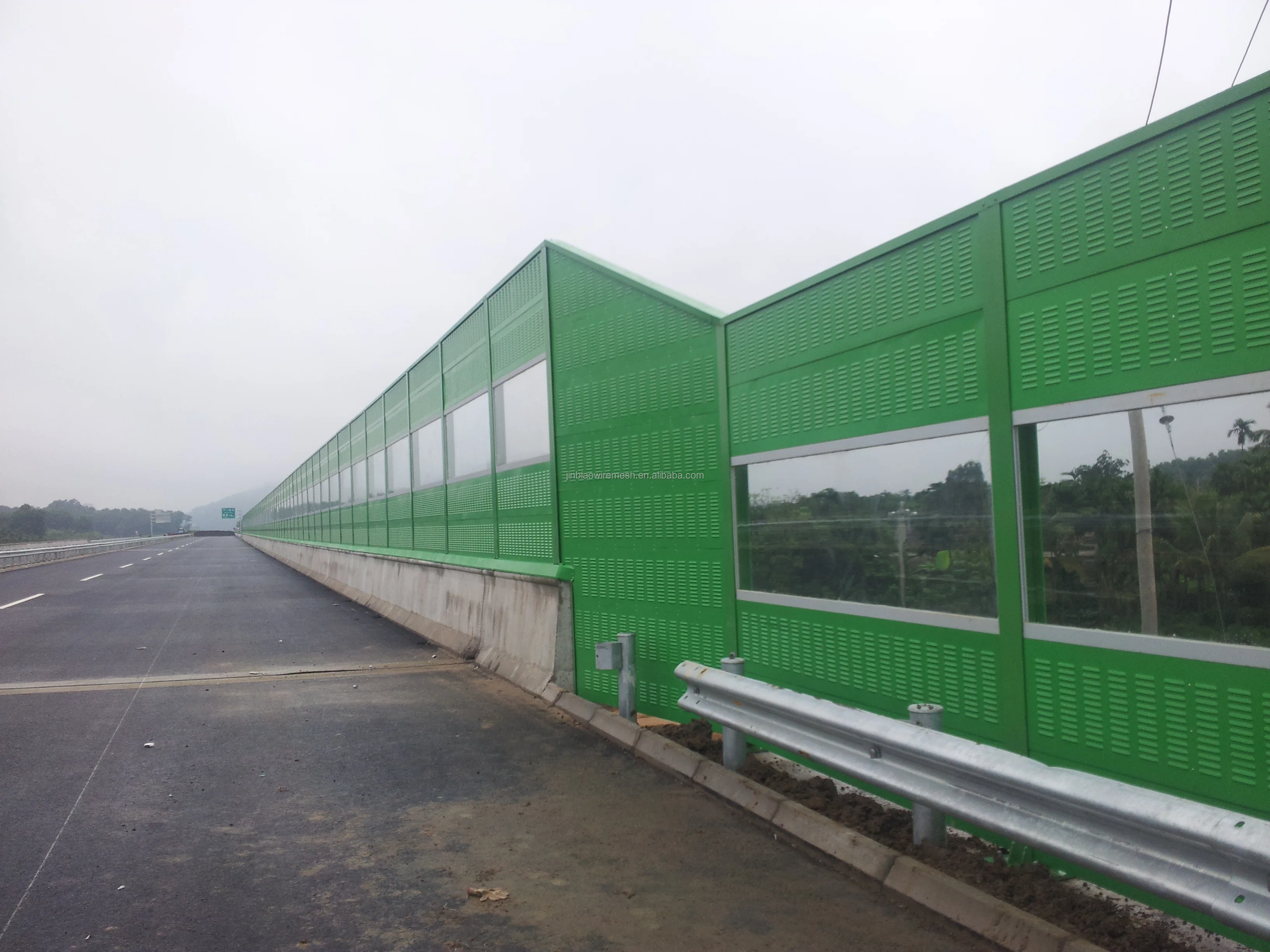

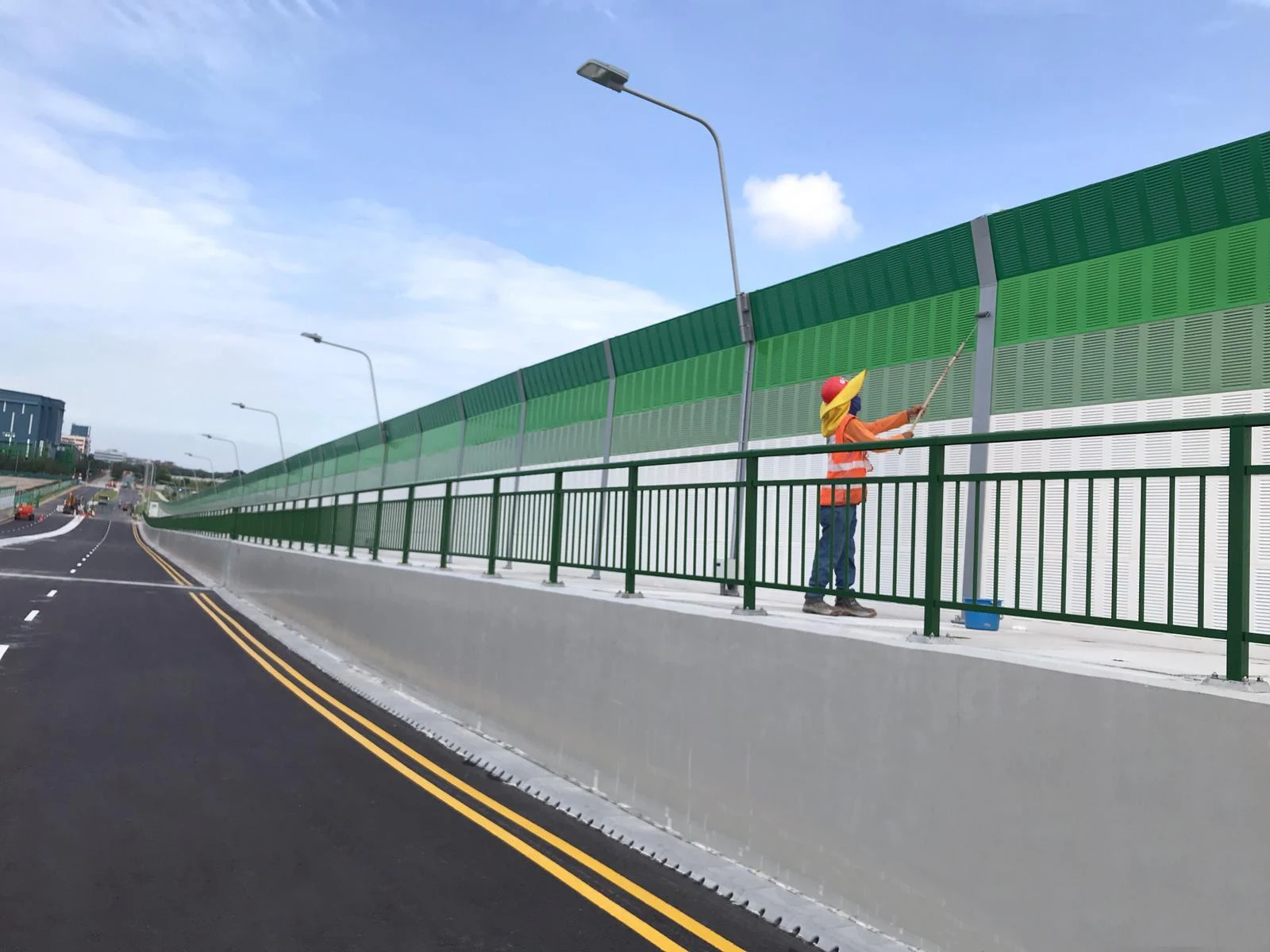

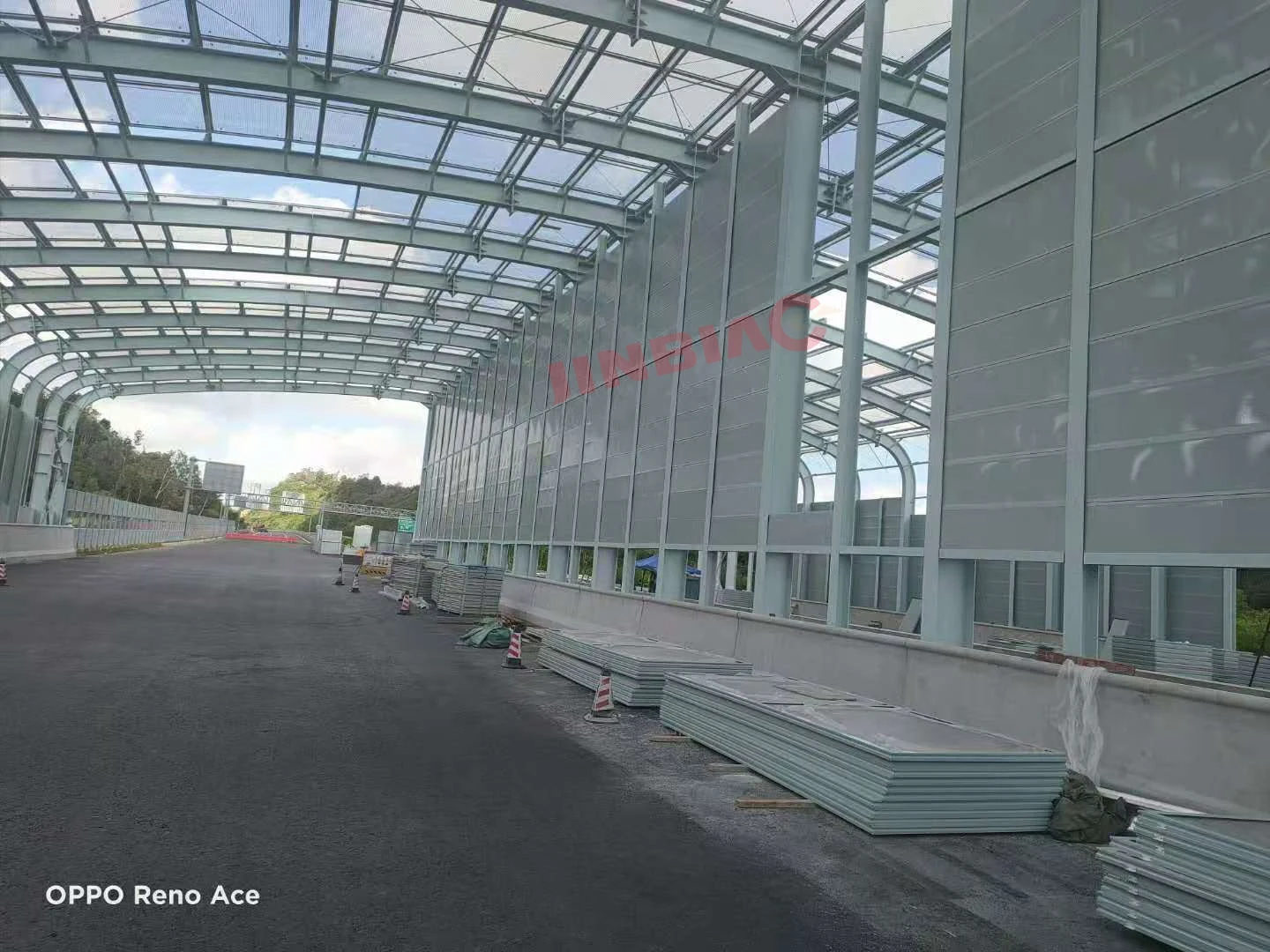

Project case

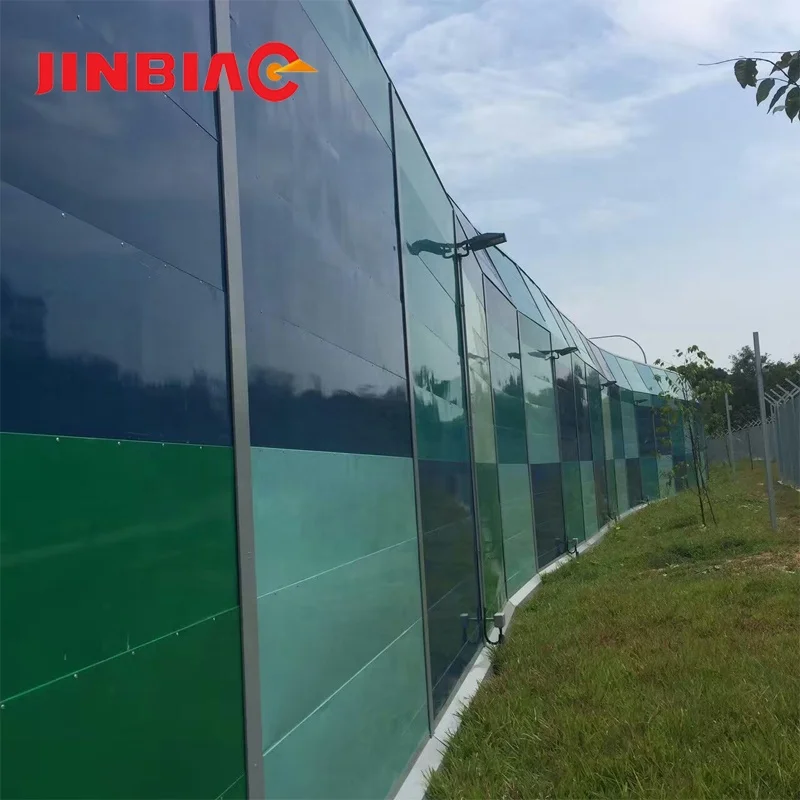

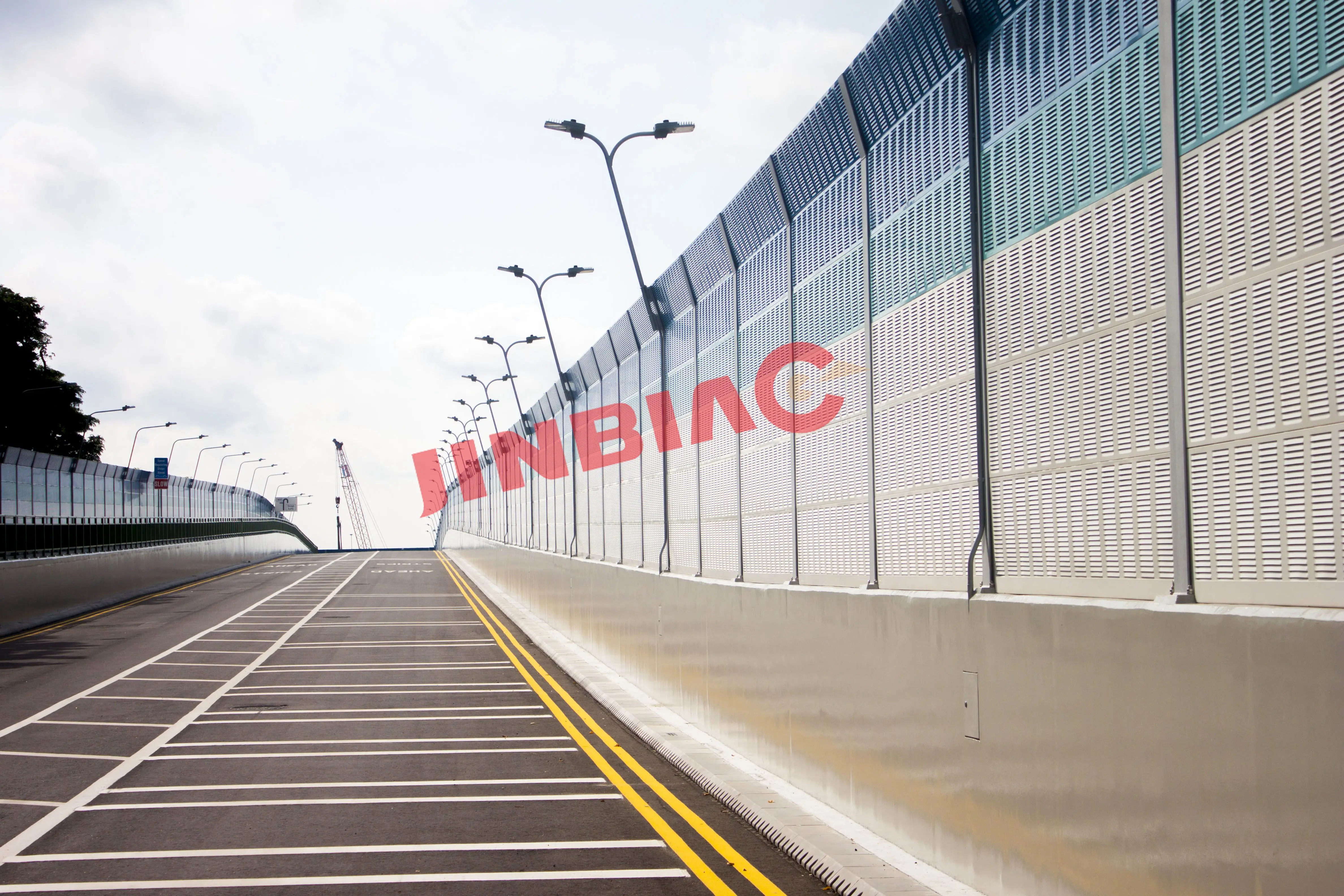

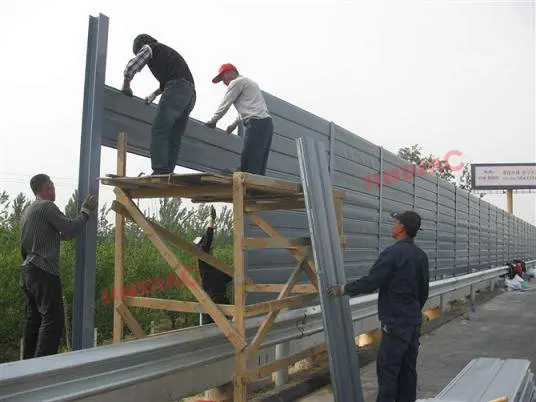

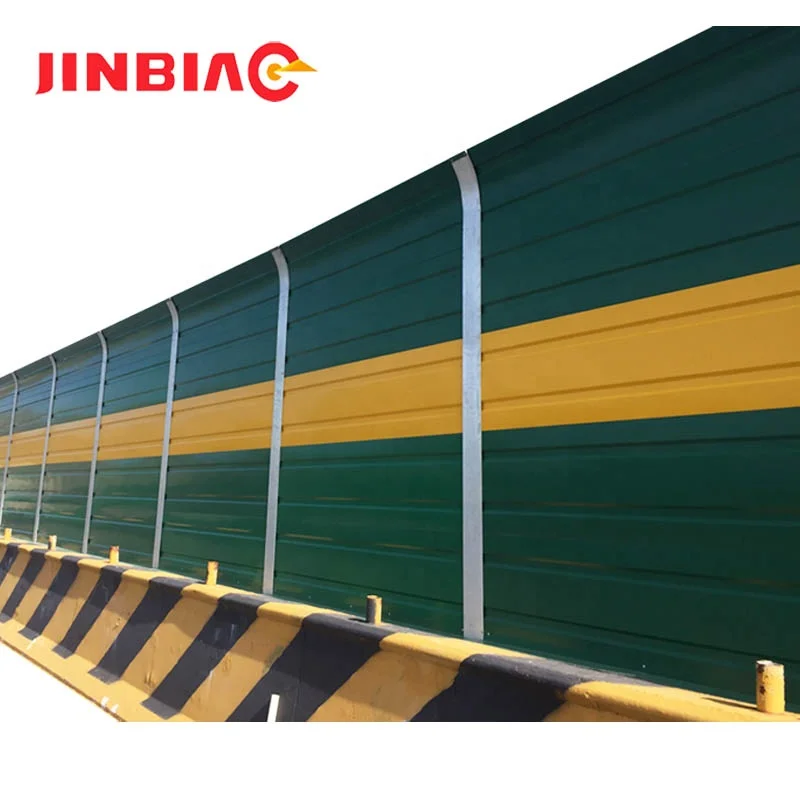

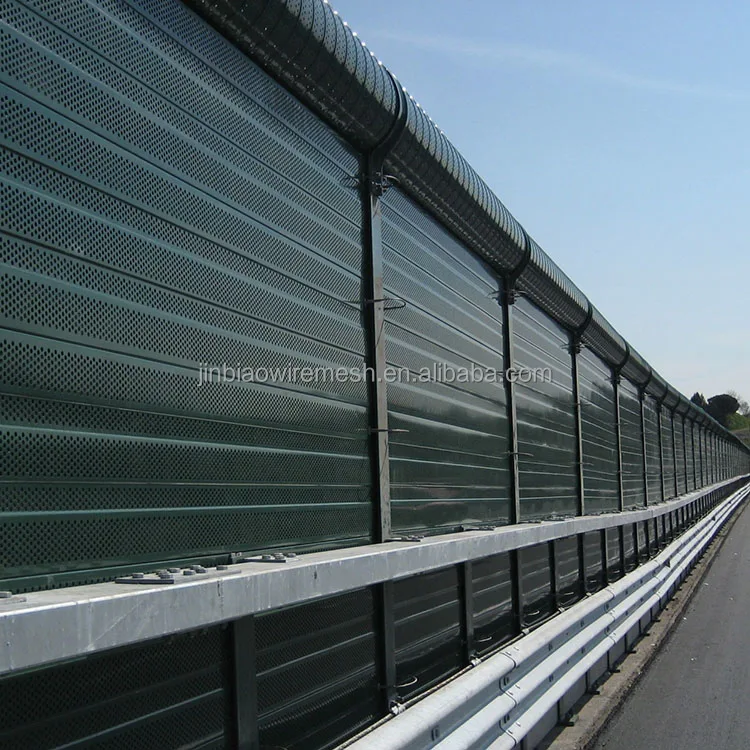

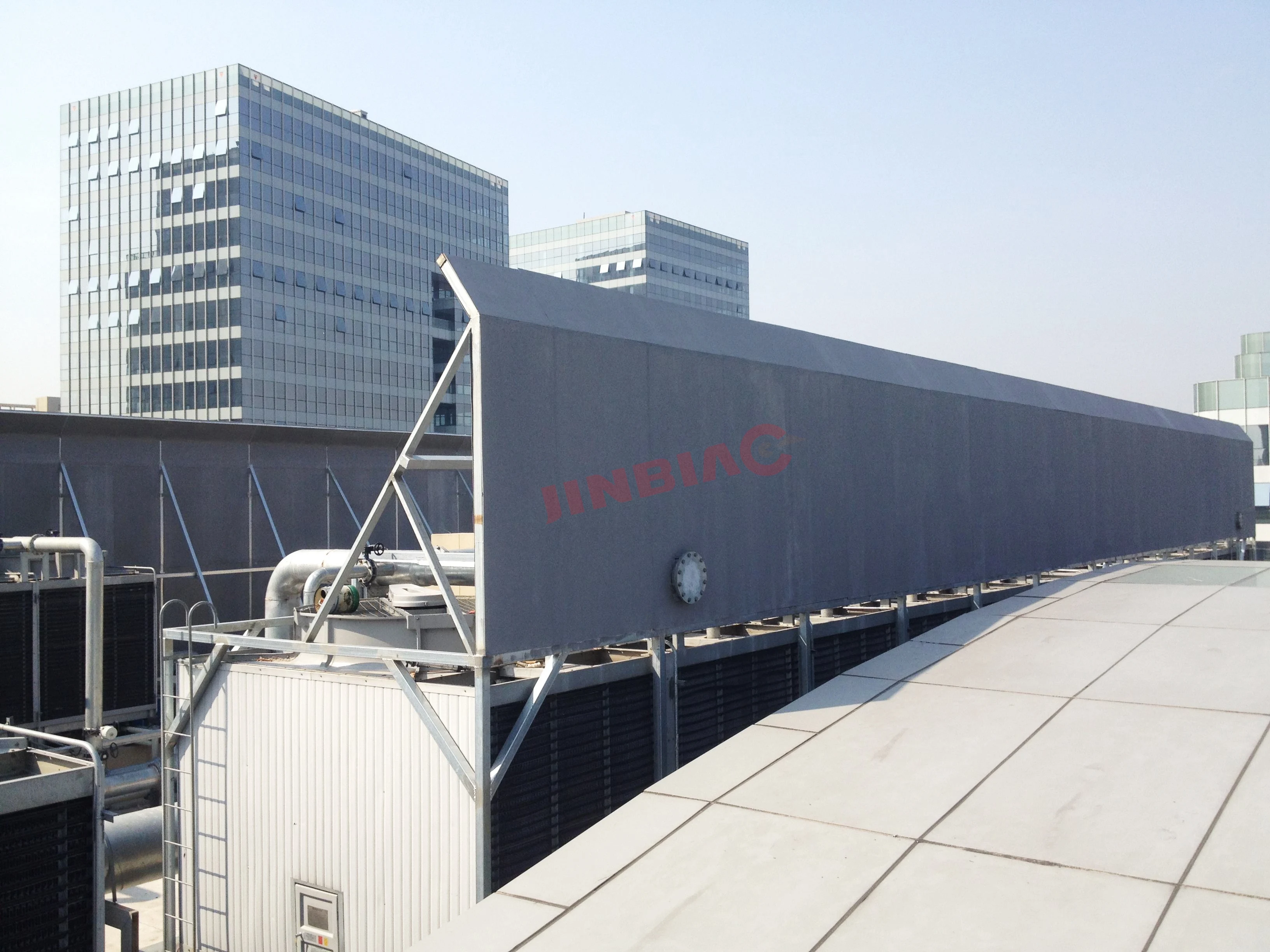

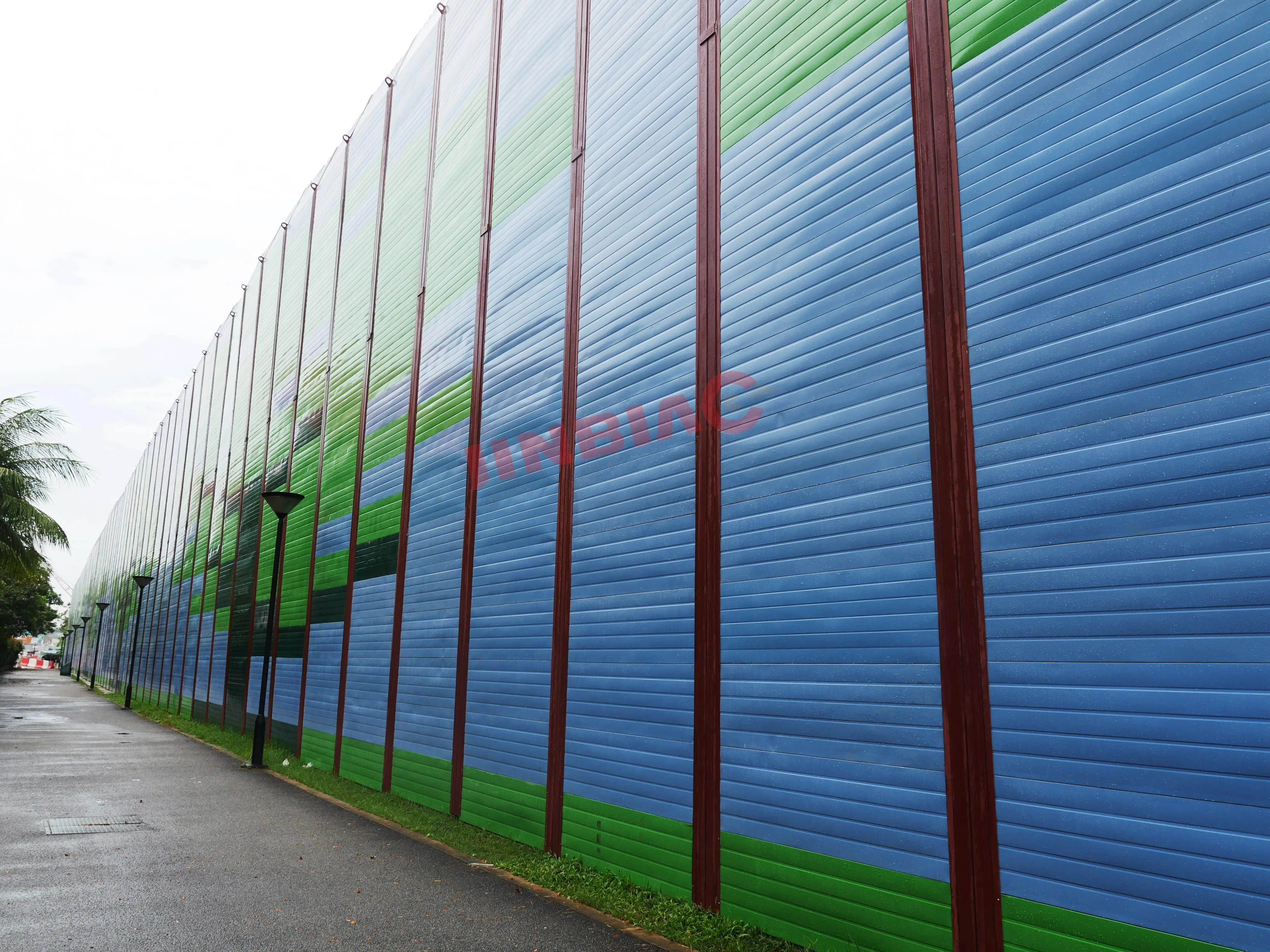

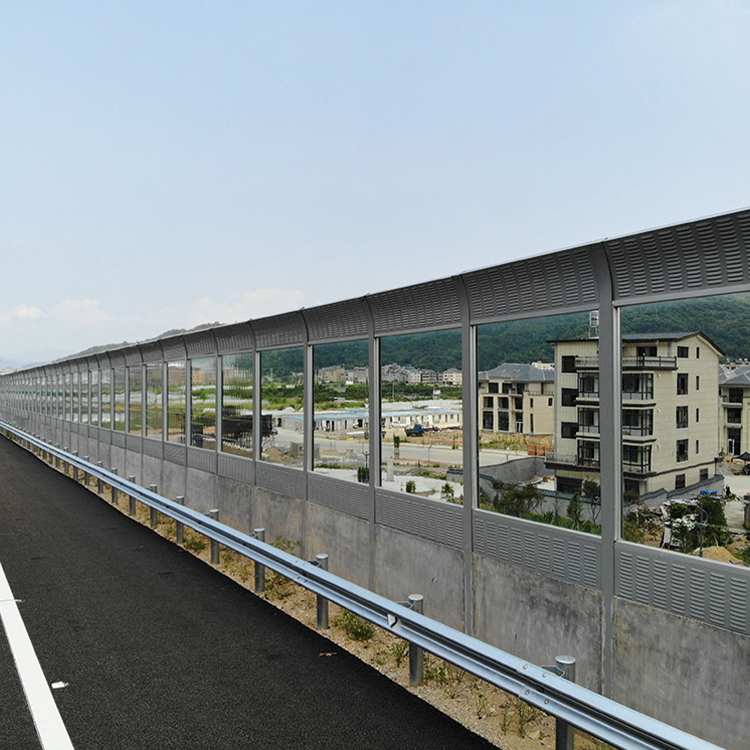

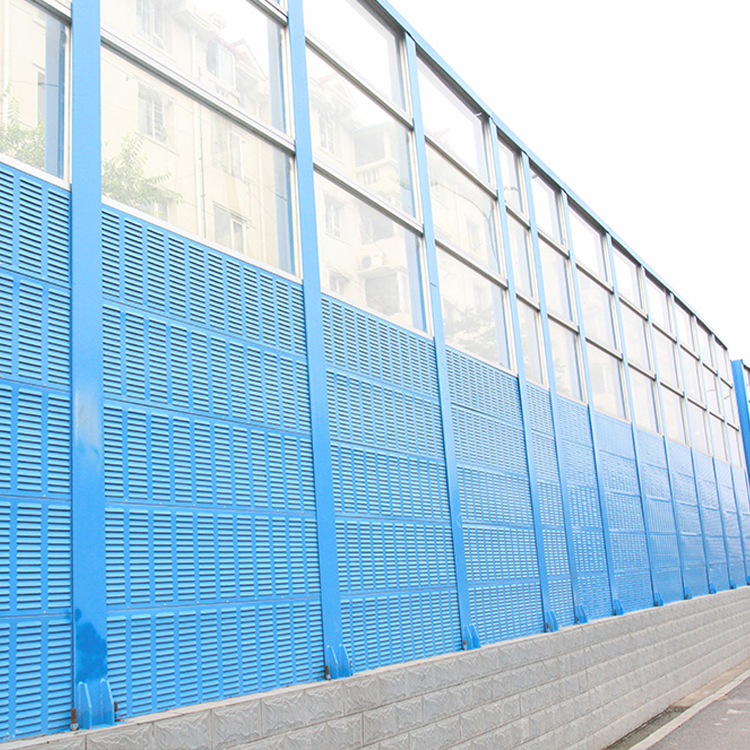

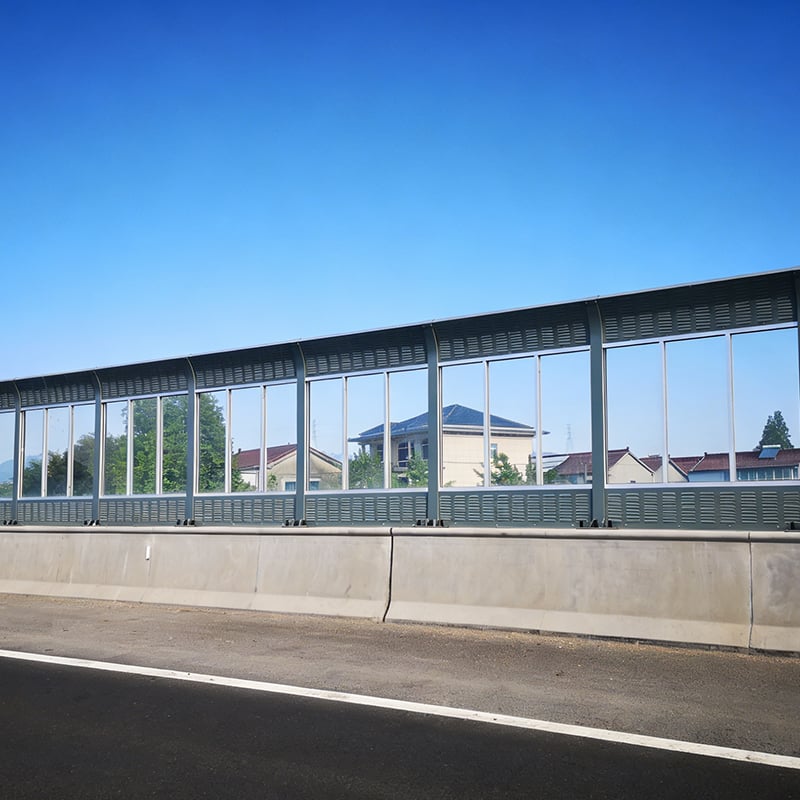

The noise barrier can be applied in many places.Such as highway,railway,viaduct,residential area,factory area,cooling tower, air conditioning unit etc.The following pictures are all our real project cases.

Product Features
﹥Effective Noise Reduction
The perforated metal sheet and sound-absorbing filling materials effectively reduce traffic noise, improving the acoustic environment for nearby residential and commercial areas.
﹥Transparent Design
Transparent acrylic or polycarbonate panels preserve natural light and visibility, minimizing the visual impact on drivers and surrounding communities.
﹥Excellent Wind Resistance
The robust steel framework and reinforced panel structure offer outstanding resistance to strong winds and harsh weather conditions, ensuring long-term structural stability.
﹥Corrosion Resistance
Galvanized steel or aluminum components with optional powder coating provide superior protection against rust and environmental corrosion, making the barriers suitable for outdoor applications.
﹥Aesthetic Integration
The combination of transparent sections and metal sound-absorbing panels creates a modern appearance that blends seamlessly into highways, bridges, and urban landscapes.
﹥Low Maintenance
Durable materials and weather-resistant surfaces require minimal maintenance, reducing operating costs over the service life.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacture with a history of 35 years.

Q: How long is your delivery time?

A: Usually 10-20 days after get the advance payment, urgent order can be discussed.

Q: Can you provide samples ?

A: Yes, we can provide small samples for your reference.

Q: What is your terms of payment ?

A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance ,the balance should be paid before delivery.

Q:Can i customize some other sizes of product?

A:Yes,we can do the product based on customer's requirement.

Q:Which transparent materials are available?
A:PC board, PMMA acrylic, and laminated glass are available, providing different levels of transparency, impact resistance, and acoustic performance.
Q:Can different panel types be combined in one project?
A:Yes. Metal sound-absorbing panels can be combined with transparent panels to achieve both noise reduction and visibility requirements.
Q:Which material is best for outdoor applications?
A:Galvanized steel combined with PC, PMMA, fiberglass, or laminated glass provides excellent durability and weather resistance for long-term outdoor use.
Q:Can you manufacture customized sizes?
A:Yes. Height, width, thickness, colors, and structural configurations can be customized according to engineering drawings and project requirements.
Q:Do you supply complete systems?
A:Yes. We provide complete noise barrier systems including panels, steel posts, fastening accessories, and technical support.
