Product Description

PRODUCTION DECRIPTION

product made in china single axis solar sun tracker solar tracking systems with slew drive-1

product made in china single axis solar sun tracker solar tracking systems with slew drive-2

PRODUCT DETAILS

Single axis tracking Control system parameters
Tracking mode	Astronomical algorithm+inclination feedback
Tracking range	±45～60°	Tracking accuracy	＜1°
Supply electricity	AC 110/240V(optional DC 24)	Drive type	Rotary drive/linear drive
Driving power	＜200W	Drive motor	DC 24
Working wind speed	38mph（17m/s）	F2F mode	Bluetooth / manual
Intelligent tracking mode	support	UPS power supply	Optional
Intelligent gale protection mode	support	Self cleaning mode in rainy days	Optional
Anti shadow tracking mode	support	Heavy snow mode	Optional
Night return mode	support	Rainy day mode	Optional
GPS	support	Remote monitoring mode	Optional
Communication mode	Wired / wireless	protection grades	IP 65
communication agreement	Modbus	Working temperature	﹣20～60°（﹣30～70°）

MORE PRODUCTS

product made in china single axis solar sun tracker solar tracking systems with slew drive-3

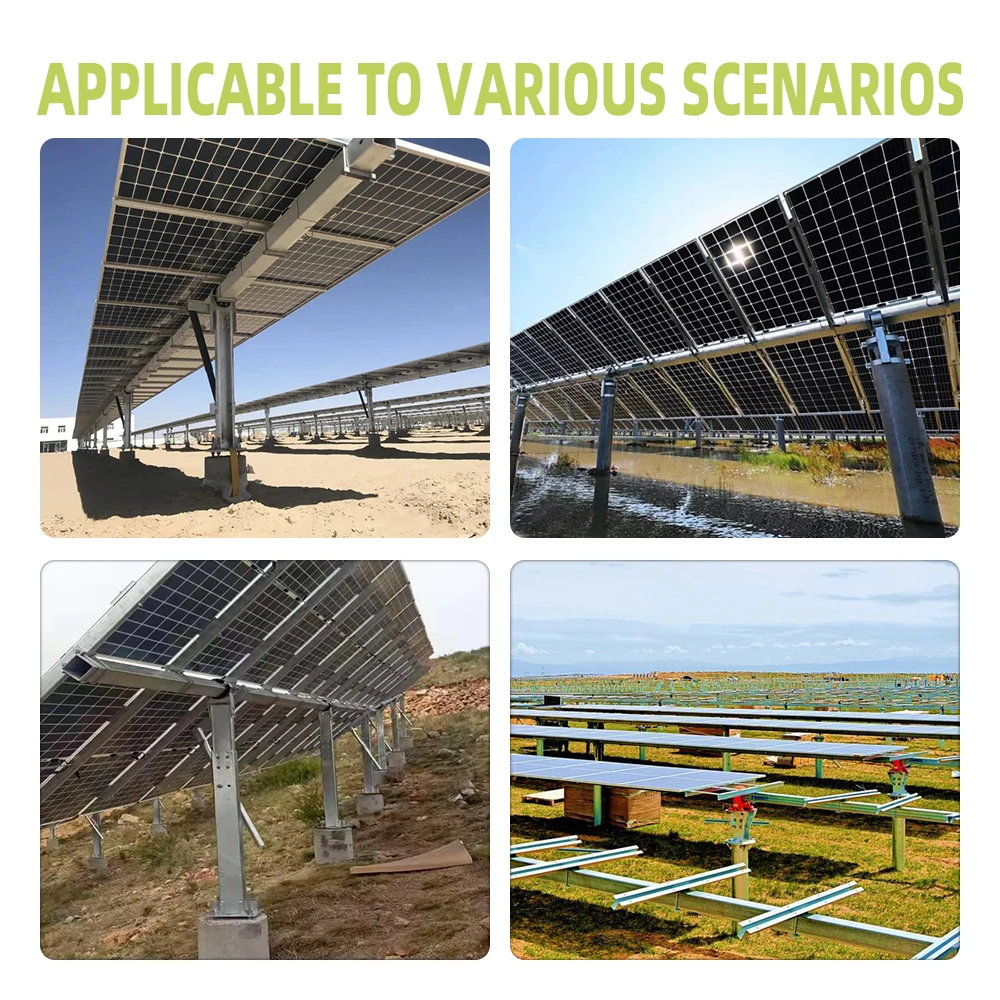

APPLICATION

product made in china single axis solar sun tracker solar tracking systems with slew drive-4

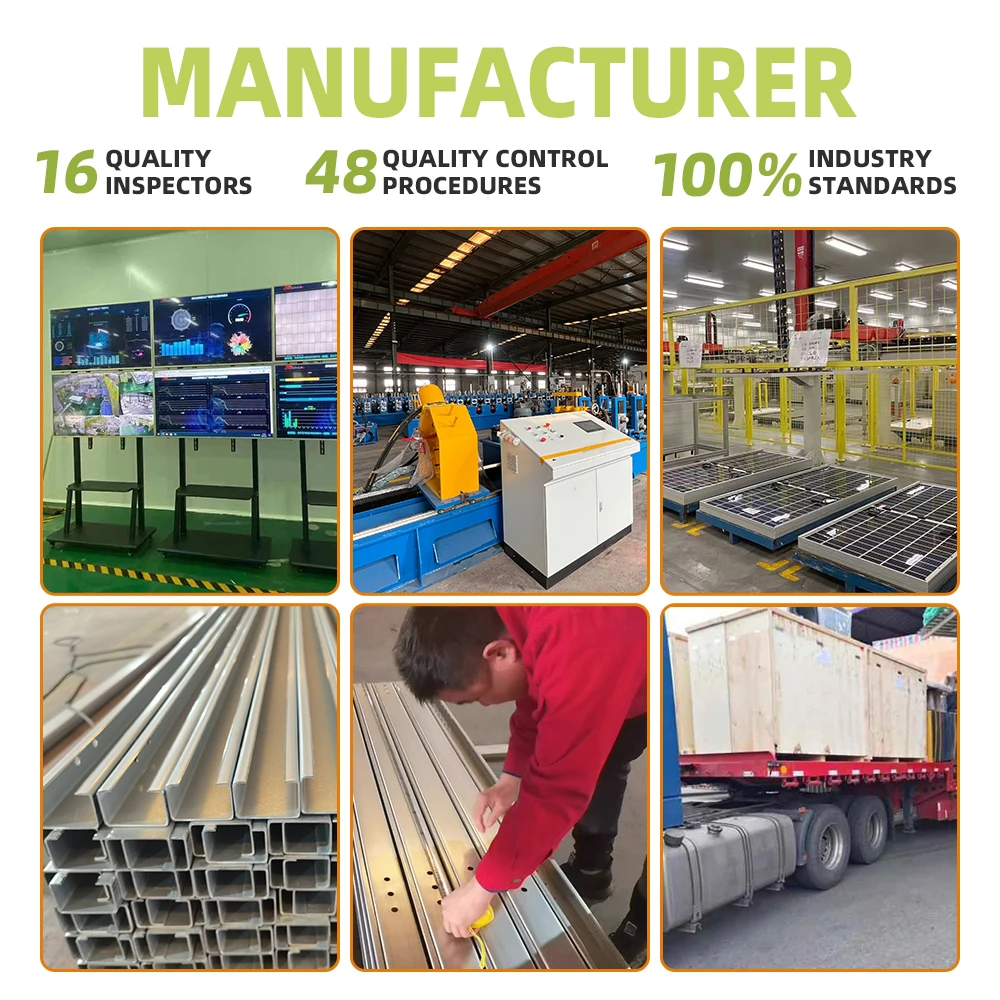

ABOUT US

product made in china single axis solar sun tracker solar tracking systems with slew drive-5

Certifications

product made in china single axis solar sun tracker solar tracking systems with slew drive-6

PACKAGING & SHIPPING

product made in china single axis solar sun tracker solar tracking systems with slew drive-7

FAQ

1.What is the optimal angle for roof single axis solar tracking system?

Single axis solar tracking system has a maximum angle of 90 degrees.

2.What is the post distance of the single axis solar tracking system? How many photovoltaic panels can be installed on it? And what is the area of one system takes?

The single axis solar tracking system should be measured according to the latitude and longitude of the sun, you can provide me the project location, then I can give you a plan within 24 hours.

3. How to measure the array spacing of single axis solar tracking system?

According to the latitude and longitude of the sun, the shadow blocking in different regions is different.

4.What is the differences between single axis solar tracking system and solar mounting system, can you compare them from price and power generation?

The price of single axis solar tracking system is 10-20% higher than solar mounting system, power generation is 20% higher than solar mounting system.

5.How long is the warranty period of the rotary motor?How long is the service life? What brands do you have?

The structure of the tracking bracket is guaranteed for 10 years, the electrical appliances are guaranteed for 3 years, and the service life is 25 years. The rotary motor are supplied by our long-term cooperative suppliers, and they are all first-tier brands in China.
