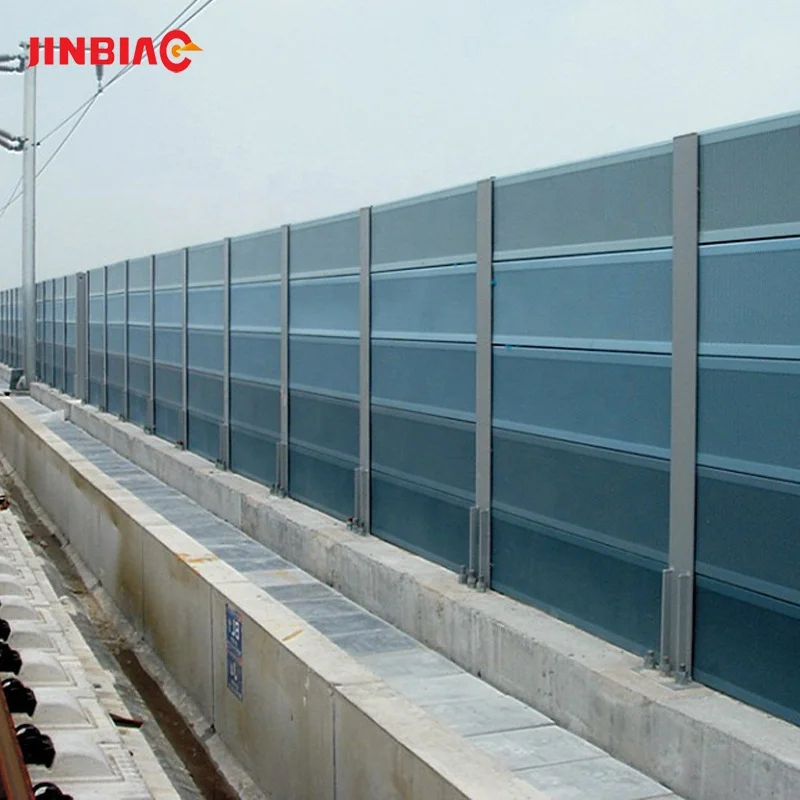

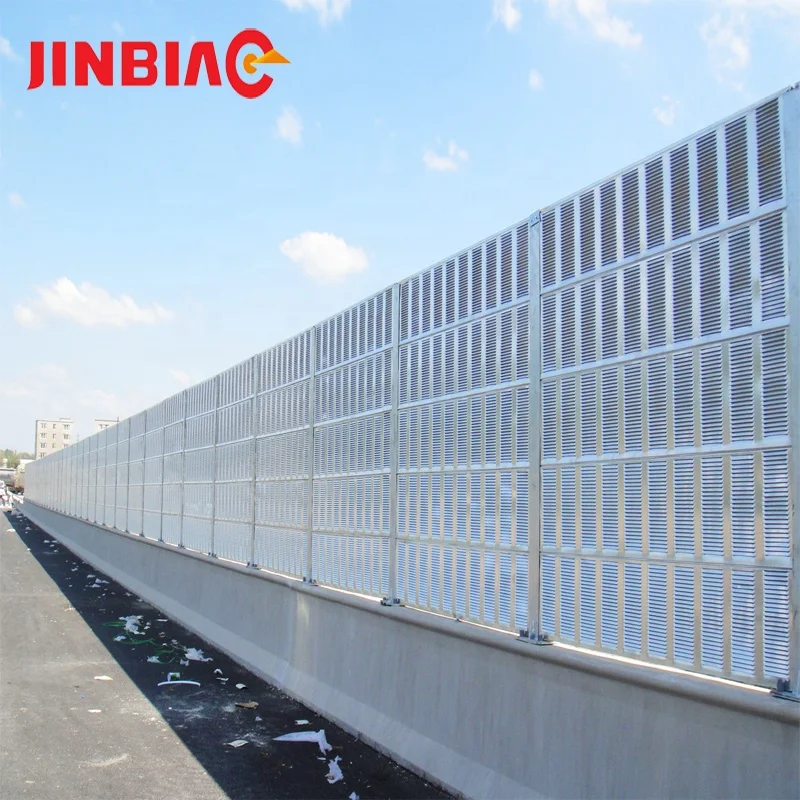

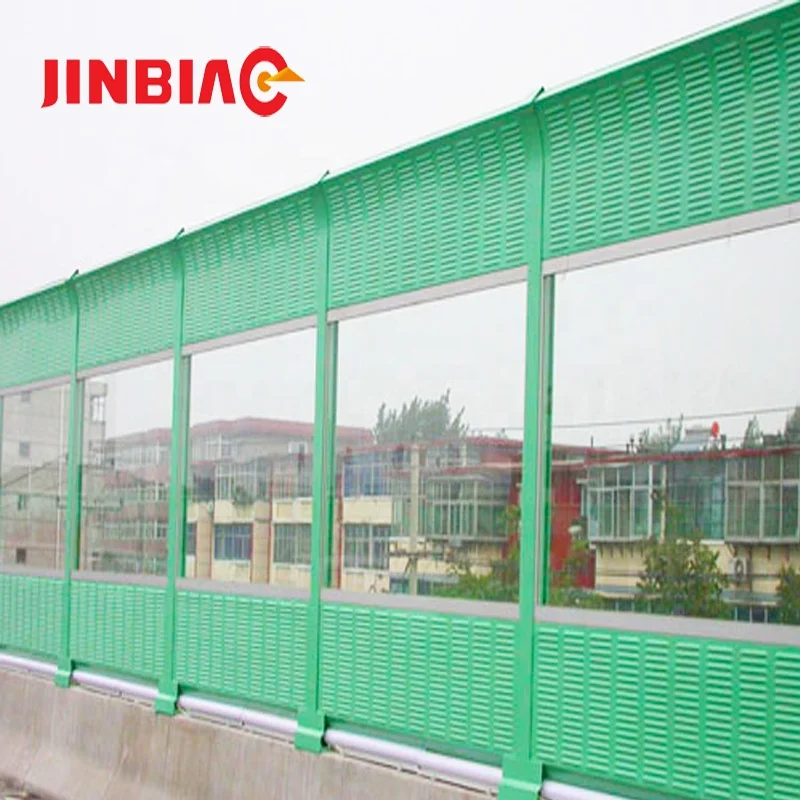

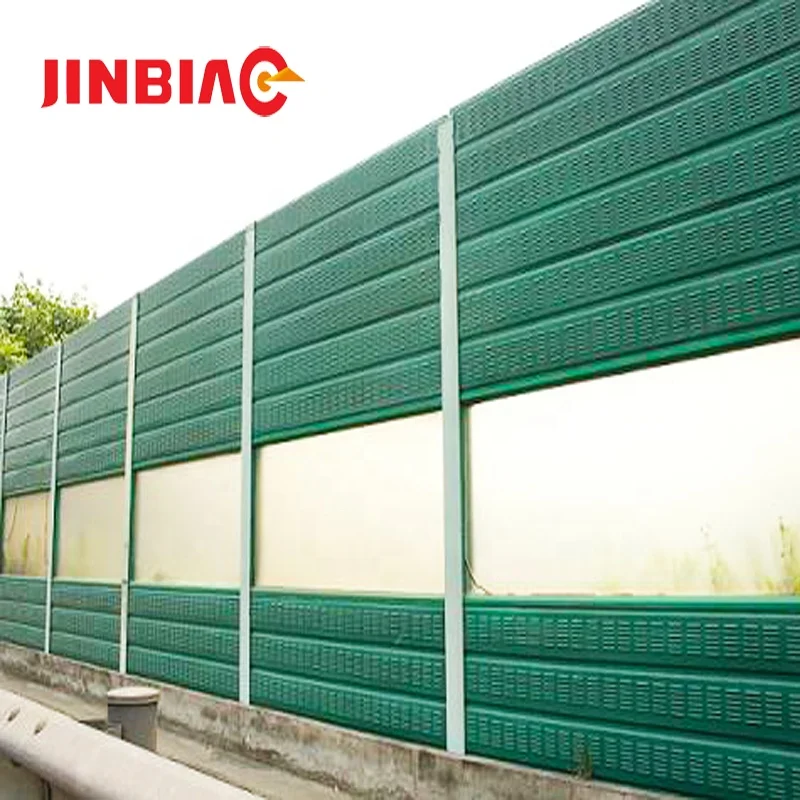

The JINBIAO PVC noise barrier wall features an innovative 3D design that combines effective noise reduction with modern aesthetics. Specially engineered for highways and outdoor environments, it offers excellent durability, weather resistance, and long-term performance, backed by a reliable 5-year warranty and full customization options.
Factory Hot Sale Made in China JINBIAO noise acoustic sound barrier wall
Width |
≥0.5m |
Hight |
Customize, larget is 4.0m |
Thickness (unit piece) |
≥33mm, popular is 80mm, 100mm, 120mm |
Material |
aluminum ,galvanized steel sheet ,etc |
Flange plate |
Customize |
Packing |
in pallet or in bulk |
RW |
≥35dB |
NRC |
≥0.84 |
Post |
H steel post |
Factory Hot Sale Made in China JINBIAO noise acoustic sound barrier wall

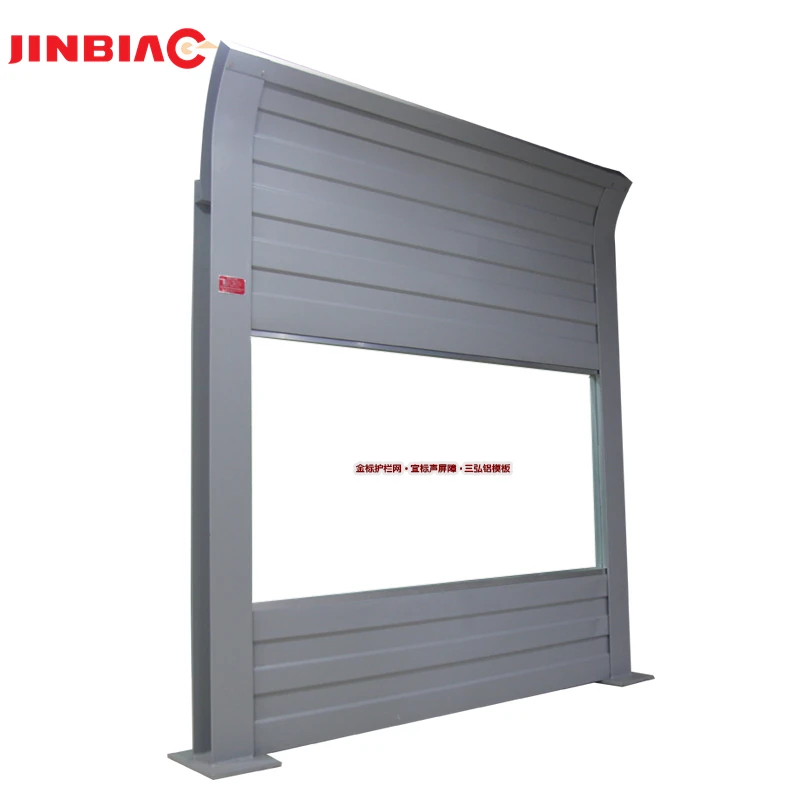

1.Specifications for Noise barrier
Sound Barrier thickness: 80mm, 100mm,120mm
Sound Barrier size: 2500x500x80mm, 2500x500x100mm, etc.
Sound Barrier metal plate thickness: 0.5-1.2mm
Sound Barrier H-post: 100x100x6x8mm, 125x125x6.5x9mm, 150x150x7x10mm, 175x175x7.5x11mm.
Sound Barrier flange plate: 250x250x10, 300x300x10, 350x350x10, 400x400x10mm etc.
2.More details for Noise barrier
1. Selected materials and innovative structure, non-corrosion after exposing in the environment;
2. High strength, and non-deforming;
3. Light weight , can reduce the acoustic shield base and the strength of column, and bring convenience to site installation;
4. Ideal landscape effects, different models that conform to the environment can be designed according to the customer's needs;
5. Excellent sound absorption effects, can satisfy the needs of various noise sensitivity;
6. Convenient maintenance, non-fading, easy washing and change after damage.
