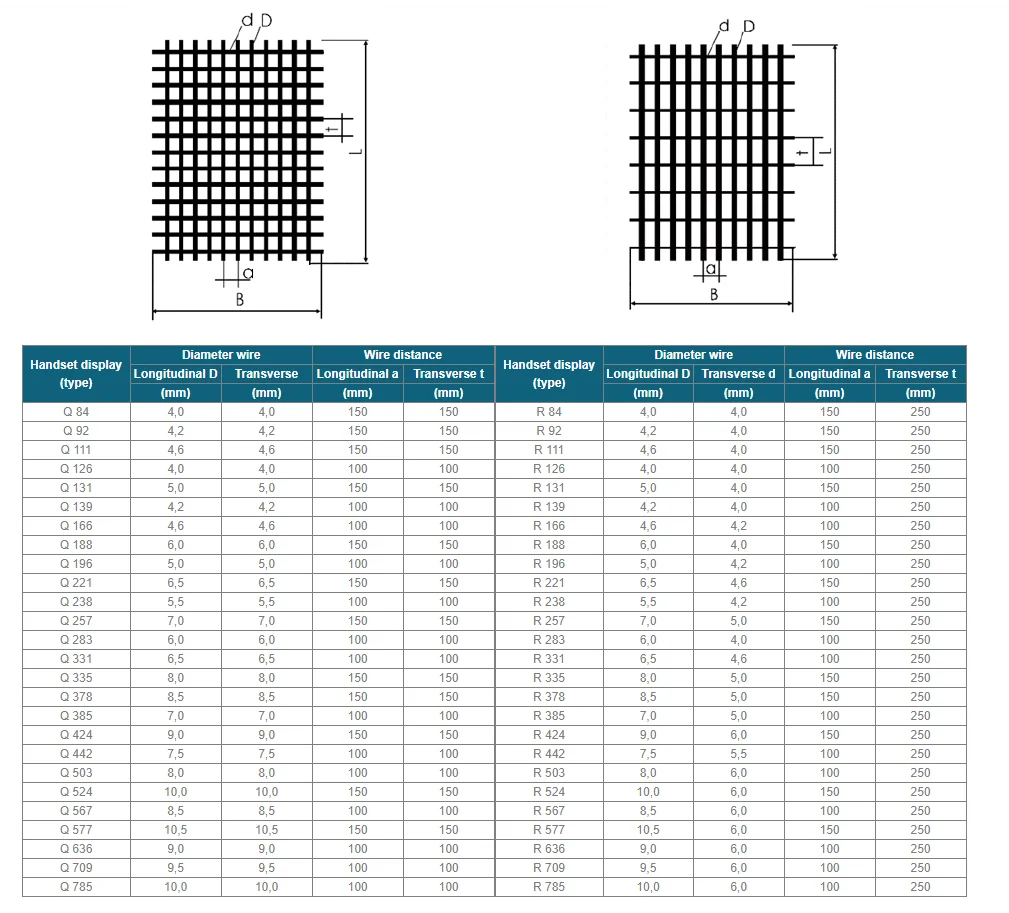

1.GERMAN STANDARD DIN488 (SIZE:2150MMX5000MM) |
||||||||||||
Ref No. |
Std Unit |
Longitudinal Wires(mm) |
Cross Wire(mm) |
Pitch of Wire(mm) |
Mass (Kg) |
Mass (Kg/m2) |
||||||
Q131 |
Sheet |
5 |
5 |
150@150 |
22.476 |
2.091 |
||||||
Q181 |
Sheet |
6 |
6 |
150@150 |
32.401 |
3.014 |
||||||
Q221 |
Sheet |
6.5/5.0 |
6.5 |
150@150 |
33.707 |
3.316 |
||||||
Q295 |
Sheet |
7.5/5.5 |
7.5 |
150@150 |
44.245 |
4.116 |
||||||
Q378 |
Sheet |
8.5/6 |
8.5 |
150@150 |
66.659 |
5.157 |
||||||
2. Australia/New Zealand standard AS/NZS 4671:2001(SIZE:6000X2400mm) |
||||||||||
Ref No. |
Std Unit |
Longitudinal Wires(mm) |
Edge wires (mm) |
Cross Wires(mm |
Mass(Kg) |
|||||
SL81(F81) |
Sheet |
7.6 @100 |
7.60 @100 |
7.60 @100 |
105 |
|||||
SL102(F102) |
Sheet |
9.5 @200 |
6.75 @100 |
9.50 @200 |
80 |
|||||
SL92(F92) |
Sheet |
8.6 @200 |
6 @100 |
8.60 @200 |
66 |
|||||
SL82(F82) |
Sheet |
7.6 @200 |
5.37 @100 |
7.60 @200 |
52 |
|||||
SL72(F72) |
Sheet |
6.75 @200 |
4.77 @100 |
6.75 @200 |
41 |
|||||
SL62(F62) |
Sheet |
6@200 |
4.77 @100 |
6 @200 |
33 |
|||||
SL52(F52) |
Sheet |
4.77 @200 |
4.77 @100 |
4.77 @200 |
21 |
|||||
3.BRITISH STANDARD BS4483 |
||||||||||||
Ref No. |
Std Unit |
Longitudinal Wires(mm) |
Cross Wires(mm |
Pitch of wire (mm) |
No. of sheet per ton |
Mass (kg/m2) |
||||||
A393 |
Sheet |
10 |
10 |
200@200 |
15 |
6.16 |
||||||
A252 |
Sheet |
8 |
8 |
200@200 |
22 |
3.95 |
||||||
A193 |
Sheet |
7 |
7 |
200@200 |
29 |
3.02 |
||||||
A142 |
Sheet |
6 |
6 |
200@200 |
40 |
2.22 |
||||||
A98 |
Sheet |
5 |
5 |
200@200 |
57 |
1.54 |
||||||
