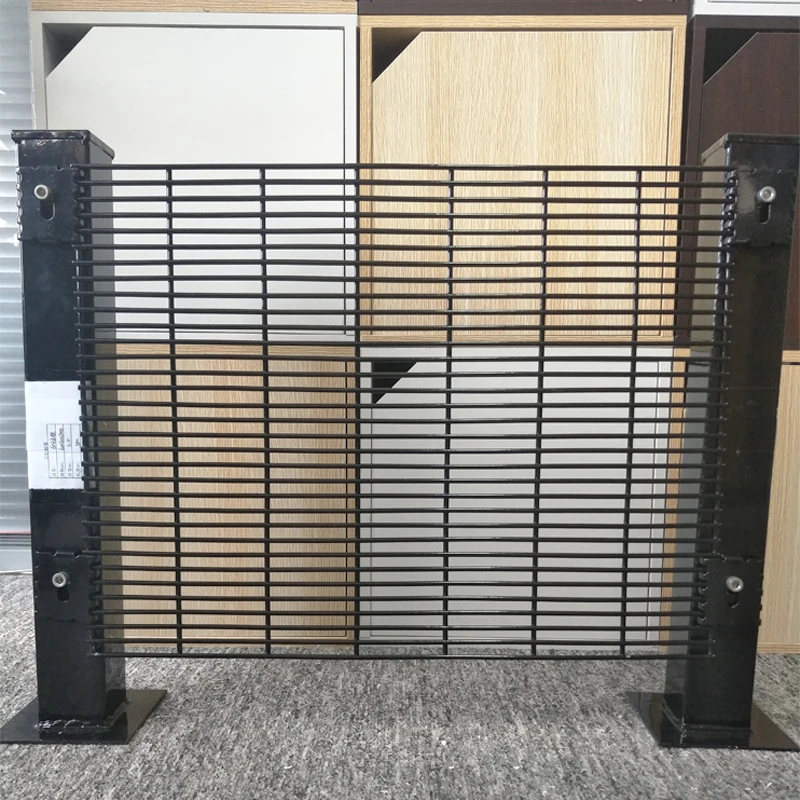

358 Anti Climb High Security Mesh Fence
1) Security for 358 Hi-Security System
Panels |
Posts |
||||
Fence |
Panel Size |
section |
O/A Length |
Total number of fixings |
|
height |
Height/Width |
Inters- 1 Clamp bar |
Corners- 2 Clamp bars |
||
m |
mm |
||||
2.0 |
2007 x 2515 |
60x60x2.5mm |
2700 |
7 |
14 |
2.4 |
2400 x 2515 |
60x60x2.5mm |
3100 |
9 |
18 |
3.0 |
2997 x 2515 |
80x80x2.5mm |
3800 |
11 |
22 |
3.3 |
3302 x 2515 |
80x80x2.5mm |
4200 |
12 |
24 |
3.6 |
3607 x 2515 |
100x60x3mm |
4500 |
13 |
|
3.6 |
3607 x 2515 |
100x100x3mm |
4500 |
26 |
|
2) Security for 358 Maximum Security System
Panels |
Posts |
||||
Fence |
Panel Size |
section |
O/A Length |
Total number of fixings |
|
height |
Height/Width |
Inters- 1 Clamp bar |
Corners- 2 Clamp bars |
||
m |
mm |
||||
4.2 |
4204 x 2515 |
100x100x4mm |
5200 |
15 |
30 |
4.5 |
4496 x 2515 |
100x100x5mm |
5500 |
16 |
32 |
5.2 |
5207 x 2515 |
120x120x5mm |
6200 |
18 |
36 |
I.JINBIAO anti climb fence:
1.Corrosion resistance, security fence, anticlimb, resistance to cut by hands and tools.

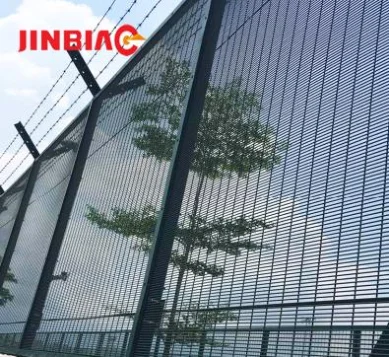

2.Razor wire can be add to the installation to increase security furthermore.
3.Welded at each intersection, hence an effective deterrent to would be intruders
II. Anti climb fence post specification
1. Post: 60x60mm;60x80mm;80x100mm; 80x120mm
2. Surface treatment : Hot dipped galvanized, electro galvnaized , powder painting
3. Anti climb fence color: Green, blue, black,white,yellow, red etc.
III.Anti climb fence application:

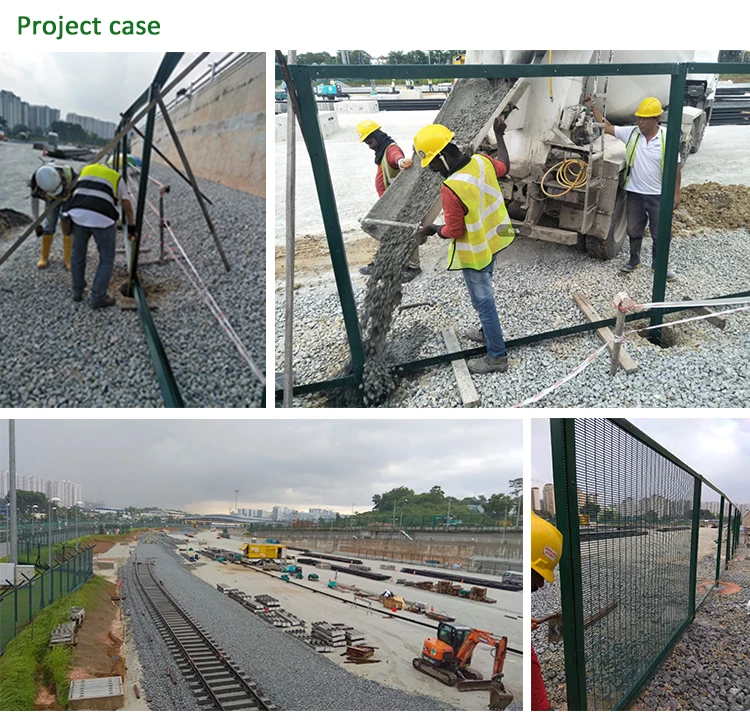

Widely used in prison fence,airport, security fence.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: It will take about 10-20 days after get the deposit, urgent order can be discussed.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment ≤1000USD, 100% in advance. Payment > 1000USD, 30% T/T in advance ,balance before shippment.
