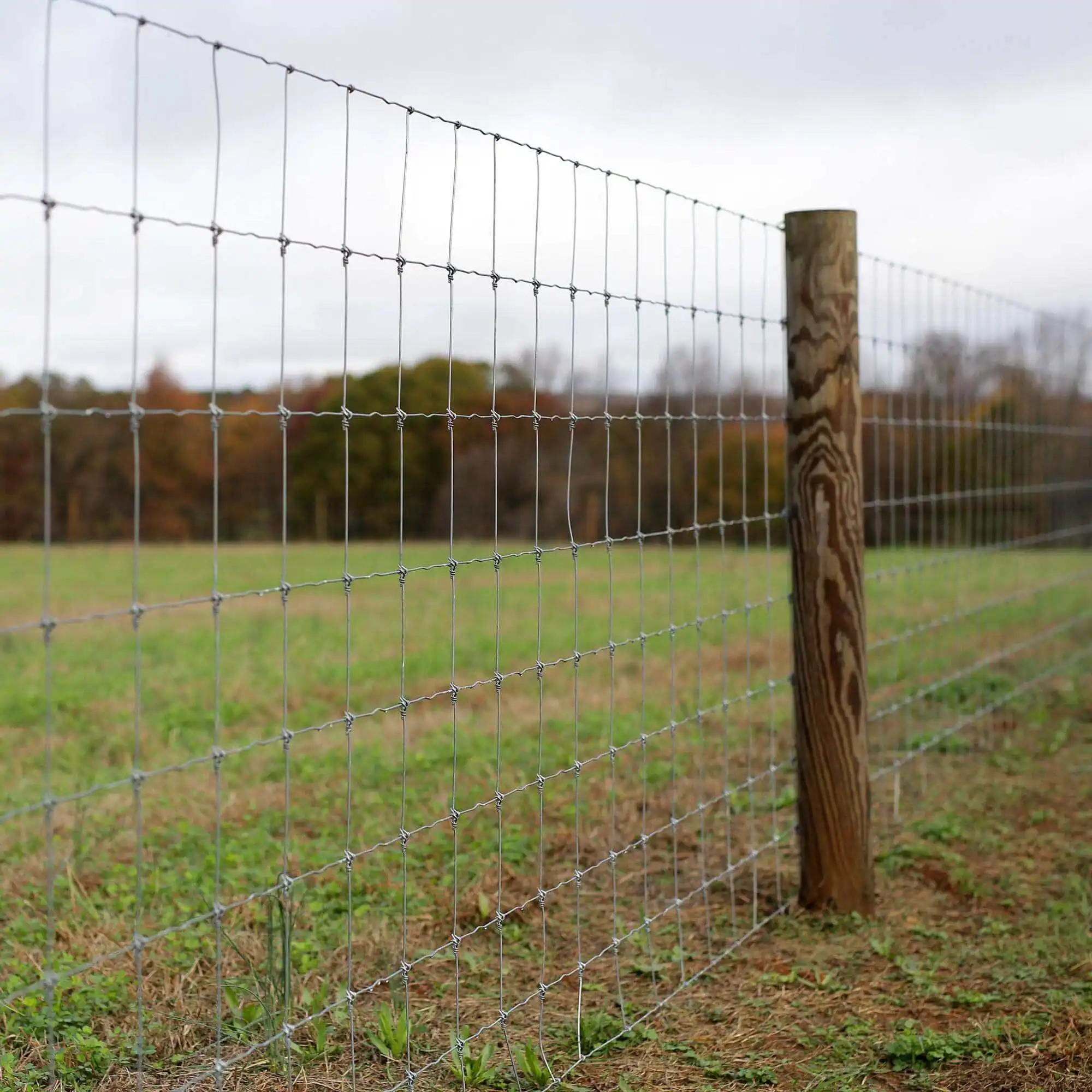

Galvanized Field Fence Wire 8Ft Cattle Sheep Goat Livesstock Field Fence

Products

Product Description
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-1
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-2
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-3

Product Introduction

Diameter: 1.8-2.5mm(, inner wire ), 1.8-3.5mm( outer wire) Height: 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m,1.8m,2m,2.4m Length:165 inch (50m) or 330 inch (100m) Zinc coating: normally 60-100g per square meter, max 230-2 China wire mesh fence for boundary wall 40g per square Produce process: examine wire- hot dipped galvanized-weaving-packaging .The tensile of strength,diameter and Zinc coating of wire,we can produce as your request. More detailed information about the specification as follows:

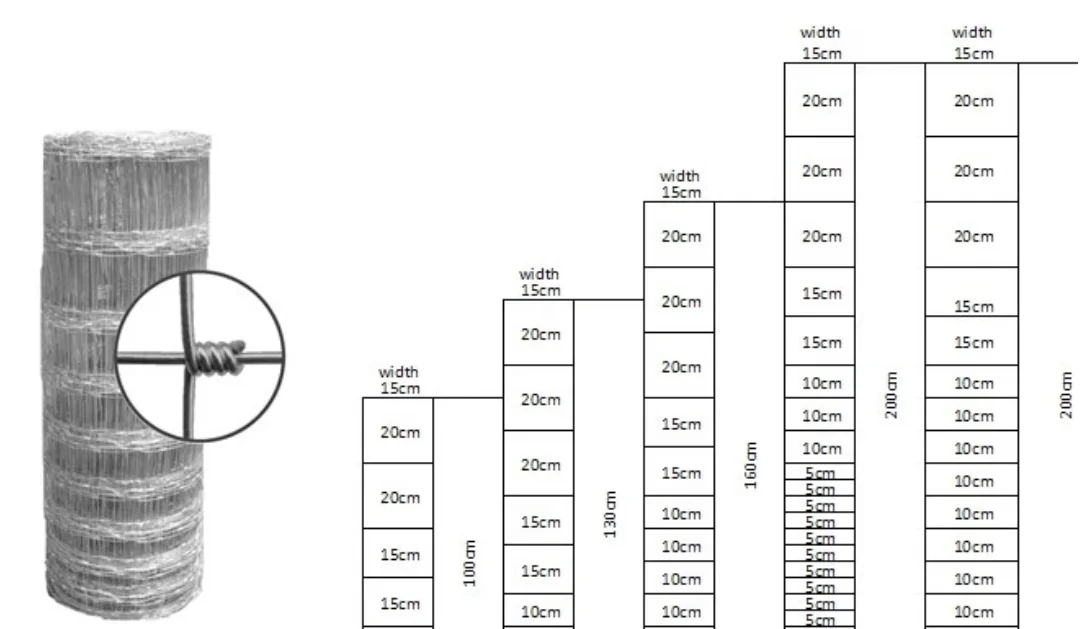

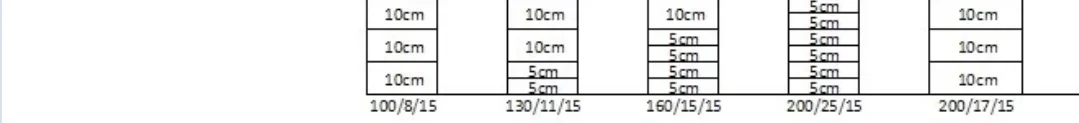

Size
Number of warp wire
Roll width
Edge warp wire
Middle weft wire
Warp wire
91L 5/7015
5
700mm
2.8mm
2.5mm
2.5mm
91L 8/110/15
8
1100mm
2.8mm
2.5mm
2.5mm
91L/ 5/70/30
5
700mm
2.8mm
2.5mm
2.5mm
91L 6/70/30
6
700mm
2.8mm
2.5mm
2.5mm
91L 6/90/30
6
900mm
2.8mm
2.5mm
2.5mm
91L 7/90/30
7
900mm
2.8mm
2.5mm
2.5mm
91L8/110/30
8
1100mm
2.8mm
2.5mm
2.5mm
91L 6/90/60
6
700mm
2.8mm
2.5mm
2.5mm
91L 7/90/60
7
900mm
2.8mm
2.5mm
2.5mm
91L 7/100/60
7
1000mm
2.8mm
2.5mm
2.5mm
91L 7/100/60
7
900mm
2.8mm
2.5mm
2.5mm
91L 8/100/60
8
1100mm
2.8mm
2.5mm
2.5mm
91L 7/110/60
7
1100mm
2.8mm
2.5mm
2.5mm
91L 8/110/60
8
1100mm
2.8mm
2.5mm
2.5mm
Square tube style
Height*Length
1m*2.1m,1m*2.9m,1.8m*2.1m
horizontal rails
40*40mm,50*50mm (6 square rail)
vertical pipe
40*40mm,50*50mm
Thickness
1.6mm, 2.0mm
material
pre hot dipped galvanized steel pipe
Accessories
2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panel2 pins are included in 1 panel
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-4
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-5
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-6
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-7
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-8
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-9
Grassland construction in pastoral areas can include enclosure of grassland, fixed-point grazing and separate grazing. It is convenient for the planned use of grassland resources, effectively improve grassland utilization and grazing efficiency, prevent grassland degradation and protect the natural environment. At the same time, it is also suitable for establishing family farms with farmers and herdsmen, setting up border defense, farmland fence, forest nursery, closing hillsides for afforestation, enclosure of tourist areas and hunting areas, isolation and maintenance of construction sites, etc.
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-10
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-11
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-12
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-13
About us
Hebei Jinbiao Construction Materials Tech Corp., Ltd was located in Anping county ,Heibei province , it was found in 1990 as a manufacture engaged in the research & development, production, sale and service of wire mesh fence and sound barriers.
In Shijiazhuang, 26 December 2014, the company was listed on the stock exchange, becoming the first locally listed company in the area. Now Jinbiao covers an area of 133,200 square meters ,has a registered capital of 101 million CNY and has developed into a multiple corporate enterprise. Product Quality: Our products have passed ISO9001 certificate of quality management system, CE product certification, and established a long-term cooperation with Acoustic Institutions in Southeast Asia. Besides JINBIAO sets up a special quality inspection team to ensure that all products are well-qualified.
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-14
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-15
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-16
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-17
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-18
product galvanized field fence wire 8ft cattle sheep goat livesstock field fence-19
1:Are you a munufacturer or a trading company? We are a munufacturer which has 30 years history.
2:Where is your factory? How to visit it? HEBEI JINBIAO CONSTRCTION MATERIALS TECH CORP.,LTD was established in 1990,which located in Anping county,Hebei.
3:How do we control our products quality? WE have professional quality control workers and quality inspection machine to control the wntire production quality.
