Galvanized steel grating is one of the few building materials that arrives on site as a finished structural product: it carries load, drains, ventilates and needs no surface finishing after installation. Hebei Jinbiao supplies it as a building material for platforms, stair treads, ceilings and floor openings, cut and packed to the project. The specification below sets out what can be produced, and the notes explain which variables actually change the price and the lead time.
Specification range
• Product: hot dip galvanized steel grating
• Material: low carbon steel, middle carbon steel, stainless steel, Q235

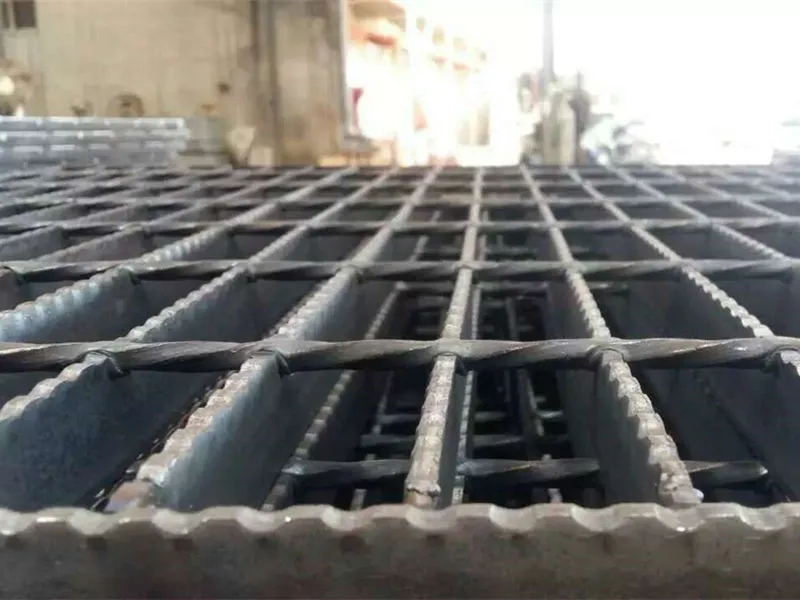

• Bearing bar type: flat bar, serrated bar, I bar
• Bearing bar size: 20 × 3, 20 × 5, 25 × 3, 25 × 5, 32 × 3, 32 × 5, 35 × 3, 35 × 5, 40 × 3, 40 × 5, 45 × 5, 50 × 5, 55 × 5, 60 × 5, 65 × 5, 100 × 10 mm
• Bearing bar pitch: 15, 20, 25, 30, 33, 38, 40, 50, 60, 80 mm
• Cross bar pitch: 24 mm to 200 mm
• Cross bar size: 6 × 6, 8 × 8, 10 × 10, 12 × 12 mm

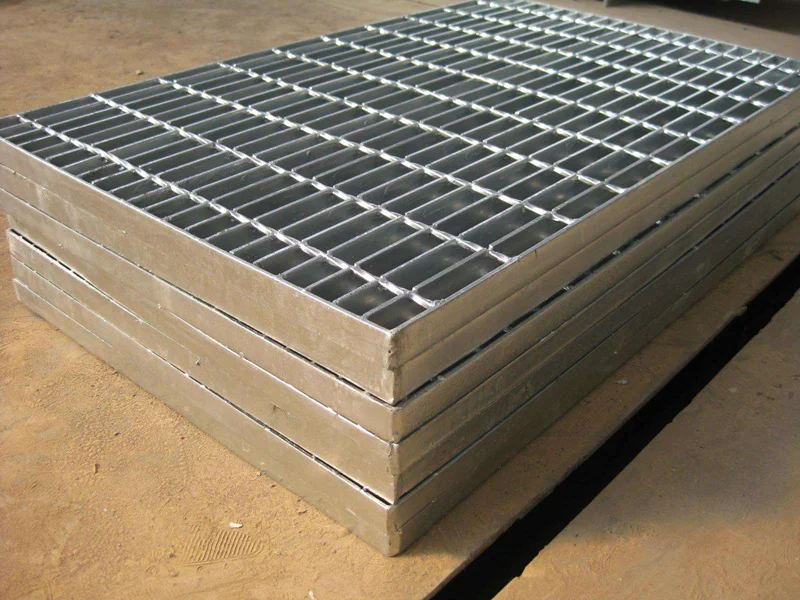

• Packing: pallets in containers, strapped for sea freight
The three variables that set the price
A galvanized steel grating quotation moves with three things. The first is bearing bar size: a 25 × 3 mm bar and a 65 × 5 mm bar are the same footprint of material but a very different weight per square metre. The second is pitch: closing the bearing bar spacing from 40 mm to 25 mm adds bars to every panel. The third is the coating: hot dip galvanising after fabrication protects the cut ends and welds, which electro-galvanised sheet cannot do. Two quotations that look alike on the drawing can differ substantially in weight, and weight is what the mill prices against.
Where the material is used
Because a galvanized steel grating panel is cut to the opening rather than to a stock sheet, the same product serves as a walking surface, a cover and a screen. That flexibility is why it appears across a building rather than in one place.
• Floor walkway and access platform
• Industrial platform and mezzanine decking
• Stair tread and ladder rung
• Metal ceiling and screening panel
• Grating floor mat at entrances
• Manhole cover and ditch cover
• Working platform in plant and process areas
In building work the same panel often serves two roles. A galvanized steel grating platform provides the walking surface and the ventilation for the space below it at the same time, which is why plant rooms and service galleries use it instead of a solid deck. As a ceiling or screening panel it allows air movement above a walkway while closing the visual gap, and it does so without the maintenance that a painted soffit would need.
Finishing and site handling

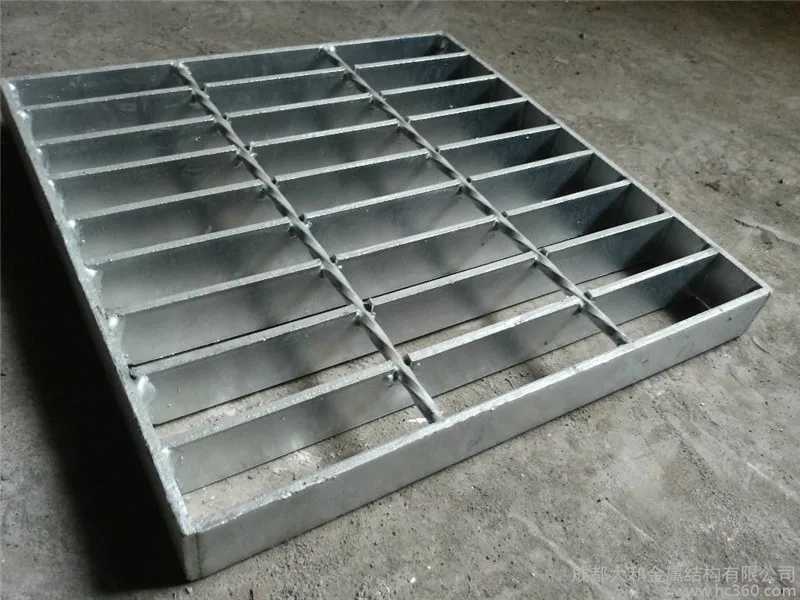

On a galvanized steel grating panel, hot dip galvanising is applied after the panel is welded and cut, so the zinc covers the welds and the panel edges. That is the difference between a grating that stays grey in a damp plant room and one that starts rusting along every cut within a season. On site the panels are lifted by sling rather than by hooking a bearing bar, because a single bar is not designed to carry the panel weight on its own.
What to send for a quotation
For a galvanized steel grating quotation, the useful inputs are the panel size or the opening dimensions, the bearing bar size and pitch, the cross bar pitch, the material grade, and the finish. Where the grating is part of a fabricated assembly, a drawing showing the support positions is more useful than a panel count, because the span between supports decides whether the chosen bearing bar is adequate.
Product Name |
Hot dipped galvanized metal floor grating |
Material |
Low carbon, Middle carbon,stainless steel ,Q 235 |
Bearing bar type |
Flat bar ,serrated bar ,I bar,etc |
Bearing bar size (loading bar size) |
20*3, 20*5 ,25*3 ,25*5, 32*3, 32*5, 35*3, 35*5, 40*3 mm, 40*5 ,45*5, 50*5, 55*5, 60*5, 65*5, 100*10 mm ,etc. |
Bearing bar pitch (Bearing bar spacing ) |
15,20,25,30,33,38,40,50,60,80 mm,etc |
Cross bar pitch |
24 to 200 mm |
Cross bar size |
6*6,8*8,10*10,12*12 mm, etc. |
Application |
Floor walkway,industrial platform ,stair tread,metal ceiling |
Package |
Pallets in containers packed by steel strap and worthy sea shipping or according to the customers' requirements |
