Product Description

Product Application

product bv certified outdoor pvc visual barrier acrylic noise barrier for flyover bridge by manufacturer855-1

Noise pollution

In our times, noise is high among those pollution sources that most impair our quality of life. Ever more traffic, engendered by
continually developing mobility, further aggravates the nuisance. Measures to shield us from such environmental burdens are thus
assuming increasing and crucial importance.

product bv certified outdoor pvc visual barrier acrylic noise barrier for flyover bridge by manufacturer855-2

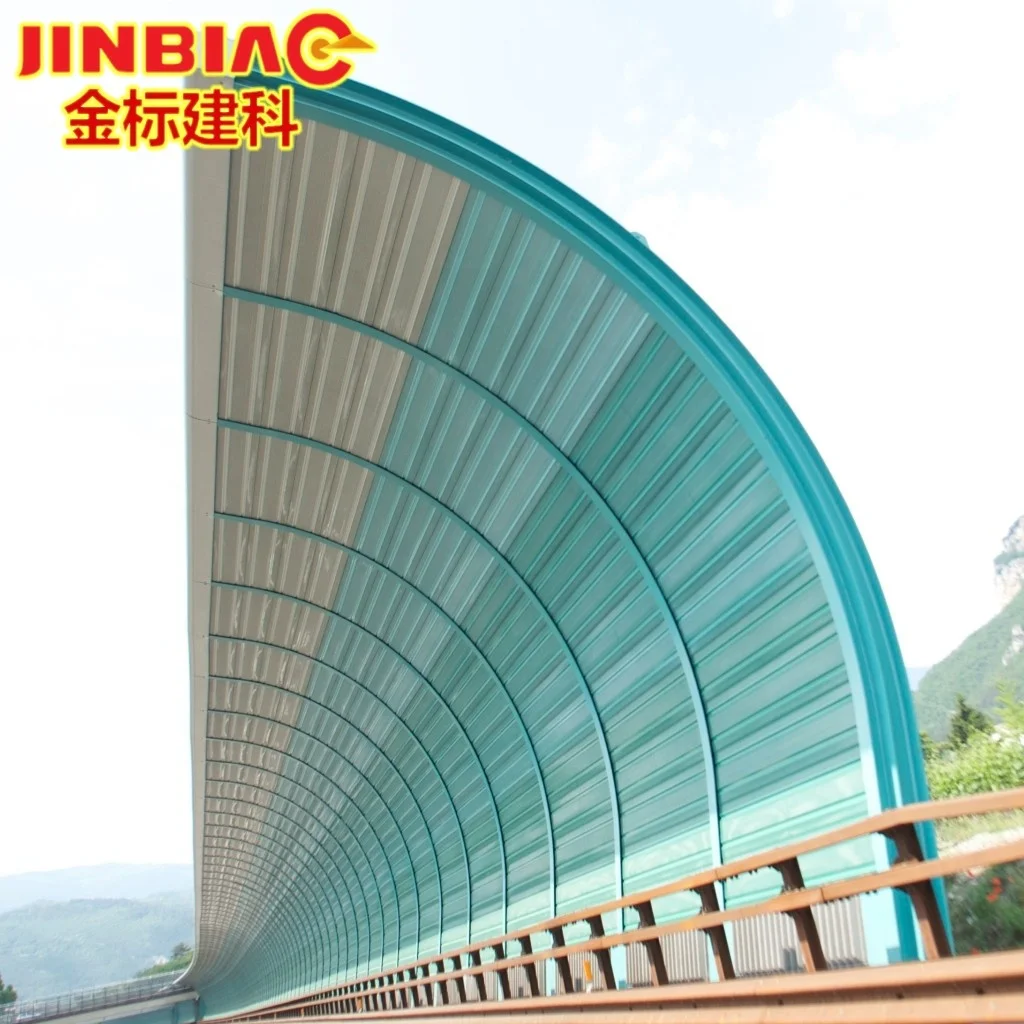

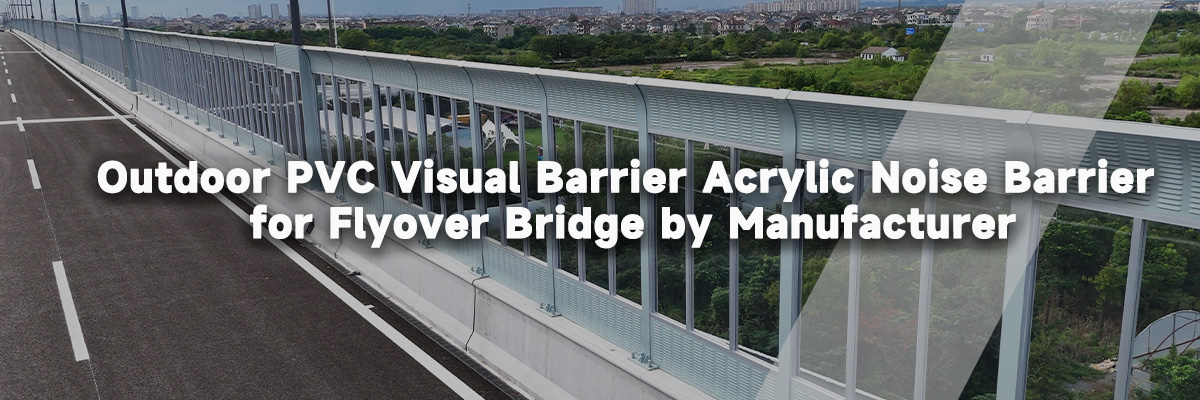

JINBIAO Visual Noise Barrier

JINBIAO visual barrier for traffic and residential are made of aluminum or galvanized metal and fulfill eco-friendly natural plant fiber as well as acrylic plexiglass. The panels range from one-sided or double-sided highly absorbing quality and are also available in transparent design. The high quality and UV-resistant powder coating gives an appealing appearance to the JINBIAO sound barrier for traffic and residential.

Products Description

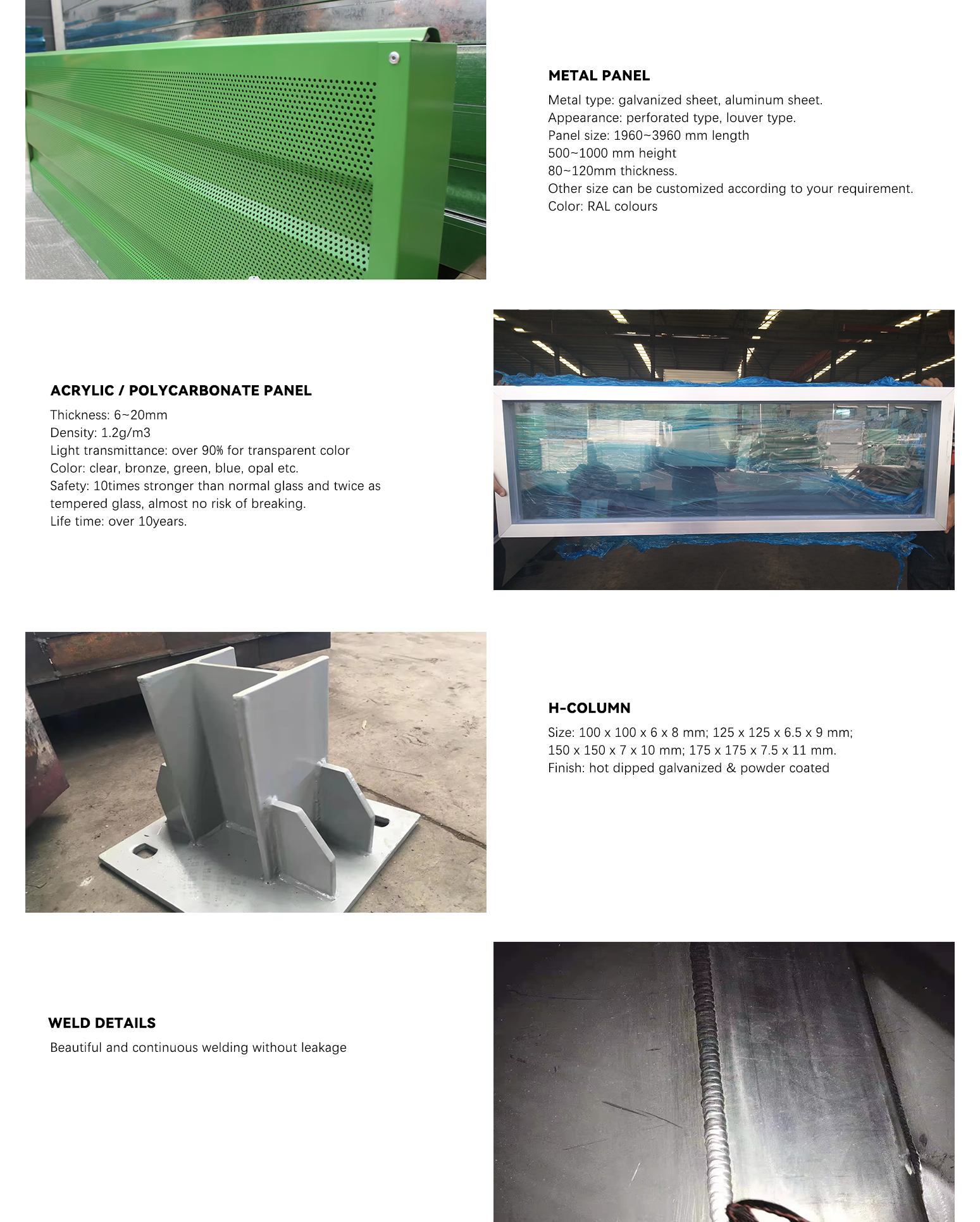

product bv certified outdoor pvc visual barrier acrylic noise barrier for flyover bridge by manufacturer855-3

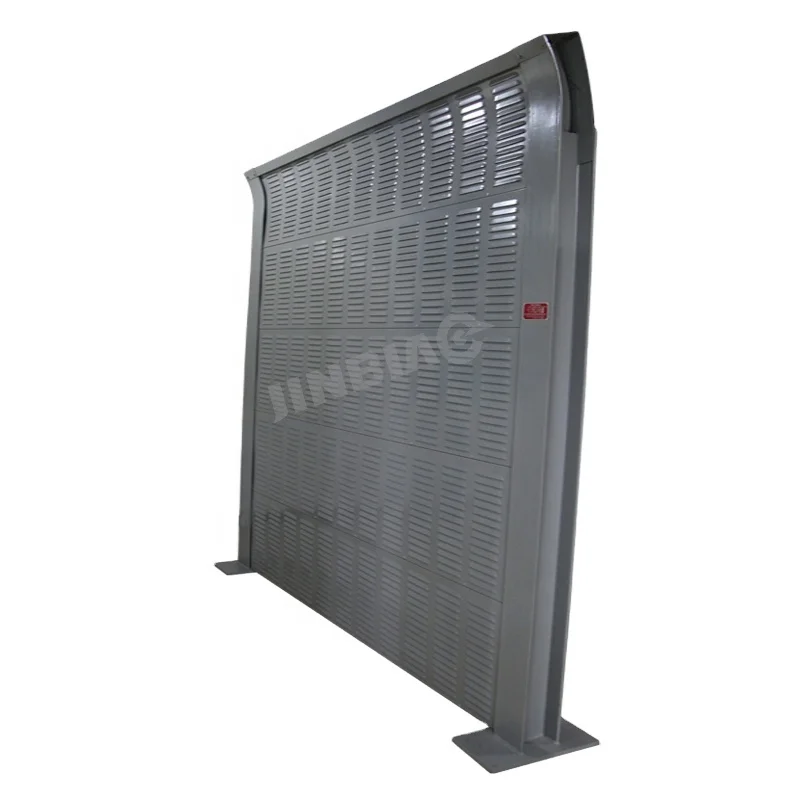

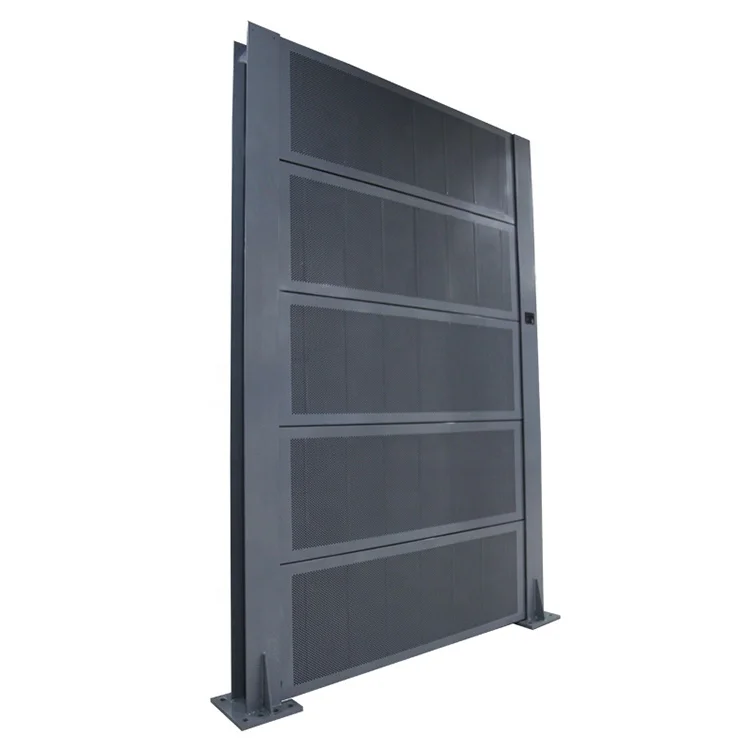

Metal panel

Metal type: galvanized sheet, aluminum sheet.
Appearance: perforated type, louver type.

Panel size: 1960~3960 mm length

500~1000 mm height

80~140 mm thickness.

Other size can be customized according to your requirement.

Color: Ral colours

product bv certified outdoor pvc visual barrier acrylic noise barrier for flyover bridge by manufacturer855-4

Acrylic / Polycarbonate panel

Thickness: 6~20mm

Density: 1.2g/m³

Light transmittance: over 90% for transparent color

Color: clear, bronze, green, blue, opal etc.

Safety: 10times stronger than normal glass and twice as tempered glass, almost no risk of breaking.

Life time: over 10years.

product bv certified outdoor pvc visual barrier acrylic noise barrier for flyover bridge by manufacturer855-5

H-column

Size: 100 x 100 x 6 x 8 mm; 125 x 125 x 6.5 x 9 mm; 150 x 150 x 7 x 10 mm, 175 x 175 x 7.5 x 11 mm. etc

Finish: hot dipped galvanized & powder coated

product bv certified outdoor pvc visual barrier acrylic noise barrier for flyover bridge by manufacturer855-6

Weld details

Beautiful and continuous welding without leakage

Product Paramenters

product bv certified outdoor pvc visual barrier acrylic noise barrier for flyover bridge by manufacturer855-7

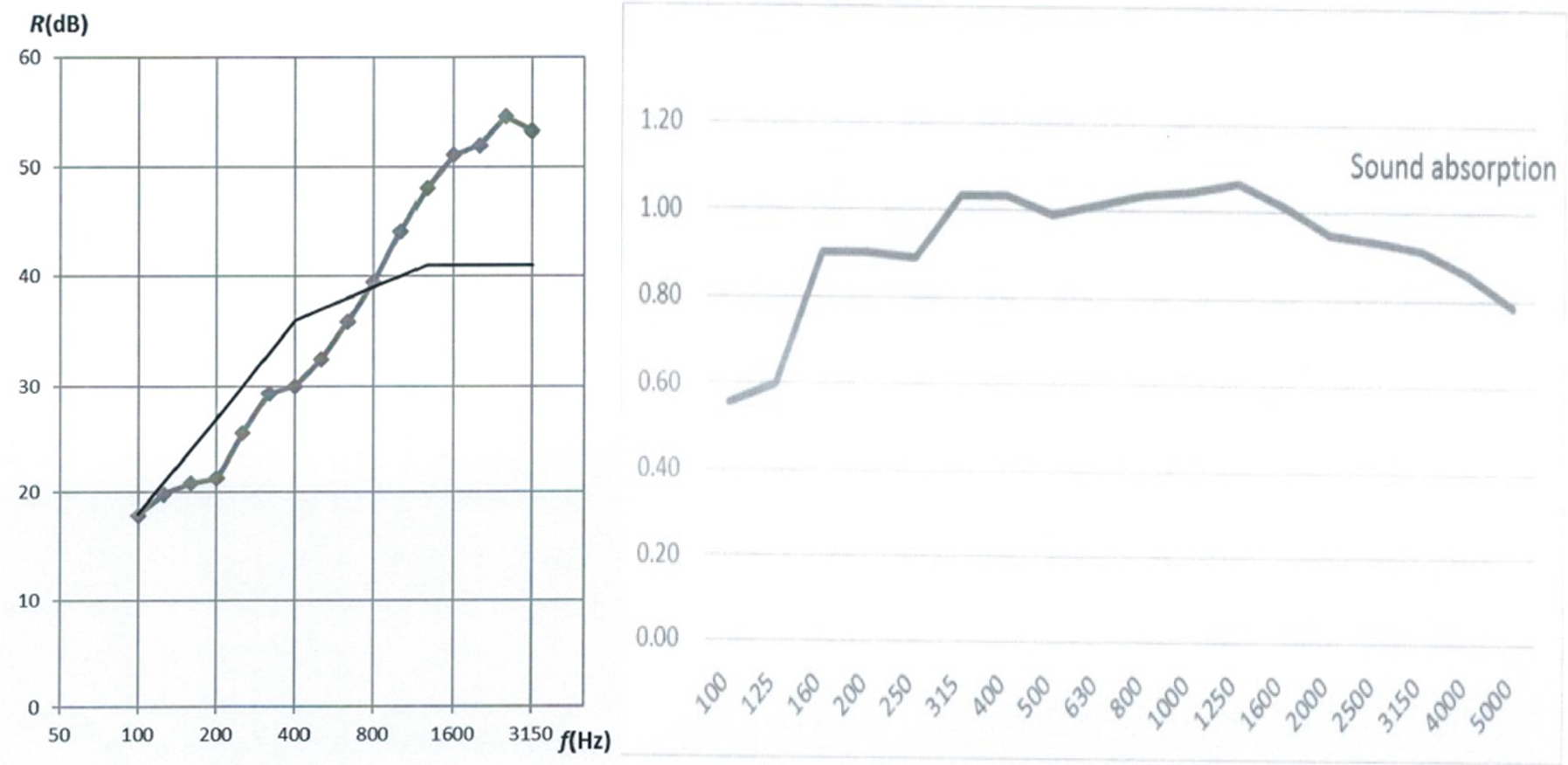

JINBIAO Noise Reduction Coefficient

0.97 Tested by TUV

product bv certified outdoor pvc visual barrier acrylic noise barrier for flyover bridge by manufacturer855-8

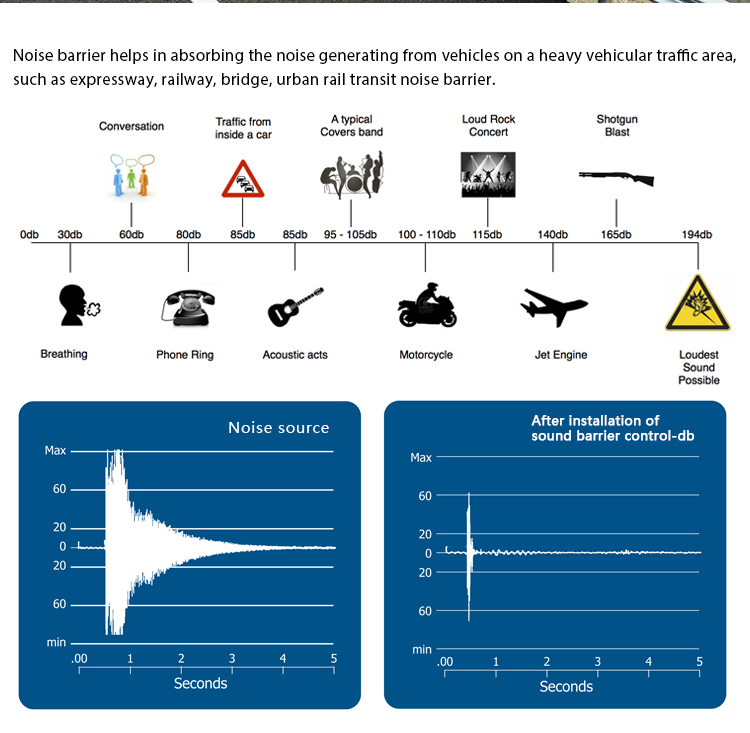

JINBIAO Sound Transmission Class

37dB test by TUV

product bv certified outdoor pvc visual barrier acrylic noise barrier for flyover bridge by manufacturer855-9

product bv certified outdoor pvc visual barrier acrylic noise barrier for flyover bridge by manufacturer855-10

Our Advantages

* Highly absorptive noise barrier system
* Easy installation or maintenance replacement
* Can be incorporated with other materials
* Can be easily relocated

* Minimum repair required only damaged panels to be replaced

* Fits standard support post systems
* Standard/custom modular sizes
* Manufacturing is consistent
* Custom panel sizes and shapes
* Choice of colours
* Framed clear or coloured acrylic
* Pre-printed graphics
* Using security cables on bridges and slopes are at lower risk
* Fire resistant
* Maintenance free
* Low life cycle costs
* Factory applied Anti-graffiti coating
