Product Description

product anping woven hex gabion material basket mesh box zinc coated underwater seawall protect welding competitive chain link mesh box-1

Product Description

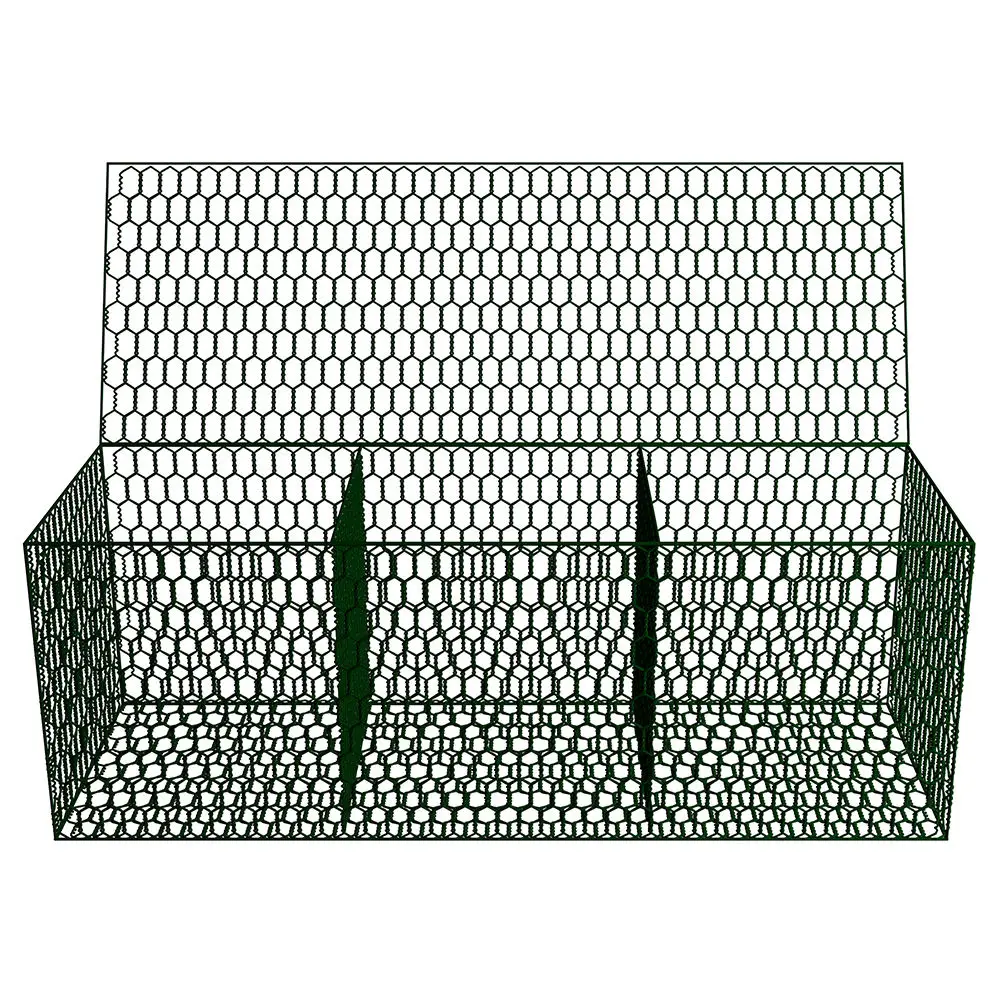

Gabion basket by high corrosion resistance, high strength, ductility of low carbon steel wire or coated PVC steel wire using mechanical weaving, the use of the net made of the box structure is gabion basket.

Gabion Mesh
Mesh Size (mm)	Number of Diaphragm	Approximate dimensions and Volumes							Tolerance	Color	Wire diameter (mm)
Mesh Size (mm)	Number of Diaphragm			Length (m)	Width (m)	Height (m)	Height (m)		Tolerance	Color	Wire diameter (mm)
6080 80100 80120 100120 120*150	1	2.0	1.0	0.3	0.6	Length±5% Width±5% Height±5%	Blue Red Green Black	2.0-4.0
		1	2.0	1.0	0.5				1.0
		1	2.0	1.0	1.0				2.0
		2	3.0	1.0	0.3				0.9
		2	3.0	1.0	0.5				1.5
		2	3.0	1.0	1.0				3.0
		3	4.0	1.0	0.3				1.2
		3	4.0	1.0	0.5				2.0
		3	4.0	1.0	1.0				4.0
		1	2.0	0.5	0.5				0.5
		2	3.0	0.5	0.5				0.75
customized	If there are other specifications or troubles! Please contact us!

product anping woven hex gabion material basket mesh box zinc coated underwater seawall protect welding competitive chain link mesh box-2

Material introduction:(1)Galvanized steel wire: high quality low carbon steel wire, the diameter of the steel wire2.0MM-4.0MM, the tensile strength of the steel wire is not less than 380Mpa, the surface of the steel wire is protected by hot dip galvanizing, the thickness of the galvanized protective layer is made according to customer requirements, and the maximum amount of galvanizing can reach 300g/m2. (2) Zinc-5% aluminum (10% aluminum)-mixed rare earth alloy steel wire: ( also called Golfan) steel wire, which is an international emerging a new material, corrosion resistance is more than 3 times that of traditional pure galvanized, the diameter of the steel wire can reach 1.0MM-3.0MM, the tensile strength of the steel wire is not less than 1380Mpa. (3) Galvanized steel wire coated: high-quality low carbon steel wire, a layer of PVC protective layer on the surface of the steel wire, and then woven into various specifications of hexagonal nets. This layer of PVC protective layer will greatly increase the protection in the highly polluted environment, and through the choice of different colors, it can be integrated with the surrounding environment.

If you have any questions, please contact us!

product anping woven hex gabion material basket mesh box zinc coated underwater seawall protect welding competitive chain link mesh box-3

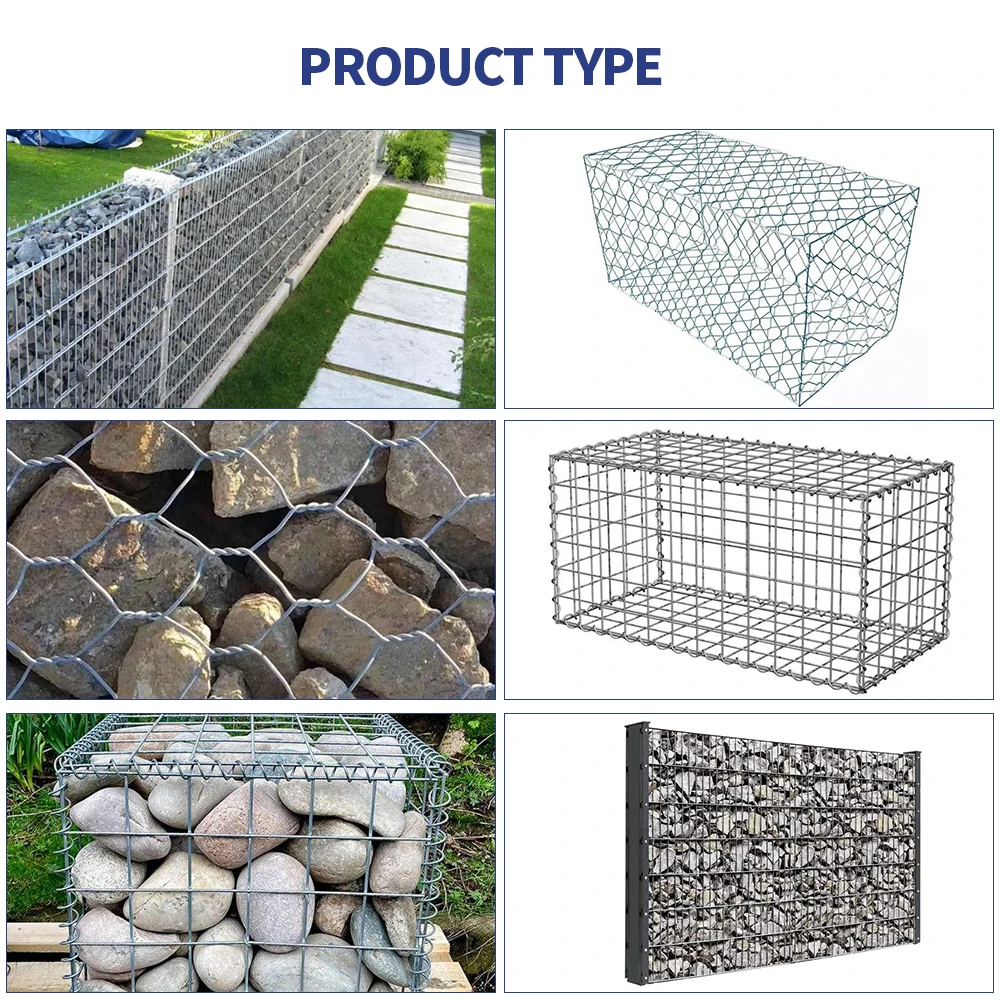

Gabion Basket Specifications: 2mx 1mx 1m, 3mx 1m x 1m, 4m x 1mx 1m, 2m x 1m x 0.5m, 4mx 1m x 0.5m, etc. Can also be produced according to customer requirements. The surface protection state is hot dip galvanized, galvanized aluminum alloy, coated PVC and so on. Hole Size: 60*80mm,80*100mm,100*120mm,etc. The length of the double-wire twisted part shall not be less than 50mm to ensure that the metalcoating and PVC coating of the twisted part of the steel wire are not damaged. Wire Diameter: Stone cage mesh is divided into three kinds of wire diameter - mesh wire, edge wire, tie wire. The range of the mesh wire is 2mm-4mm. The edge wire is generally larger than the net wire, 0.5-1.0mm thicker than the net wire. The binding wire is generally smaller than the mesh wire, and the most common is 2.2mm. Wire Tension: Not less than 38kg/m2 380N/mm.

product anping woven hex gabion material basket mesh box zinc coated underwater seawall protect welding competitive chain link mesh box-4

product anping woven hex gabion material basket mesh box zinc coated underwater seawall protect welding competitive chain link mesh box-5

product anping woven hex gabion material basket mesh box zinc coated underwater seawall protect welding competitive chain link mesh box-6

product anping woven hex gabion material basket mesh box zinc coated underwater seawall protect welding competitive chain link mesh box-7

product anping woven hex gabion material basket mesh box zinc coated underwater seawall protect welding competitive chain link mesh box-8

product anping woven hex gabion material basket mesh box zinc coated underwater seawall protect welding competitive chain link mesh box-9

product anping woven hex gabion material basket mesh box zinc coated underwater seawall protect welding competitive chain link mesh box-10

product anping woven hex gabion material basket mesh box zinc coated underwater seawall protect welding competitive chain link mesh box-11
