1 Product description Powder coated anti-climb 358 decorative steel security fence
specification for 358 Security System
MESH |
PANELS |
POST |
||||
Wire |
Opening |
Height*Width |
Section |
O/A Length |
Total Number of Fixings |
|
mm |
mm |
mm |
mm |
mm |
Inters-1 Clamp Bar |
Comers-2 Clamp Bar |
4 |
12.7*76.2(3"*1/2") |
2007*2515 |
60*60*2.5 |
2700 |
7 |
14 |
4 |
12.7*76.2(3"*1/2") |
2004*2515 |
60*60*2.5 |
3100 |
9 |
18 |
4 |
12.7*76.2(3"*1/2") |
2997*2515 |
80*80*2.5 |
3800 |
11 |
22 |
4 |
12.7*76.2(3"*1/2") |
3302*2515 |
80*80*2.5 |
4200 |
12 |
24 |
4 |
12.7*76.2(3"*1/2") |
3607*2515 |
100*60*3 |
4500 |
13 |
26 |
4 |
12.7*76.2(3"*1/2") |
3607*2515 |
100*100*3 |
4500 |
13 |
26 |
specification for 358 Maximum Security System
MESH |
PANELS |
POST |
||||
Wire |
Opening |
Height*Width |
Section |
O/A Length |
Total Number of Fixings |
|
mm |
mm |
mm |
mm |
mm |
Inters-1 Clamp Bar |
Comers-2 Clamp Bar |
4 |
12.7*76.2(3"*1/2") |
4204*2515 |
100*100*4 |
5200 |
15 |
30 |
4 |
12.7*76.2(3"*1/2") |
4496*2515 |
100*100*5 |
5500 |
16 |
32 |
4 |
12.7*76.2(3"*1/2") |
5207*2515 |
120*120*5 |
6200 |
18 |
36 |

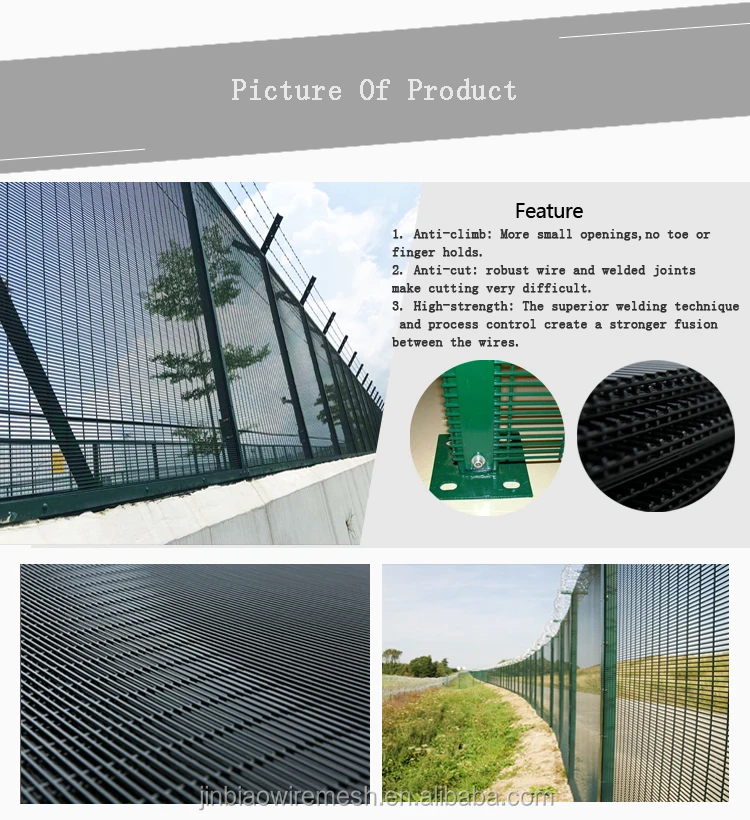

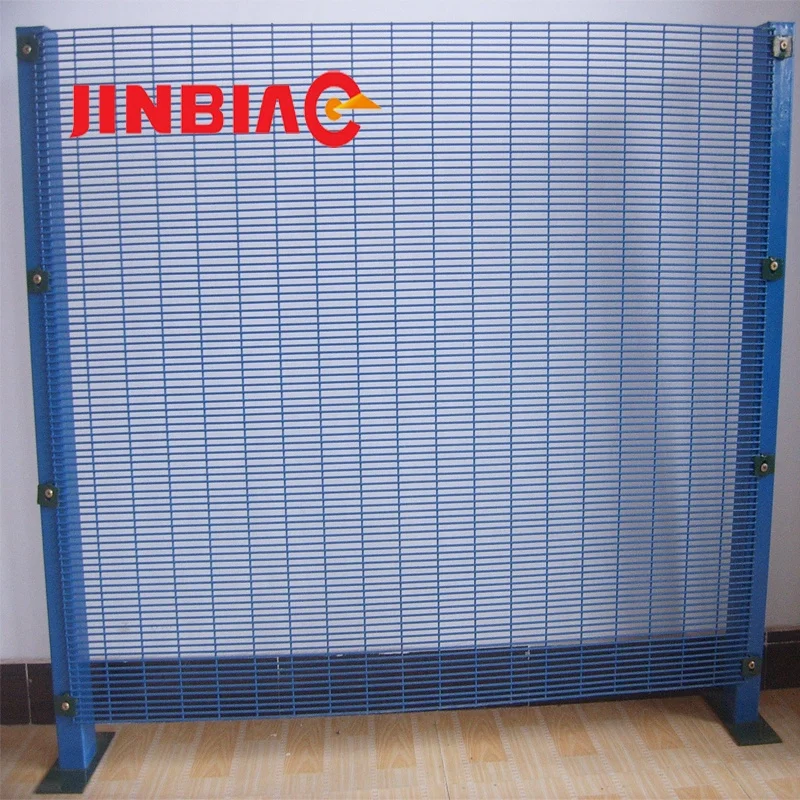

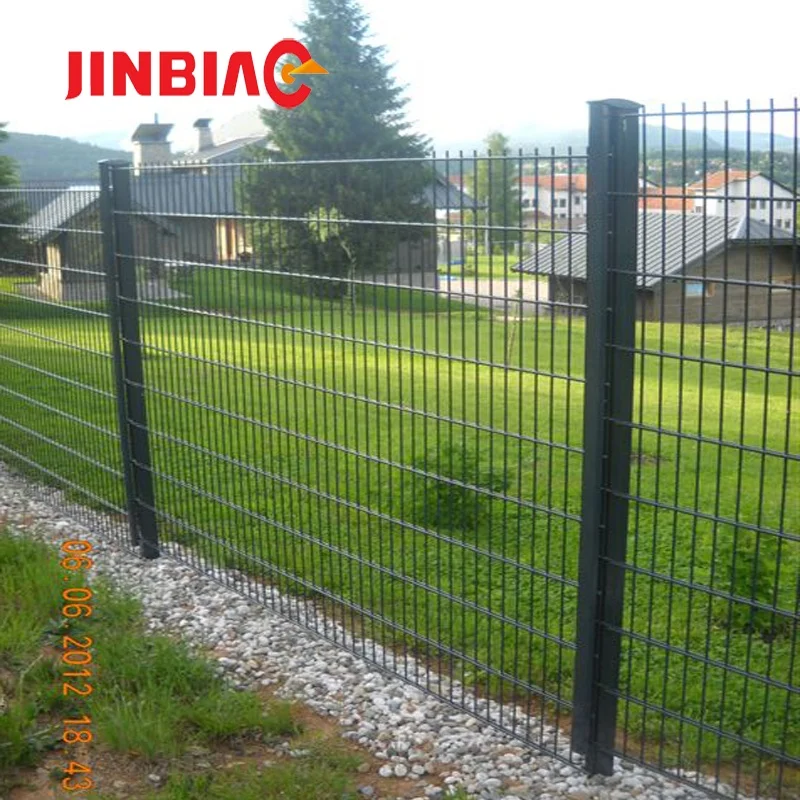

2 product show about Powder coated anti-climb 358 decorative steel security fence

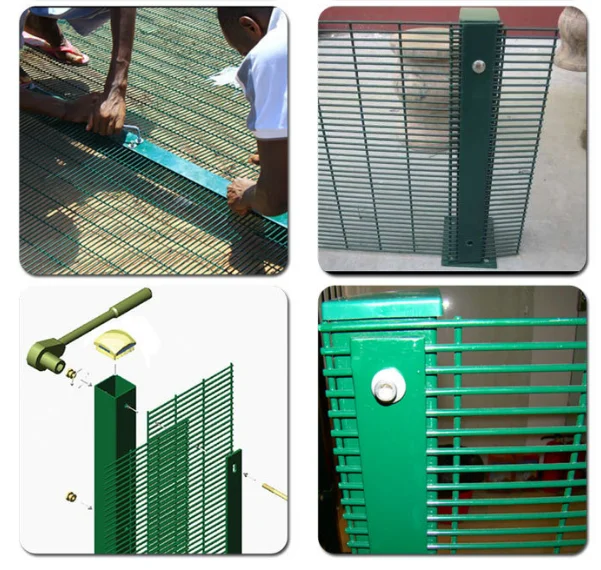

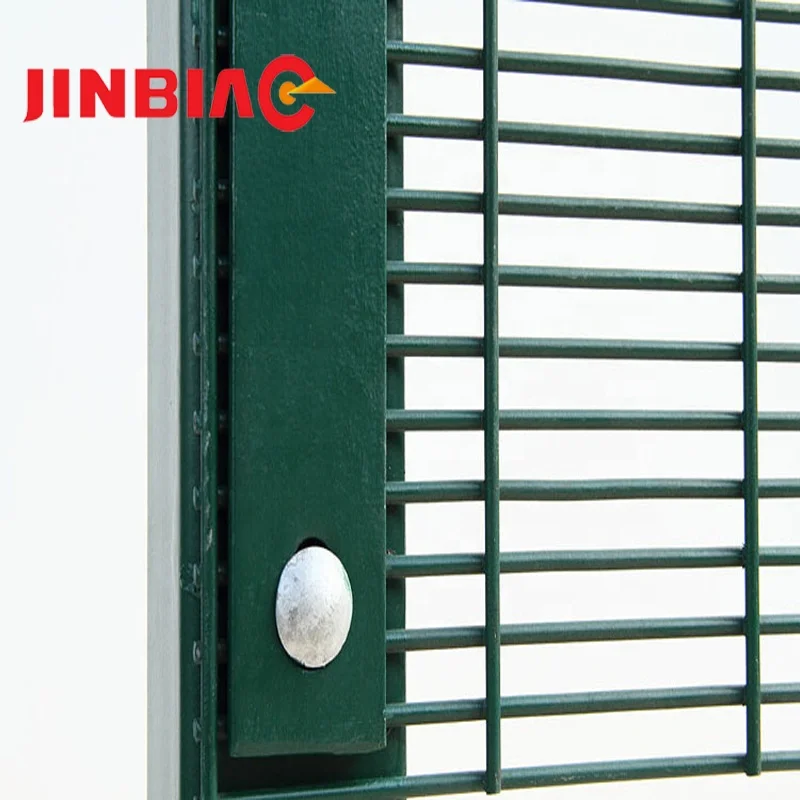

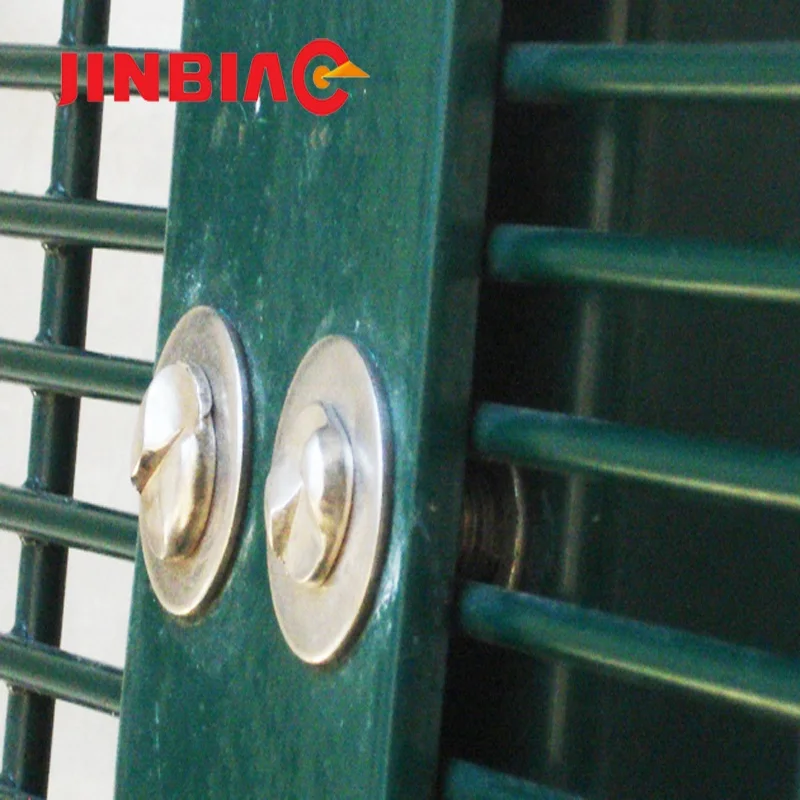

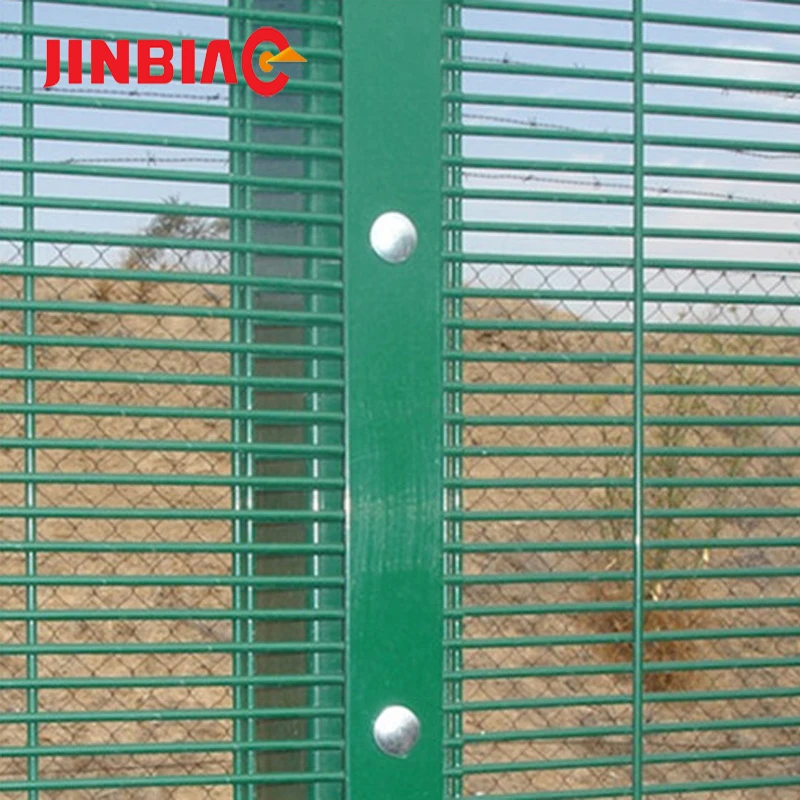

3 the details of the Powder coated anti-climb 358 decorative steel security fence

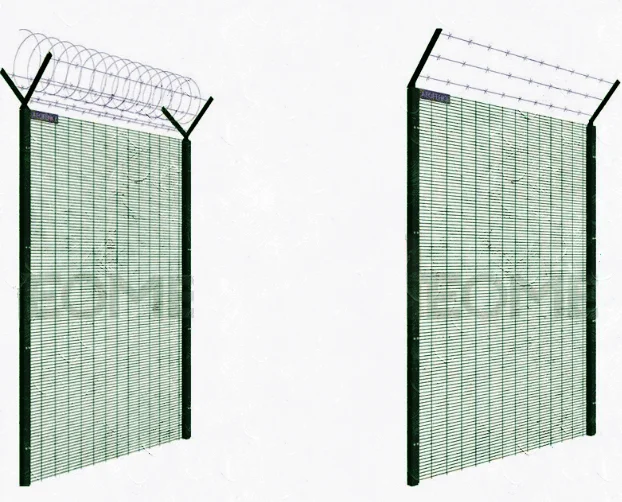

4 Different combination styles

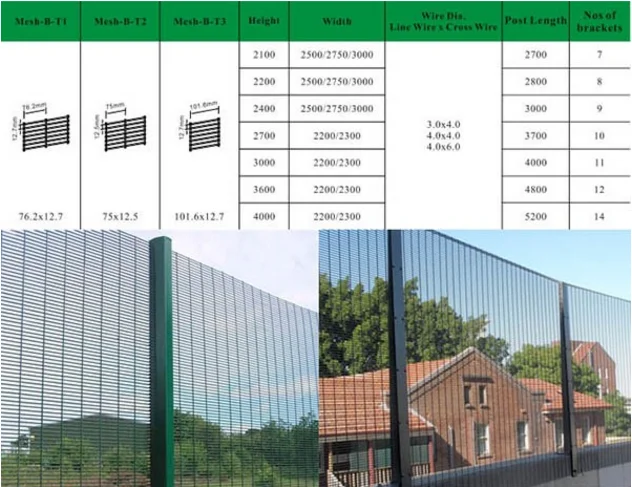

1) Normal Standard Type : 2D Mesh Panel + Square Post
*Panel 1 : 76.28mm X 12.70mm
*Panel 2: 75.00mm X 12.50mm
*Panel 3: 101.6mm X 12.70mm
>Height : 2100mm/2200mm...~4000mm .
>Width : 2000mm/2200mm/2500mm~3000mm.

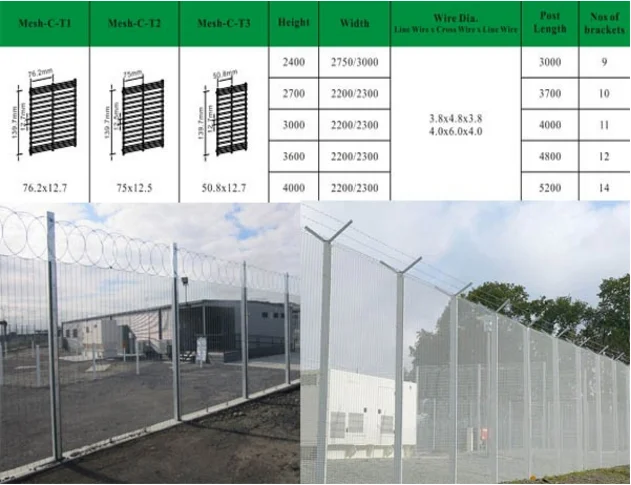

2) 2D Mesh Panel + Razor Wire
*Panel 1 : 76.28mm X 12.70mm
*Panel 2: 75.00mm X 12.50mm
*Panel 3: 50.80mm X 12.70mm
>Height : 2400mm/2700mm...~4000mm .
>Width : 2200mm/2300mm/2750mm~3000mm.

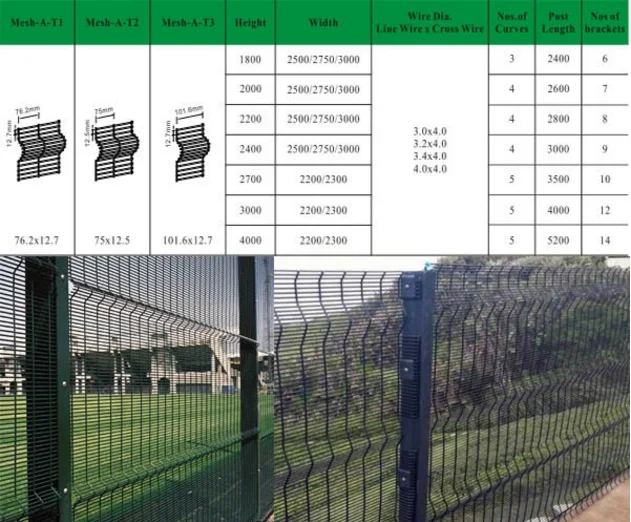

3)3D Mesh Panel With V-Bend Curves .
*Panel 1 : 76.28mm X 12.70mm
*Panel 2: 75.00mm X 12.50mm
*Panel 3: 101.60mm X 12.70mm
>Height : 1800mm/2000mm...~4000mm .
>Width : 2200mm/2300mm/2750mm~3000mm.
4) Razor Wire And Angle Arm
> V-top : Including angle iron, barbed wire, razor barbed wire

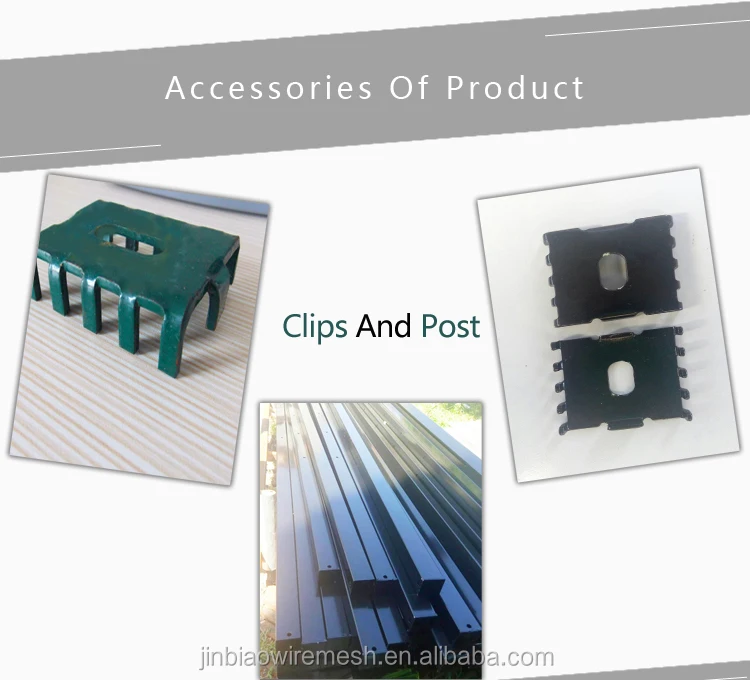

> Fastener: flat bar, screw, clamp
5 the surface treatment about Powder coated anti-climb 358 decorative steel security fence

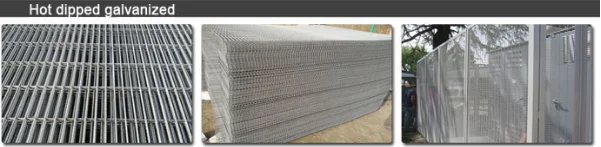

1)Hot dipped galvanized
Hot-dip galvanizing is the process of dipping fabricated steel in a bath of molten zinc to
form a tightly-bonded alloy coating that provides superior corrosion protection to steel.
Advantages of Hot Dip Galvanizing
*More cost effective for long term
*Long service life
*Low maintenance
*Corrosion resistant - a protective coat of armor
*Less inspection required on job sites
*Self healing (scratches and cuts in coating)
2)Electro-galvanized and Powder coated
Electric galvanizing takes place before manufacture the product. This generally results in a better appearance.
Powder coating is a dry finishing method in which electrically charged particles of pigmented resins are
sprayedonto a product, makes the product become colorful. We can do powder coated based on RAL color card.
Advantages of Electro-galvanized and Powder coated
*Economics
*Safety
*Environmental
*Saves money
*Elegant appearance

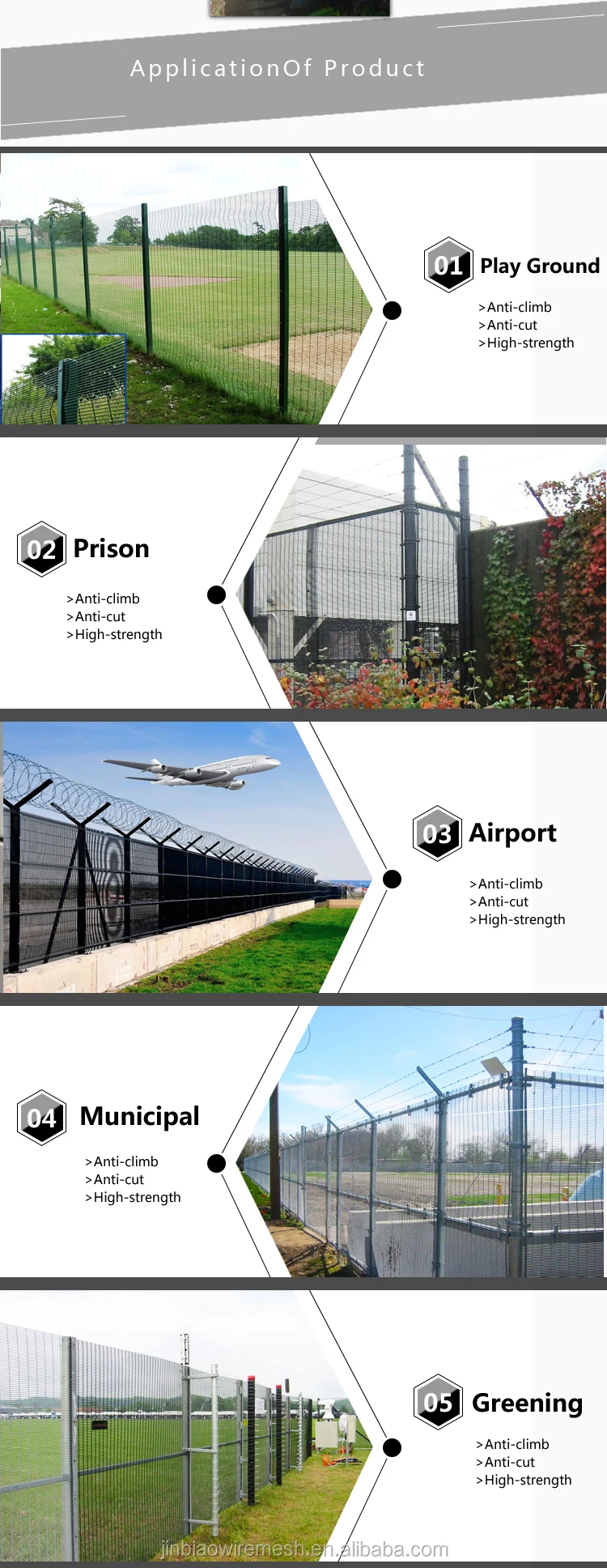

6 the application about Powder coated anti-climb 358 decorative steel security fence
7 Company information
Hebei Jinbiao Construction Materials is founded in 1986 specializing in the production of construction material. Our factory occupies more than 800,000m2 area, with more than 400 employees, 40 specialists, registered capital of RMB 60.4 million, reaching 500 million yuan of liquidity.In Shijiazhuang, 26 December 2014, the company was listed on the stock exchange, becoming the first locally listed company in the area, the products are also registered gold standard mesh, noise barrier and aluminium formwork brand. In the early 90's, Jinbiao passed ISO9001- 2000 quality certification including the "AAA grade quality certification","Hebei province outstanding enterprises","trusted enterprise","safe production"and other certification honors.
Fence products
Since the 90's, the company started in fence production and processing. After 20 years of development and growing scale, we are approved as among the best in the industry, technology, production technology and production equipment by leading specialists in the field. Jinbiao has obtained Fence factory inspection certificates, national traffic safety testing, product production certificate and other certificates. We produce over 18km of fencing, over 20 tons of barbed wire daily.
Noise barrier products
Since the 80's, we entered the sound barrier industry, our company integrates highspeed noise barrier system, railway noise barrier system, noise barriersystem and aluminium formwork structure production. The company has sound barrier panel punched andbended, surface electrostatic spraying automatic submerged arc welding, H-post advanced automated production lines. Our productivity and quality of production ranks the first in the industry. We supply over 2000 m/sq noise barrier, 8000 m/lg h-post fabricationdaily.
