Product Features:
＞Excellent sound insulation and noise reduction performance

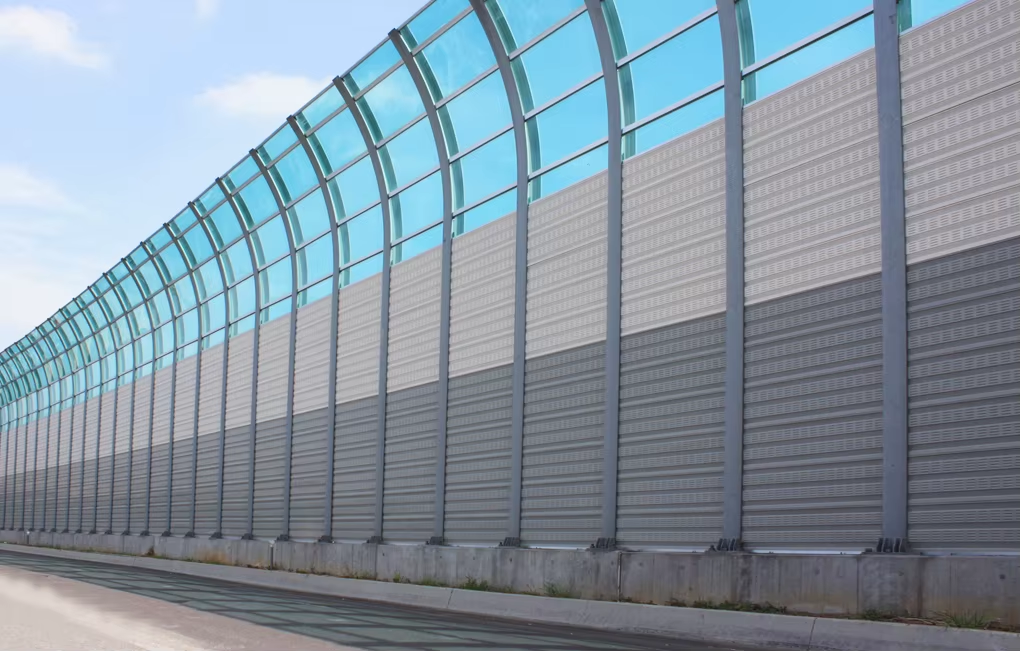

＞Combination of transparent and solid panels for both aesthetics and functionality
＞Weather-resistant, anti-corrosion, and UV-resistant
＞Strong structural stability with high wind resistance
＞Modular design for easy installation and maintenance

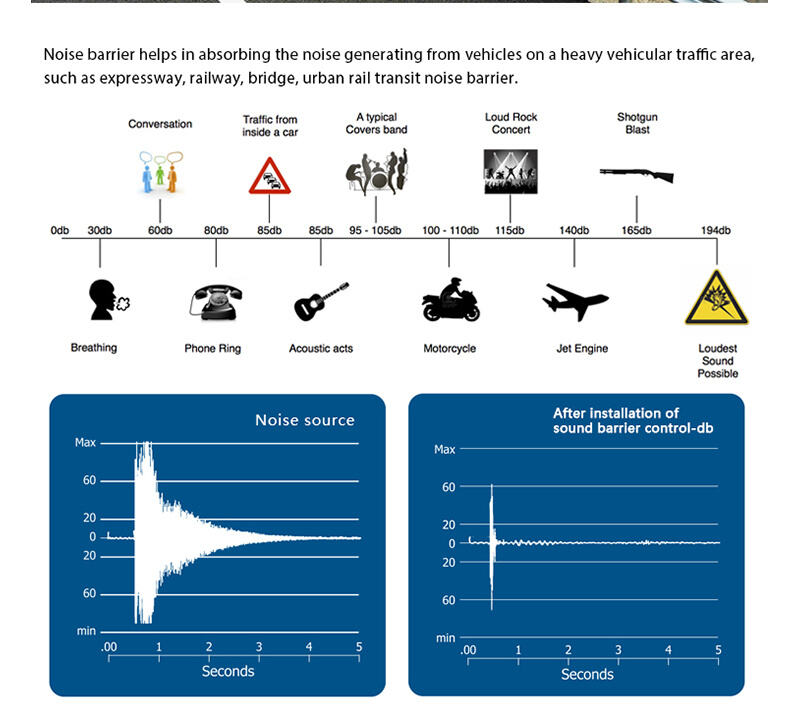

Noise pollution
In our times, noise is high among those pollution sources that most impair our quality of life. Ever more traffic, engendered by continually developing mobility, further aggravates the nuisance. Measures to shield us from such environmental burdens are thus
assuming increasing and crucial importance.

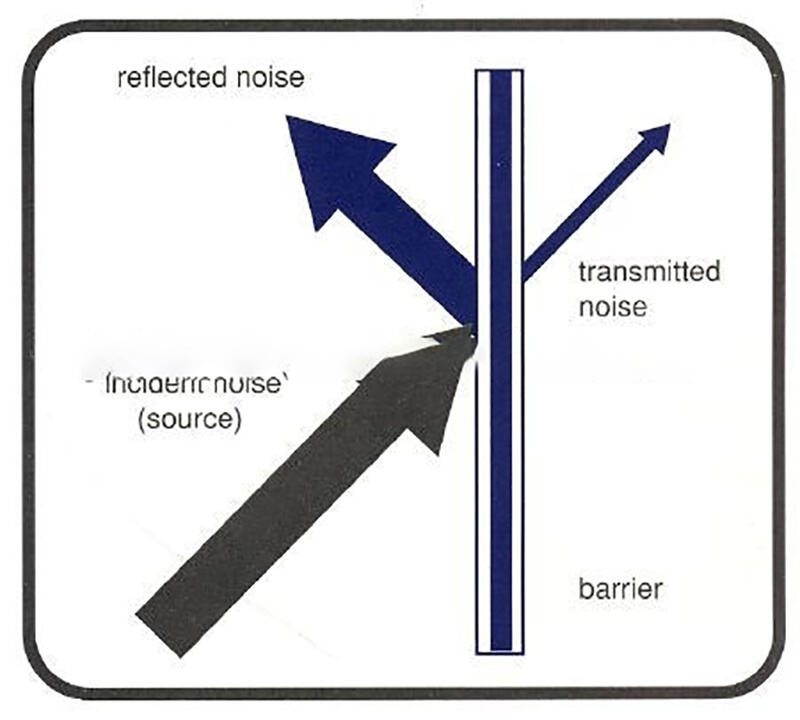

With a scientifically engineered acoustic structure, this sound barrier effectively blocks and absorbs traffic noise, significantly reducing sound transmission and creating a quieter, more comfortable environment for surrounding areas. The transparent acrylic panels offer excellent light transmission and impact resistance, ensuring effective noise control without obstructing visibility for drivers and pedestrians. This makes it especially suitable for projects requiring both acoustic performance and visual openness.
The PVC material provides outstanding weather resistance, UV protection, and corrosion resistance, enabling long-term stable performance under harsh environmental conditions such as high temperatures, humidity, rain, and snow. Its modular design allows for easy installation and convenient maintenance. Heights, colors, and specifications can be customized according to project requirements to meet different engineering standards and application needs.
METAL SHEET | ||||
PANEL HEIGHT |
PANEL LEHGTH |
SHEET THICKNESS |
SHEET THICKNESS |
PANEL TYPE |
0.5m |
2.0m |
80mm |
1.0-1.5mm |
shutter or perforated |
1.0m |
2.5m |
100mm |
||
3.0m |
||||
4.0m |
||||
PC/PMMA SHEET | ||||
PANEL HEIGHT |
HEIGHT |
SHEET THINCKNESS |
LIGHT TRANSMITTANCE |
|
0.5m |
2.0m |
80mm |
≥80% |
|
1.0m |
2.5m |
100mm |
||
1.5m |
3.0m |
|||
4.0m |
||||
SOUND BARRIER | ||||
TOTAL HEIGHT |
LENGTH |
RW |
NRC |
|
3.0m as standard |
2.0m |
≥30dB |
≥0.84 |
|
2.5m | ||||
3.0m | ||||
4.0m | ||||

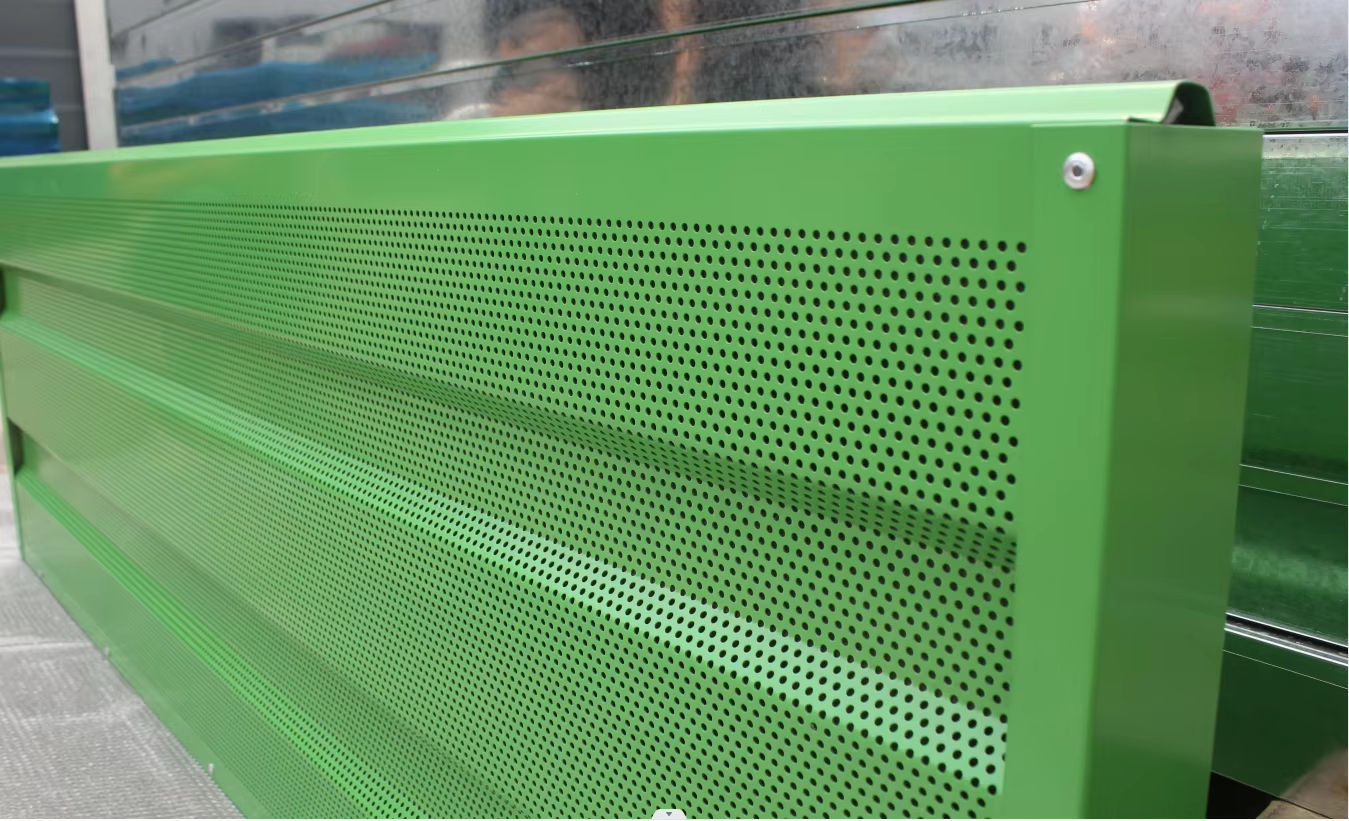

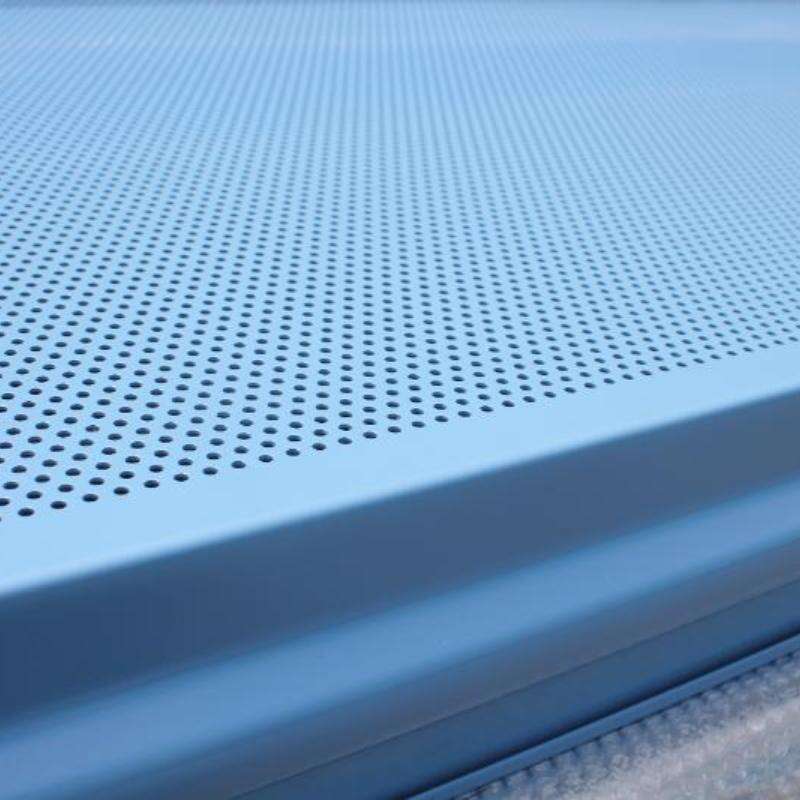

Metal panel
Metal type: galvanized sheet, aluminum sheet.
Appearance: perforated type, louver type.
Panel size: 1960~3960 mm length
500~1000 mm height
80~120mm thickness.
Other size can be customized according to your requirement.
Color: RAL colours

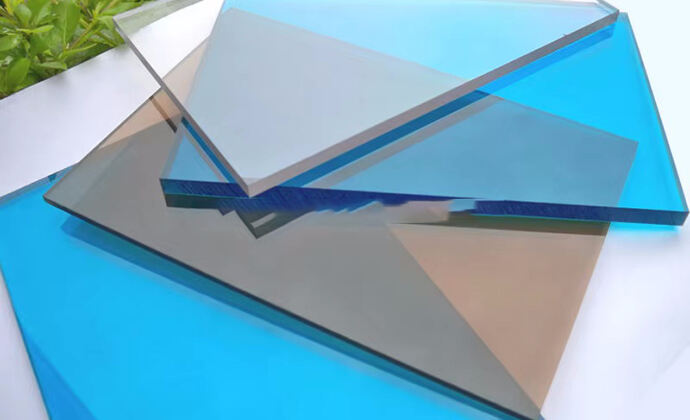

Acrylic / Polycarbonate panel
Thickness: 6~20mm
Density: 1.2g/m3
Light transmittance: over 90% for transparent color
Color: clear, bronze, green, blue, opal etc.
Safety: 10times stronger than normal glass and twice as tempered glass, almost no risk of breaking.
Life time: over 10years.

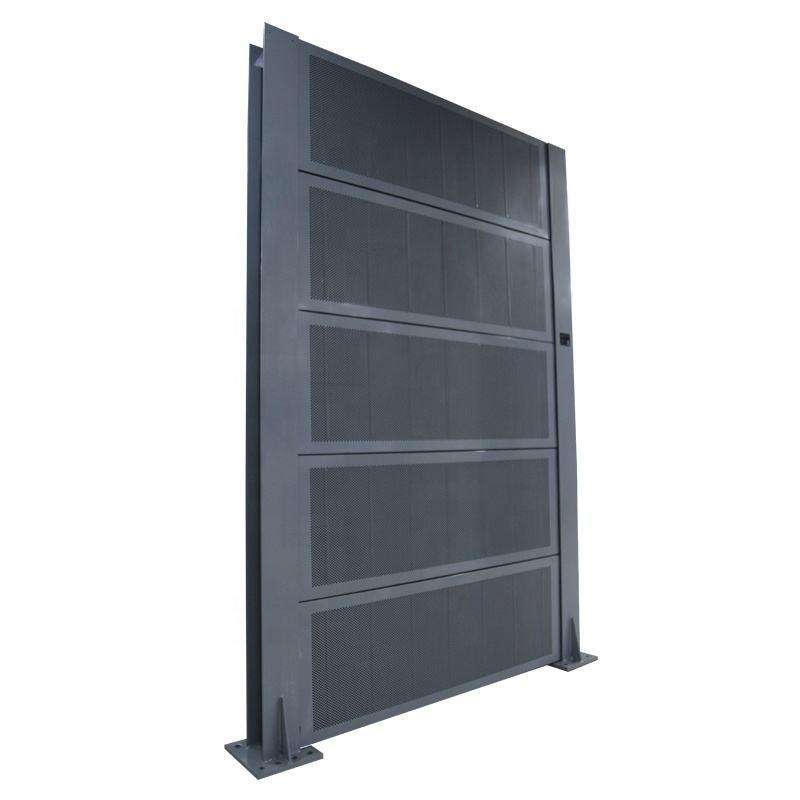

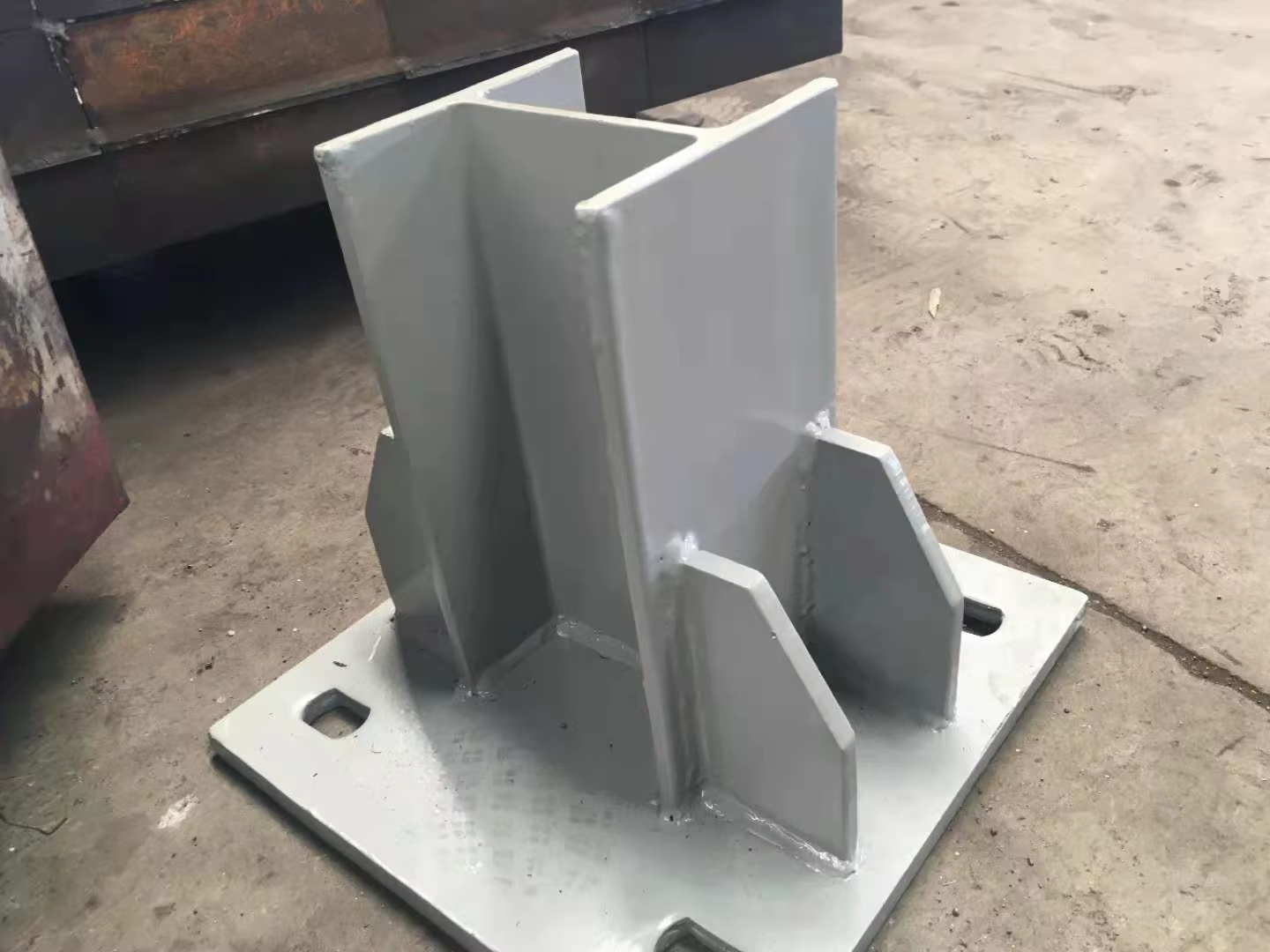

H-column
Size: 100 x 100 x 6 x 8 mm; 125 x 125 x 6.5 x 9 mm; 150 x 150 x 7 x 10 mm; 175 x 175 x 7.5 x 11 mm.
Finish: hot dipped galvanized & powder coated

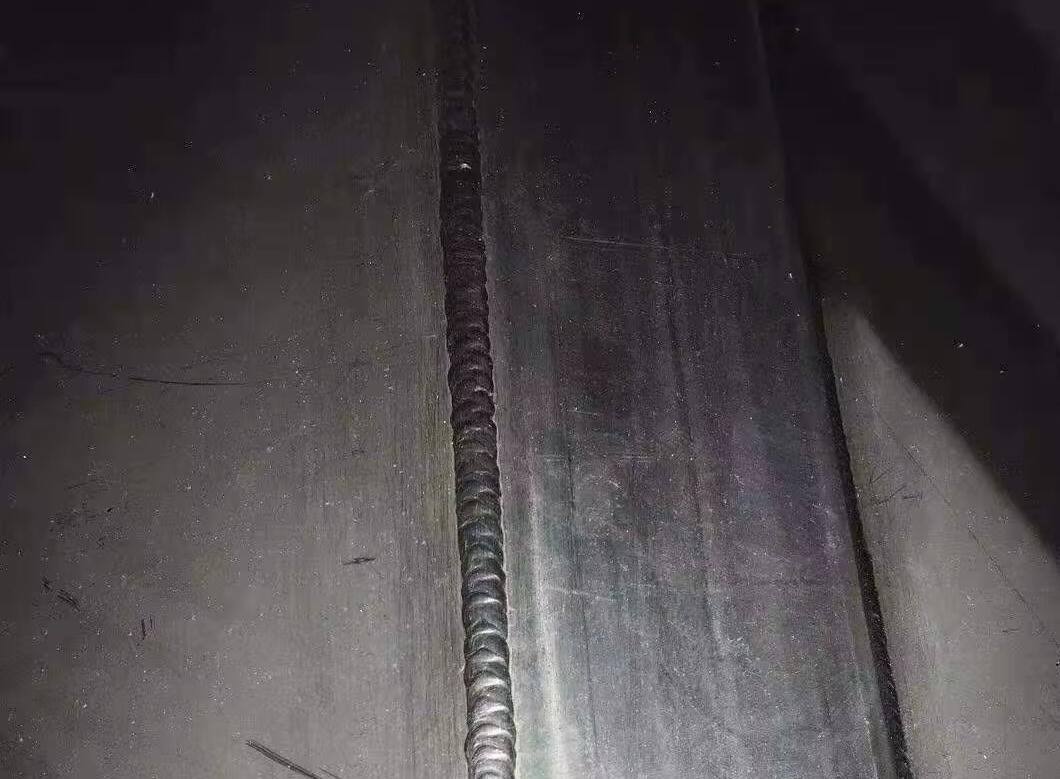

Weld details
Beautiful and continuous welding without leakage
JINBIAO Noise Reduction Coefficient
0.97 Tested by TUV

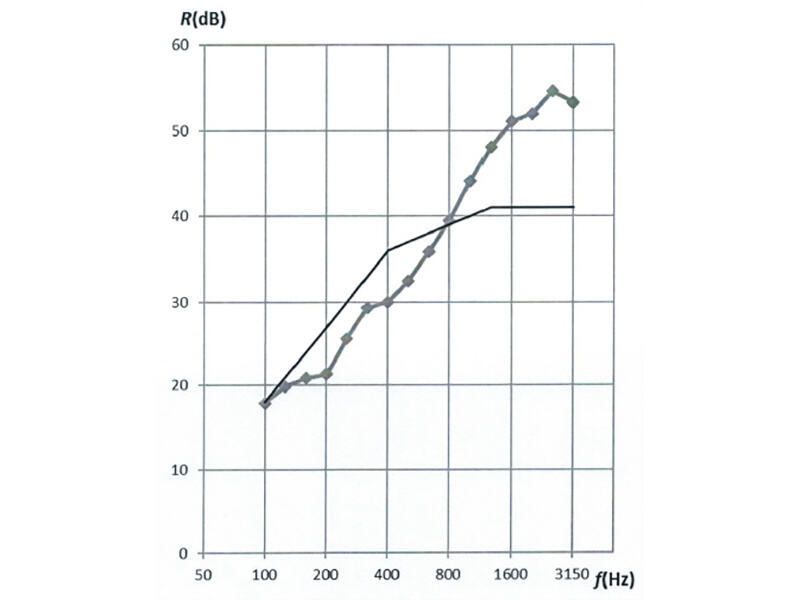

JINBIAO Sound Transmission Class
37dB test by TUV
* Highly absorptive noise barrier system
* Easy installation or maintenance replacement
* Can be incorporated with other materials
* Can be easily relocated
* Fits standard support post systems
* Standard/custom modular sizes
* Manufacturing is consistent
* Custom panel sizes and shapes
* Choice of colours
* Framed clear or coloured acrylic
* Pre-printed graphics
* Using security cables on bridges and slopes are at lower risk
* Fire resistant
* Maintenance free
* Low life cycle costs
* Factory applied Anti-graffiti coating
