Home > Products > Mesh Fence > Highway & Traffic Safety Fence

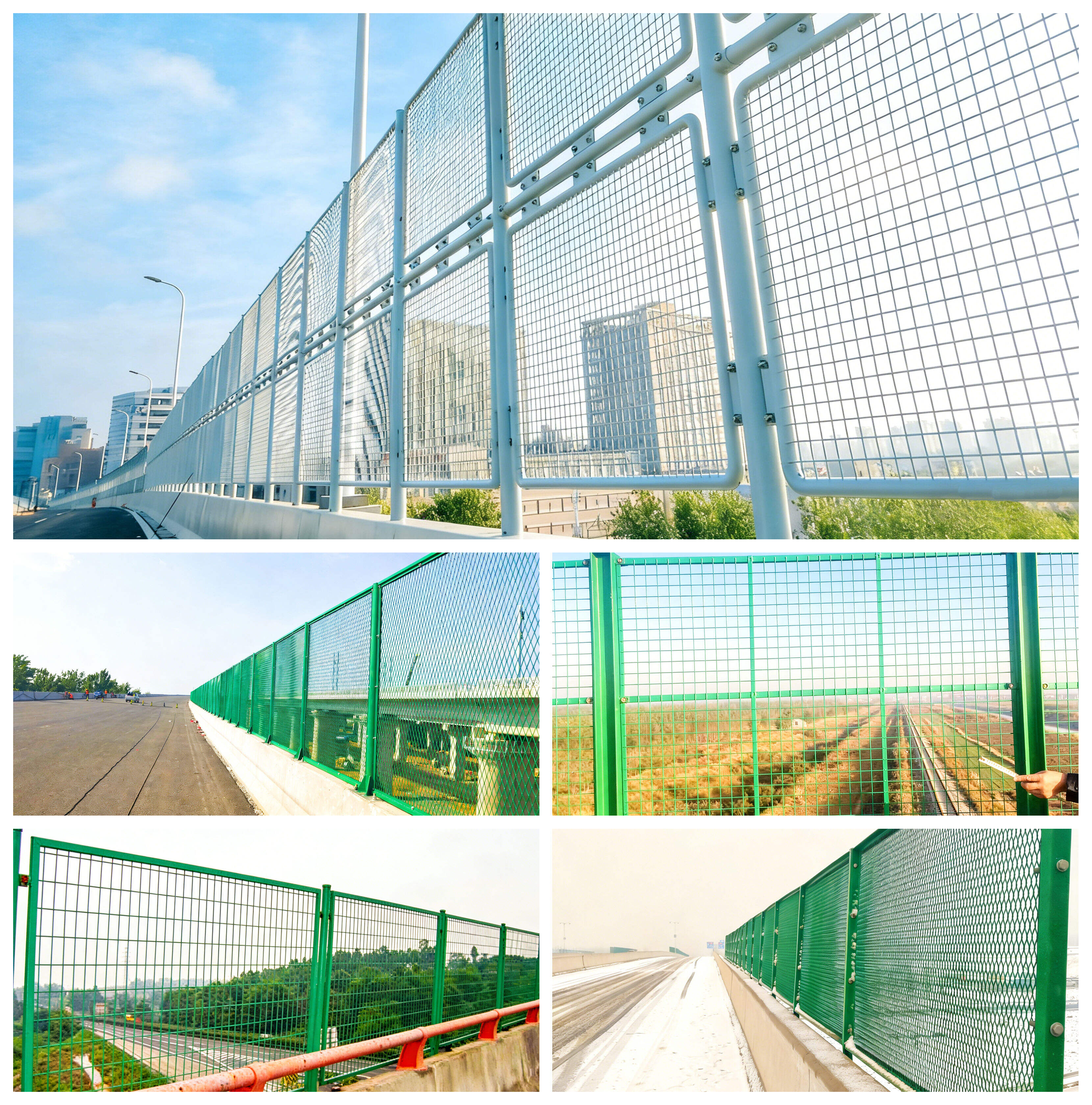

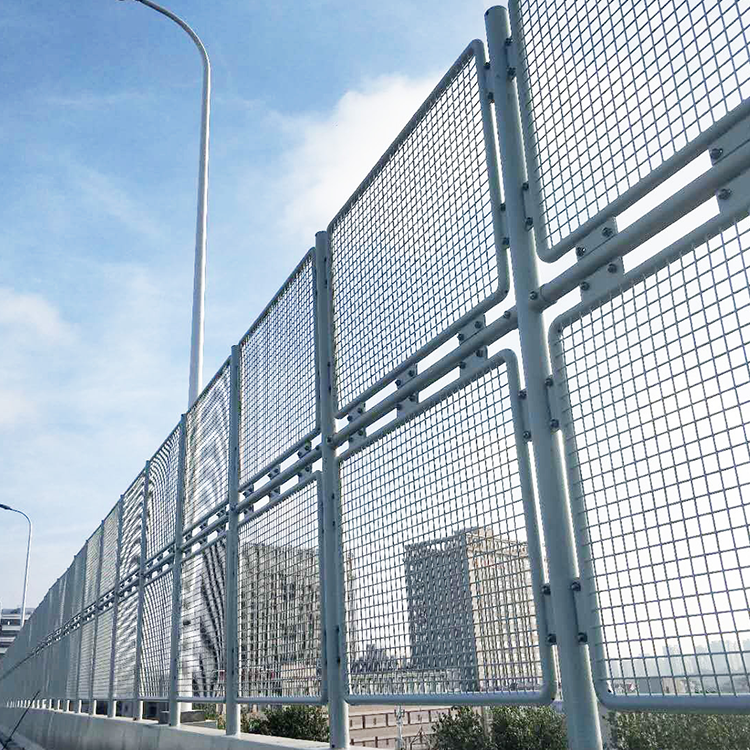

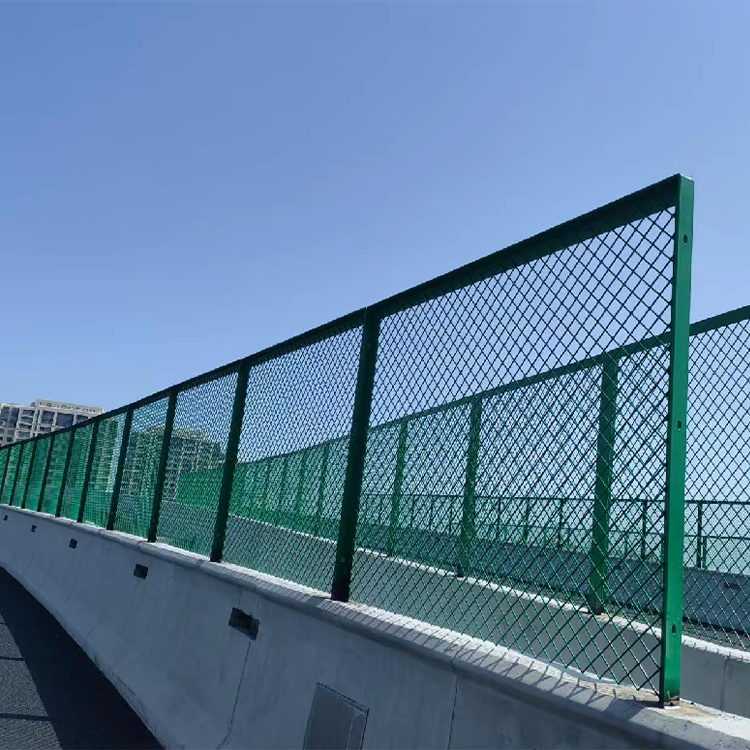

The Anti-Cast Net on Bridge is a high-performance safety protection system specifically designed for bridges, overpasses, pedestrian walkways, and elevated highways. It effectively prevents objects from being thrown from height, reducing risks to vehicles, pedestrians, and infrastructure below.
Engineered with durability and safety in mind, this system is widely used in urban transportation projects to enhance public safety and meet modern infrastructure protection standards.
| Item | Specification |
| Material | Low carbon steel wire / galvanized steel |
| Wire Diameter | 4.0mm – 6.0mm |
| Mesh Size | 50×50mm / 75×75mm / Customizable |
| Panel Height | 1.5m – 3.0m (Customizable) |
| Surface Treatment | Hot-dip galvanized / PVC coated |
| Color | Green, Grey, Black, Custom colors |
| Installation Method | Bolt-fixed or welded frame structure |
Anti-Cast Net Key Features
✅High-Level Safety Protection
Prevents intentional or accidental dropping/throwing of objects from bridges, ensuring safety for traffic and pedestrians below.
✅ Strong and Durable Structure
Manufactured from high-strength steel wire or welded mesh panels, offering excellent impact resistance and long-term stability.
✅ Weather & Corrosion Resistance
Hot-dip galvanized or powder-coated surface treatment ensures superior resistance to rust, UV exposure, and harsh environmental conditions.
✅ Anti-Climb Design
The mesh structure is designed to prevent climbing, enhancing bridge security and reducing unauthorized access.
✅ Customizable Design
Available in various heights, mesh sizes, and structural configurations to suit different bridge types and project requirements.

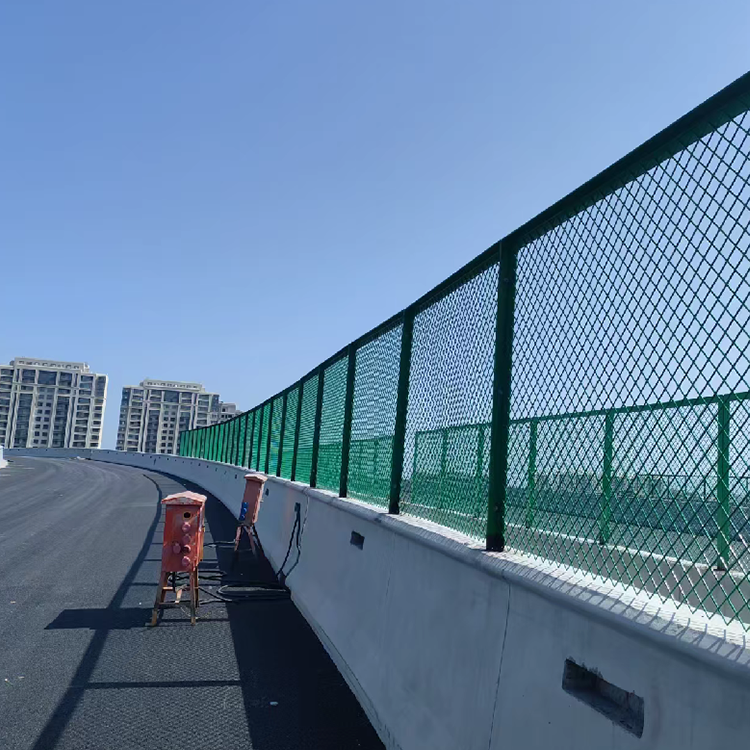

The anti-cast net system is typically installed on both sides of the bridge using steel posts and reinforced frames. It can be fixed by bolts or welding, depending on project requirements. The modular panel design allows for quick installation and easy maintenance.
Introduction to Common Styles
Q1: What is the main purpose of an anti-cast net on bridges?
A: It is designed to prevent objects from being thrown or falling from bridges, ensuring safety for people and vehicles below.
Q2: Can the size and height be customized?
A: Yes, all specifications can be tailored according to your project requirements.
Q3: Is the product suitable for coastal or high-humidity environments?
A: Yes, with hot-dip galvanization or PVC coating, it offers excellent corrosion resistance.
Q4: How long is the service life?
A: Typically 10–20 years depending on environmental conditions and surface treatment.
